Product Details
＋

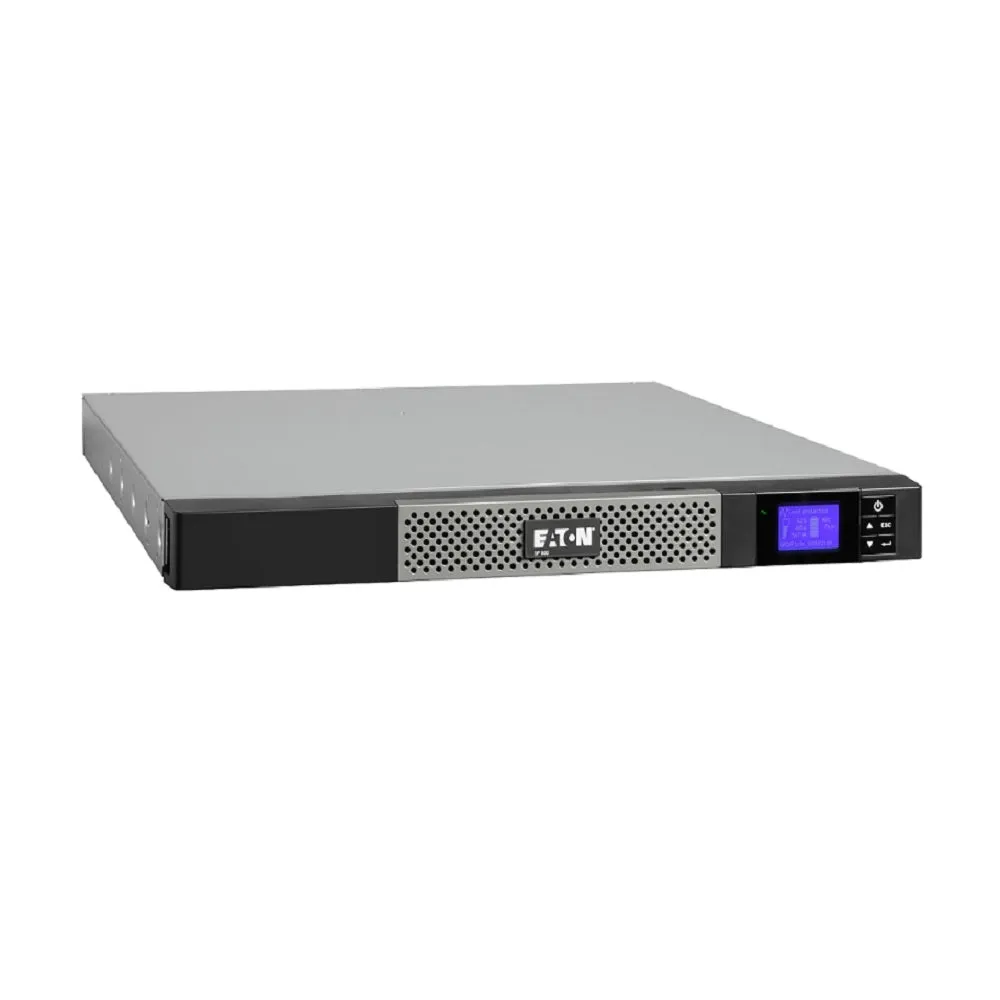

This is an Eaton 5P 850i Rack 1U 10A 850VA 600W UPS w/ BS Cord 5P850IRBS 9210-3356-00P. It comes as pictured.
Specifications:
- Product Name Eaton 5P UPS
- Part Number 5P850IRBS
- Model Eaton 5P 850i Rack1U w/ BS Cord 10A
- Product Length/Depth 550 mm
- Product Height 160 mm
- Product Width 600 mm
- Product Weight 11 kg
- Compliances CE Marked, TUV
- Certifications IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, EAC, cTUVus
- Secondary frequency - max 60 Hz
- Output waveform Sine wave
- Wattage 600 W
- Output power factor 0.7
- Form factor Rack
- Enclosure Black/silver
- Includes network card No
- Input connection C14
- Input voltage - min 150 V
- Output voltage - max 240 V
- Secondary frequency - min 50 Hz
- Software compatibility Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
- Battery replacement User replaceable
- Battery type Lead-acid maintenance-free (replaceable)
- Efficiency 97
- Construction type 482.6 mm (19 inch) device
- Output voltage - min 200 V
- Extended battery capability No
- Output voltage range 230 V ( 6%/-10%)
- Topology Line-interactive
- BTU Rating Online: 123
- Back-up time 12 min
- Input nominal voltage 230V default (200/208/220/230/240V)
- Input frequency range 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
- Input voltage - max 294 V
- Voltage type AC
- Phase (output) 1
- Battery management ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
- Auto shutdown function Yes
- Number of Outputs C13 4
- VA rating 850 VA
- Potential free switch contact Yes
- Receptacle (4) C13
- Phase (input) 1
- Package contents Rack-mounting kit, Cable locking system, USB cable, Serial cable, (2) IEC-IEC cables, Quickstart guide, Safety instructions, BS input cord
- Noise level <40 dB at 1 meter
- Feed type 1
- Runtime graph View runtime graph
- User interface Multilingual graphical LCD display
- Battery quantity 2
- Rack size 1U
- Voltage 230V
- Temperature range 0-90% non-condensing
- Ethernet interface No
- Communication USB port (HID compliant), Serial port (RS232), Mini-terminal block for remote On/Off and Remote Power Off, Dry contacts (2 outputs, optocoupler, RJ)
- Relative humidity 0-90% non-condensing
- Rack mounting kit Yes
- Output frequency 50/60 Hz
- Runtime at full load 4 min
- Primary frequency - min 47 Hz
- Battery rating 12 V / 7 Ah
- Output nominal voltage 230V default (200/208/220/230/240V)
- Expansion slots One slot for optional communication card
- Input voltage range 160-294 V (adjustable to 150 V-294 V)
- Nominal frequency 50-60 Hz
- Primary frequency - max 70 Hz
- Altitude 2000 m
