Product Details
＋
Optional 820 ft (250 m) Extended Transmission Mode
4 x 10/100 Mbps Auto-MDIX Ports
IEEE 802.3at/af PoE Compliant
30 Watts per PoE Port, PoE Power Budget 58 W
4 kV Surge Protection
IEEE 802.3x Flow Control Support
Plug-and-Play Installation
1 Gbps Switching Fabric
448 Kbits RAM Data Buffer
K MAC Address Entries
Sturdy Metal Enclosure

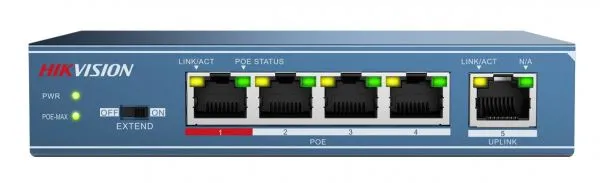

The DS-3E0105P-E is a 10/100 Mbps unmanaged switch that requires no configuration and provides four PoE (Power
over Ethernet) ports. It can automatically detect and supply power to all IEEE 802.3af/at compliant powered devices. In these situations, electrical power is transmitted alongside data in one single cable, allowing network expansion where there are no power lines or outlets, for devices such as IP cameras, IP phones, etc.
4 x 10/100 Mbps Auto-MDIX Ports
IEEE 802.3at/af PoE Compliant
30 Watts per PoE Port, PoE Power Budget 58 W
4 kV Surge Protection
IEEE 802.3x Flow Control Support
Plug-and-Play Installation
1 Gbps Switching Fabric
448 Kbits RAM Data Buffer
K MAC Address Entries
Sturdy Metal Enclosure
The DS-3E0105P-E is a 10/100 Mbps unmanaged switch that requires no configuration and provides four PoE (Power
over Ethernet) ports. It can automatically detect and supply power to all IEEE 802.3af/at compliant powered devices. In these situations, electrical power is transmitted alongside data in one single cable, allowing network expansion where there are no power lines or outlets, for devices such as IP cameras, IP phones, etc.
