Now Comes with A 5 Year Warranty
Impervious to terrain conditions, the Wabash is the bicycle equivalent to the word “and”. Road and Mountain. Pedal and Power. Man and Machine. Rock and Roll!
| SUGGESTED USE | Gravel, Road, Adventure |
| COLORS |
|
| SIZE | 54cm (S), 57cm (M), 60cm (L) |
| MSRP | $4,099 |
| TOTAL WEIGHT | xx.xlbs (L) |
| MOTOR | Yamaha PWSeries ST 3-bolt Mount Square Taper Spindle Quad Sensor System with rear hub speed sensor Weight: 7.71lb Rated power: 250W (Nominal), 500W (Max.) Max. torque: 70Nm Max. cadence support: xxxrpm Max. speed support: 28mph Support modes: AUTO, ECO , ECO, STANDARD, HIGH |

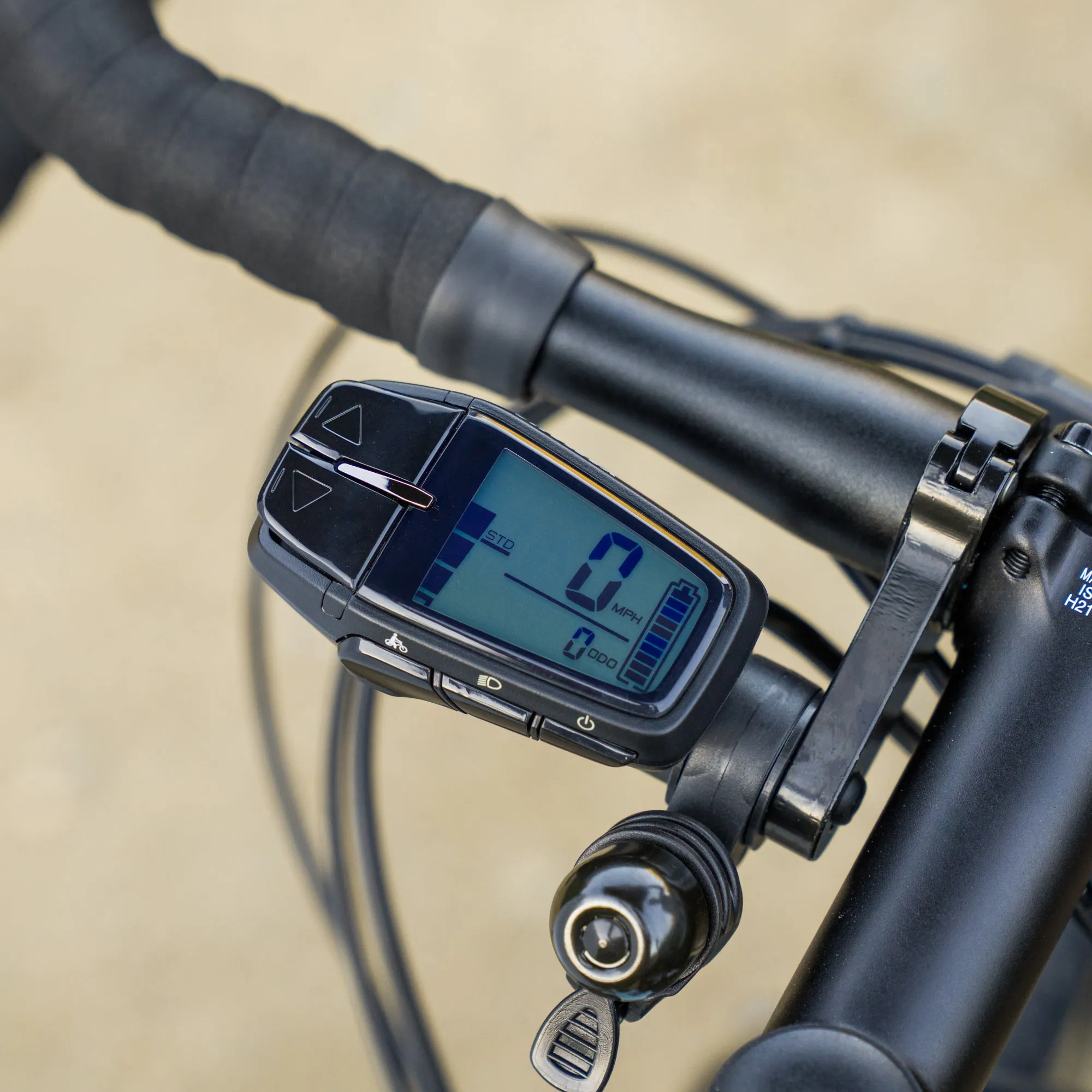

| CONTROL SWITCH AND MULTI-FUNCTION COMPUTER | Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%) |
| BATTERY | Yamaha 500Wh with Charge-life indicator and Self-diagnosis display. Side-exiting dock station with anti-vibration mounting plate Weight 6.61lb 500Wh 36V 4-hour charge time |
| FRAME | Yamaha Hydroformed Aluminum |
| FORK | Fork One-Piece Aluminum |
| HEADSET | Integrated bearing with 30mm of spacers |
| STEM | Yamaha Alloy 4-bolt faceplate |

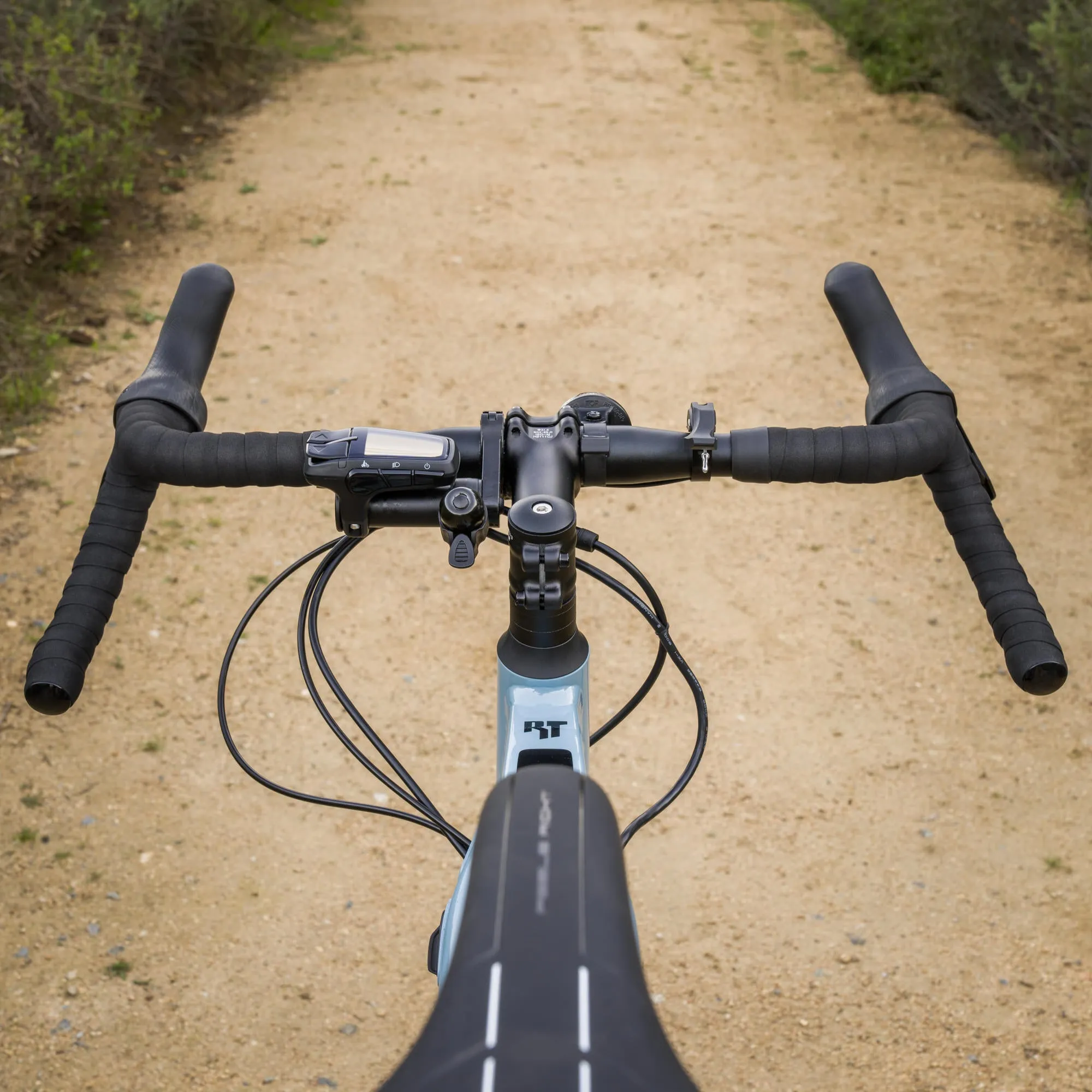

| HANDLEBAR | Flare drop 31.8mm diameter 44cm width |
| GRIPS/TAPE | Padded cork tape |
| SEATPOST/SADDLE CLAMP | Alloy 30.9 x 340mm (S), 395mm (M), 440mm (L) with 2-bolt adjustable tilt saddle rail clamp |
| SEATPOST COLLAR | Alloy 2-bolt 35.0mm |
| SADDLE | Yamaha Off-Road Cro-Mo Rail |
| SHIFTERS | Shimano GRX 11-speed RX600 |

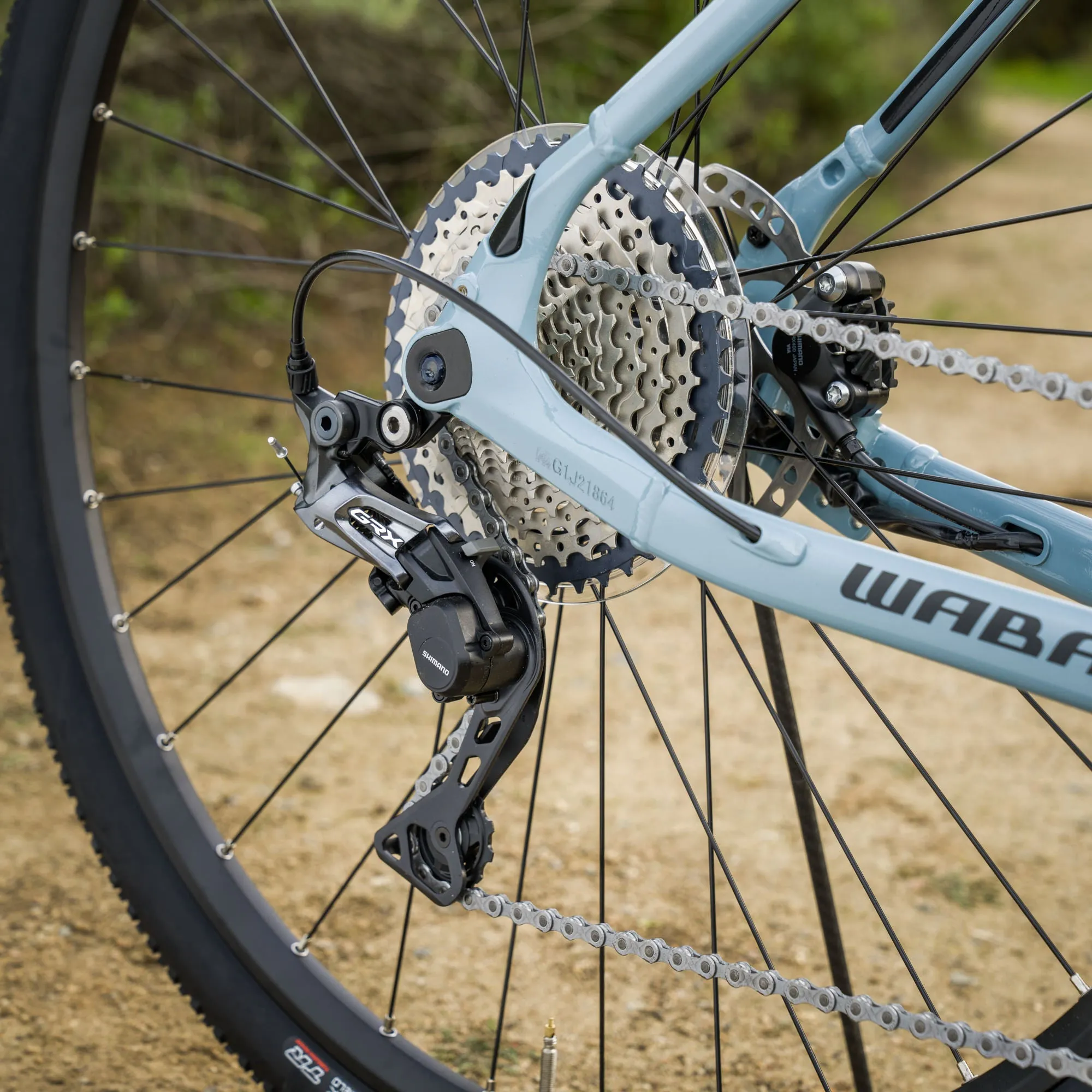

| REAR DERAILLEUR | Shimano GRX |
| CRANKARM | Square taper 165mm (S, M) 170mm (L) |
| CHAIN | KMC e11 Turbo EPT |
| CASSETTE | Shimano CS-M7000 |
| CHAINRING(S) | Shimano GRX 44t |
| BRAKES/ROTORS | Shimano GRX RX600-rear, RX400-front |
| RIMS | 32-Hole Dual Channel Welded Pin w/ Eyeleted Spoke |
| SPOKES | Spokes SUS304 |
| SPOKE NIPPLES | SUS304 w/ brass nipple |
| HUBS | Front: 12x100mm TA Rear: 12x142mm TA with integrated speed sensor |
| TIRES/TUBES | Maxxis Rambler 700 x 45c TR EXO 120tpi |
| ACCESSORIES | Yamaha keys Yamaha battery charger Bell |
| WARRANTY | 3-Year on Frame, Drive Unit, Battery |
