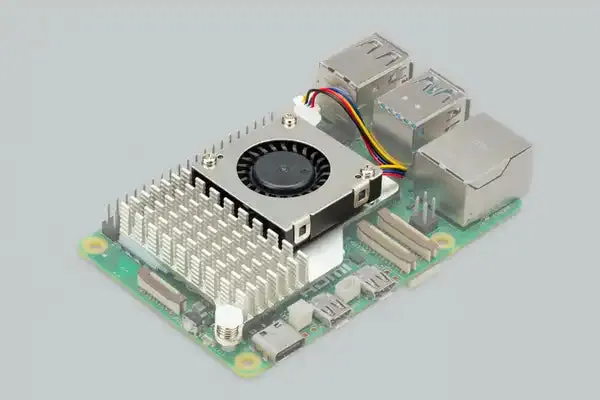

The Raspberry Pi 5 Active Cooler is a specialized cooling option that easily attaches to your Raspberry Pi 5. Utilizing an aluminium heatsink and a temperature-regulated blower fan, this product ensures optimal operating temperature for your device, even during intense use.
Features of Raspberry Pi 5 Active Cooler
Single-piece anodised aluminium heatsink
Heatsink-mounted, temperature-controlled blower fan attached by three screws
Spring-loaded push pins for mounting onto Raspberry Pi 5
Pre-applied thermal pads for heat transfer
Important notes
We recommend that the Active Cooler is not removed once it is fitted to Raspberry Pi 5. Removal of the Active Cooler will cause the push pins and thermal pads to degrade and is likely to lead to product damage. Discontinue use of the Active Cooler if the push pins are damaged or deformed, or if they do not clip securely.
Specifications Of Raspberry Pi 5 Active Cooler
Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5
Fan speed control: Pulse width modulation control with tachometer
Maximum airflow: 1.09 CFM
Maximum fan speed: 8000 RPM /- 15%
Product material: Anodised aluminium
Documents
Compliance
For a full list of local and regional product approvals, please visit
Raspberry Pi Active Cooler will remain in production until at least January 2036
