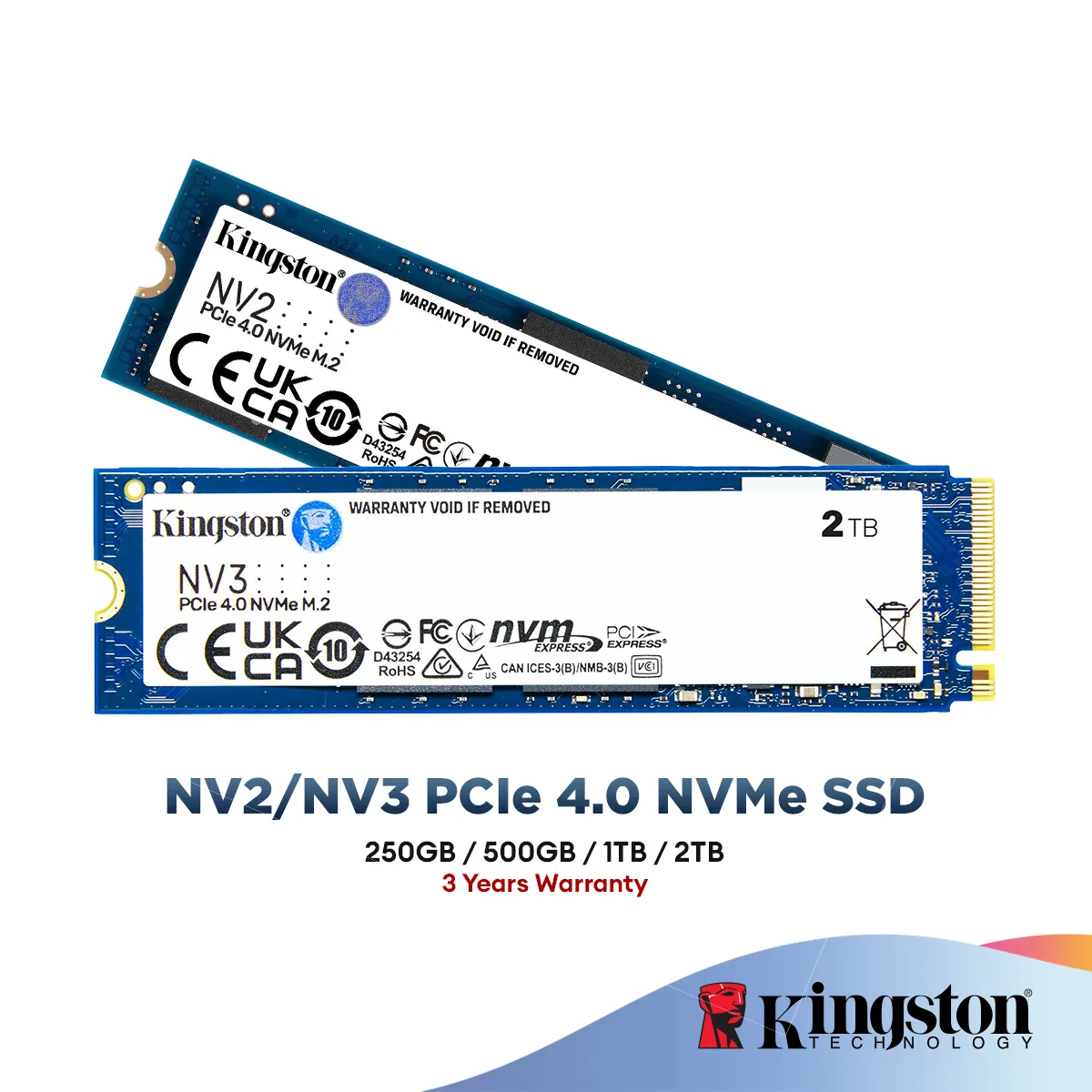

NV3 PCIe 4.0 NVMe SSD
For high-speed, low-power storage needs

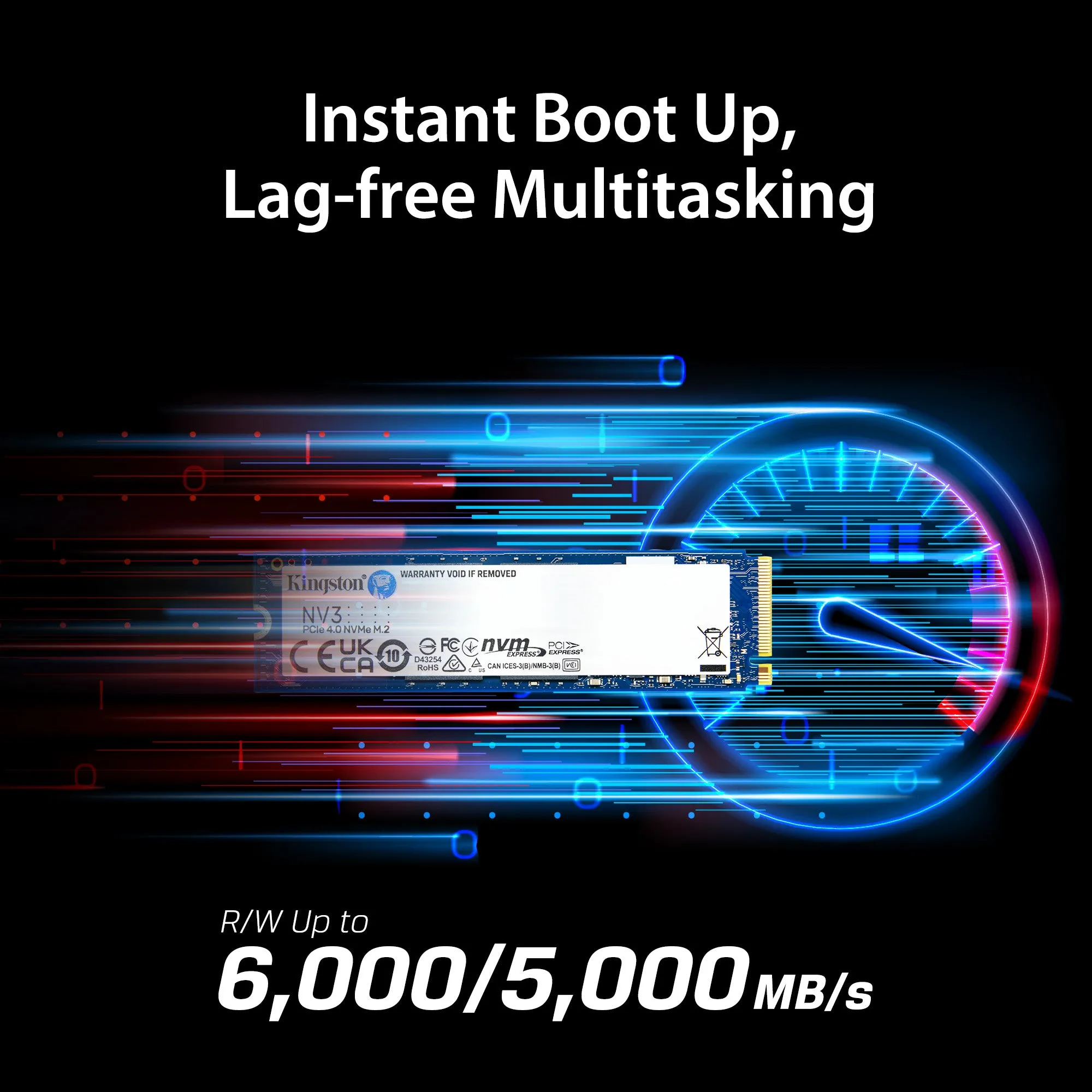

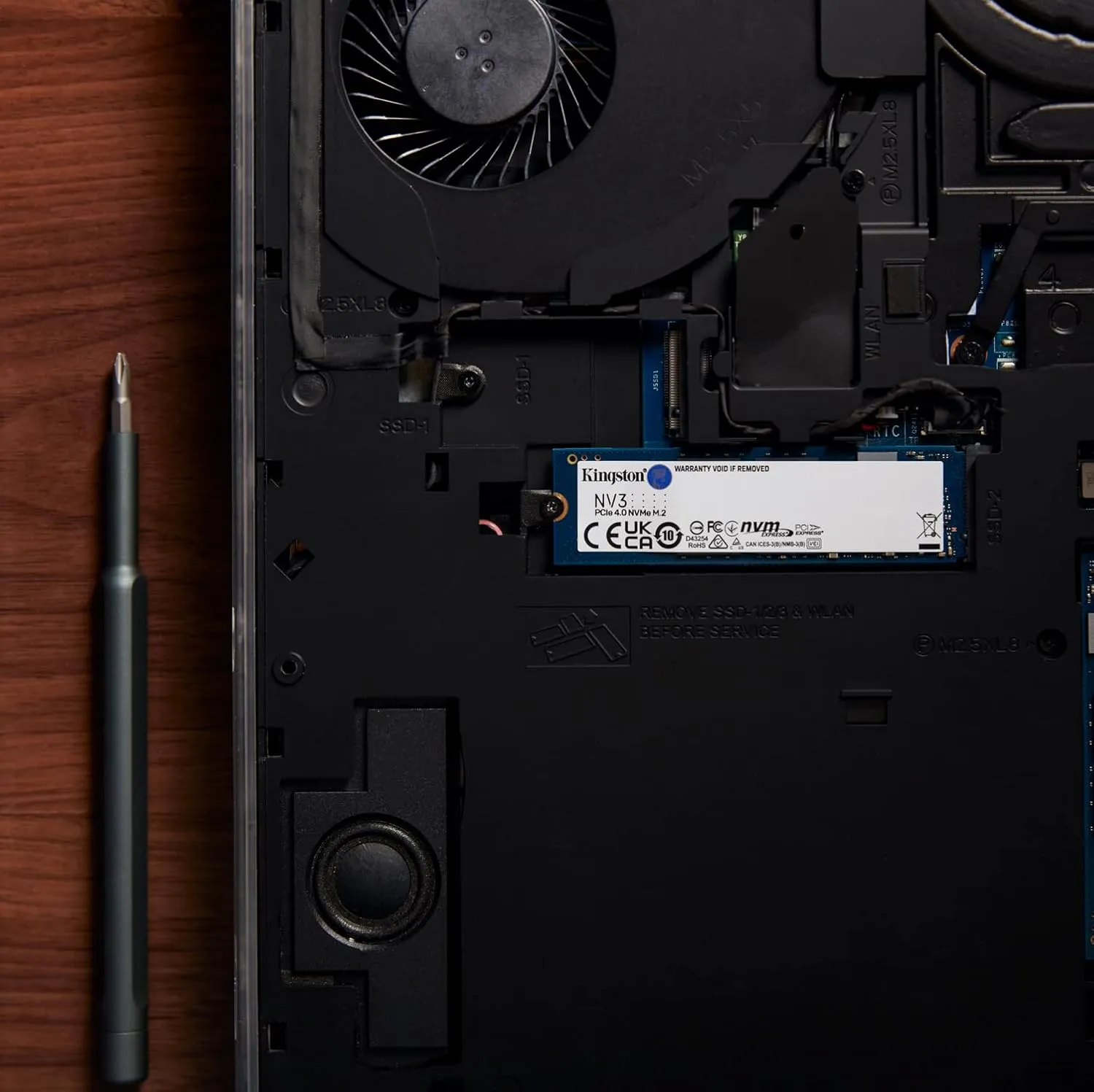

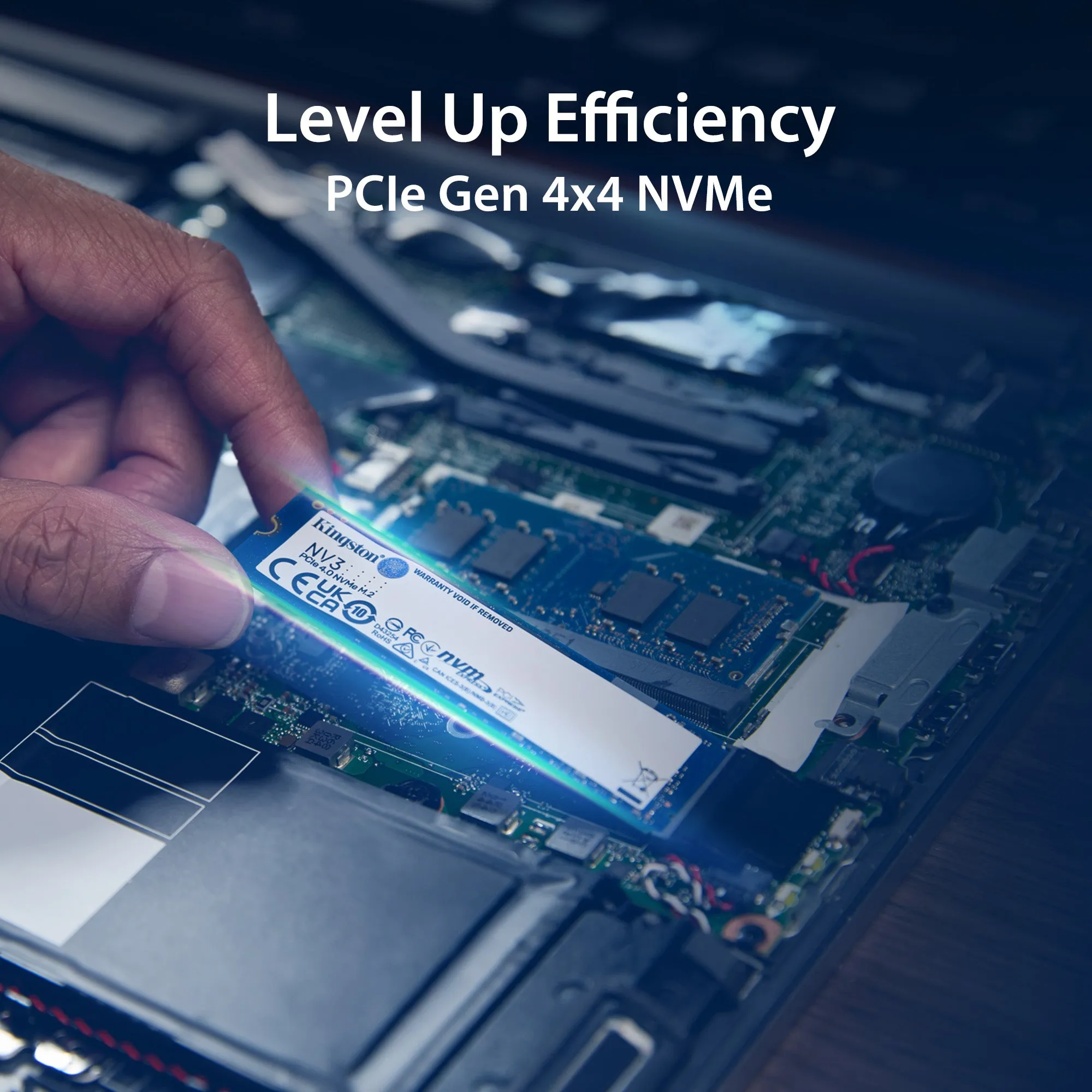

Kingston’s NV3 PCIe 4.0 NVMe SSD is a next-gen storage solution powered by a Gen 4x4 NVMe controller, delivering read/write speeds of up to 6,000/5,000MB/s1. It offers lower power consumption and reduced heat, optimising your system's performance without compromising value. The compact, single-sided M.2 2280 (22x80mm) design expands storage by up to 4TB2,3, conserving space for other components. Experience NVMe speeds with NV3.
Available in capacities from 500GB – 4TB2,3 to give you all the space you need for applications, documents, photos, videos, games and more.
- Gen 4x4 NVMe PCIe performance
- Ideal for high-speed, low-power storage

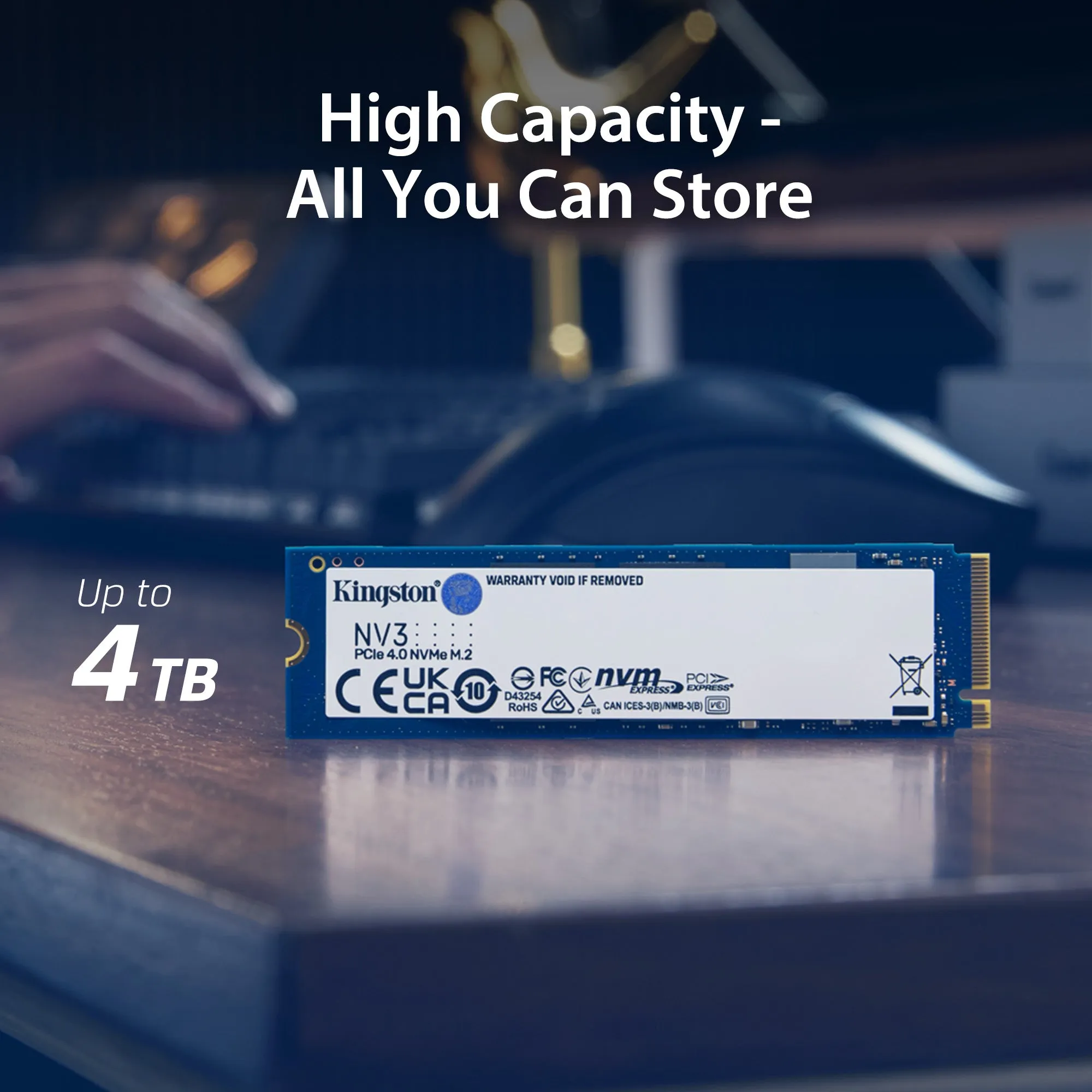

- Capacities of up to 4TB
Specifications
Form factor: M.2 2280
Interface: PCIe 4.0 x4 NVMe
Capacities: 500GB, 1TB, 2TB, 4TB
Sequential read/write
500GB – 5,000/3,000MB/s
1TB – 6,000/4,000MB/s
2TB - 4TB3 – 6,000/5,000MB/s
NAND 3D
Endurance (total bytes written)
500GB – 160TB
1TB – 320TB
2TB – 640TB
4TB – 1280TB
Storage temperature: -40°C~85°C
Operating temperature: 0°C~70°C

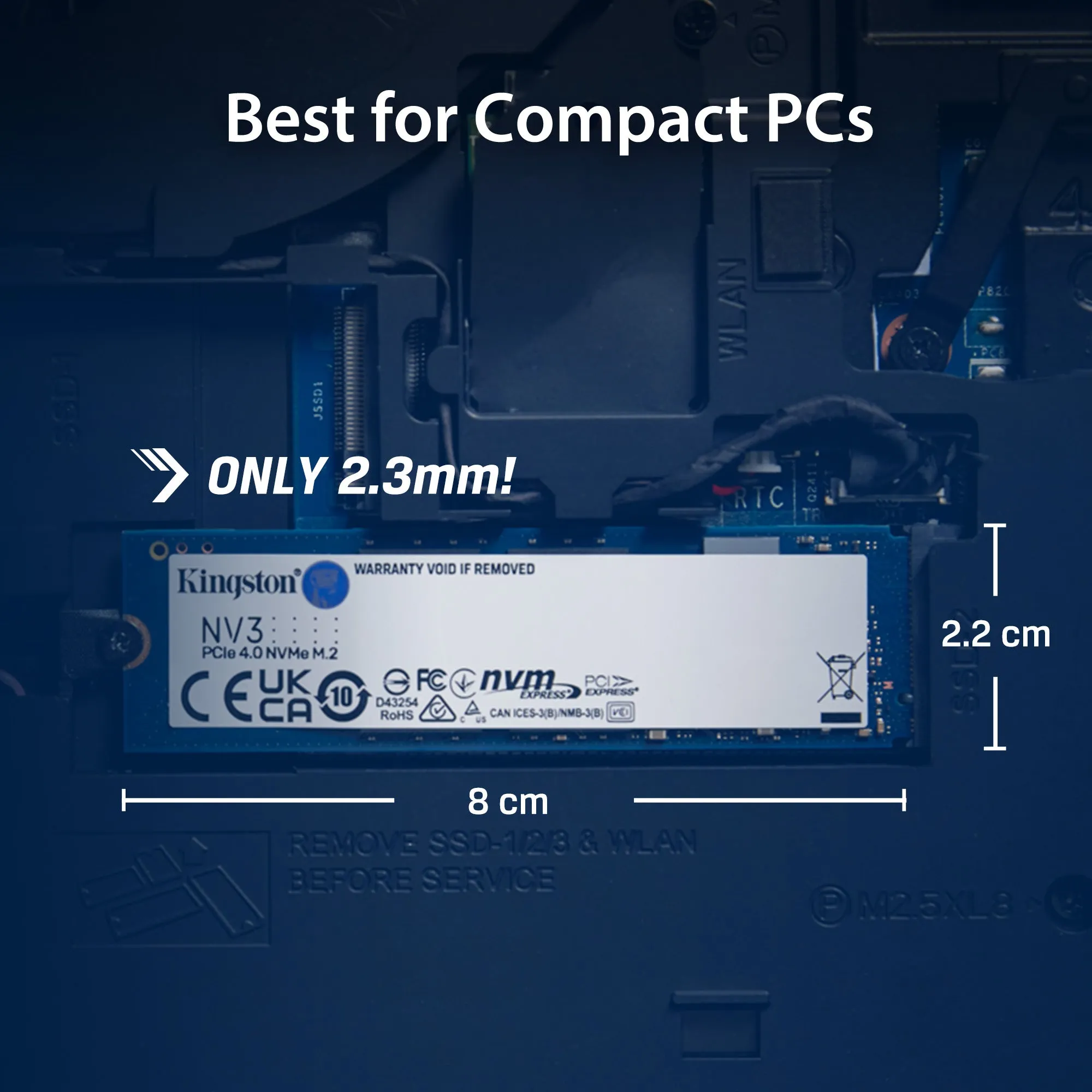

Dimensions: 22mm x 80mm x 2.3mm
Weight: 7g (all capacities)
Vibration non-operating: 10G (10-1000Hz)
MTBF: 2,000,000 hours
Warranty/Support: Limited 3-year warranty with free technical support
#Kingston #ssd #m.2 #250gb #500gb #1tb #2tb

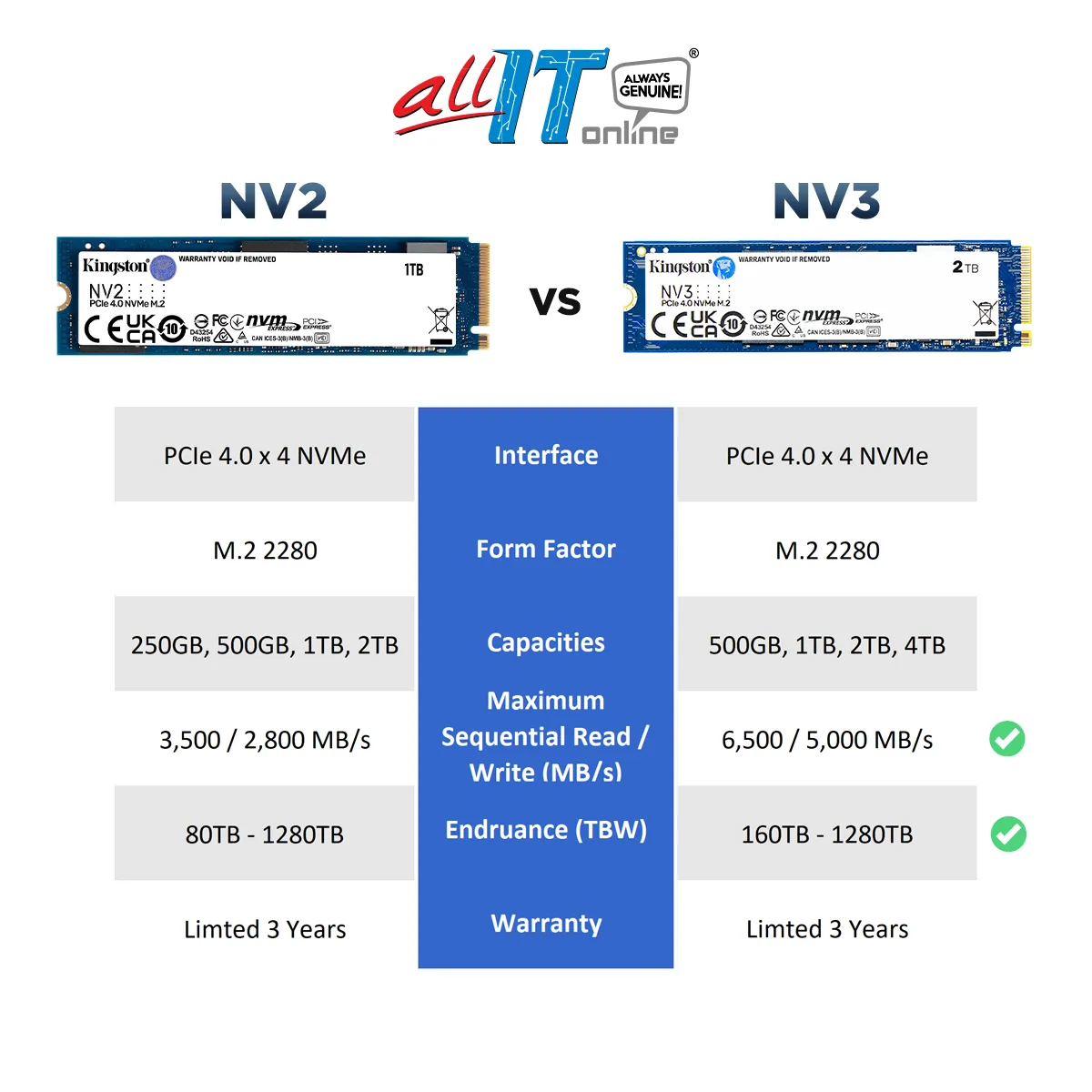

NV2 NVMe PCIe SSD
Substantial performance upgrade in high capacity
Kingston’s NV2 PCIe 4.0 NVMe SSD is a substantial next-gen storage solution powered by a Gen 4x4 NVMe controller. NV2 delivers read/write speeds of up to 3,500/2,800MB/s with lower power requirements and lower heat to help optimize your system’s performance and deliver value without sacrifice. The compact single-sided M.2 2280 (22x80mm) design expands storage by up to 2TB while saving space for other components, making NV2 ideal for thinner notebooks, small-form-factor (SFF) systems and DIY motherboards. Available in capacities from 250GB – 2TB2 to give you all the space you need for applications, documents, photos, videos and more.
Specifications
Form factor: M.2 2280
Interface: PCIe 4.0 x4 NVMe
Capacities: 250GB, 500GB, 1TB, 2TB
Sequential read/write:
- 250GB – 3,000/1,300MB/s
- 500GB – 3,500/2,100MB/s
- 1TB – 3,500/2,100MB/s
- 2TB – 3,500/2,800MB/s
Endurance (Total bytes written):
- 250GB – 80TBW
- 500GB – 160TBW
- 1TB – 320TBW
- 2TB – 640TBW
Storage temperature: -40°C~85°C
Operating temperature: 0°C~70°C
Dimensions: 22mm x 80mm x 2.2mm
Weight: 7g
Vibration operating: 2.17G (7-800 Hz)
Vibration non-operating: 20G (20-1000Hz)
MTBF (Mean Time Between Failures): 1,500,000 hours
Warranty/Support: Limited 3-year warranty
