The JBL VMA2120 is a Commercial Series Bluetooth-enabled mixer/amplifier designed to provide flexible multi-source mixing and amplification for installation in restaurants, educational institutions, fitness centers, and retail stores. It features an 8-in/2-out mixer and 120W of output power. It can be installed in a standard 19” equipment rack with the supplied rackmount kit or set on a surface such as a desk or ledge.
Stream music wirelessly via Bluetooth or connect a USB drive to the front-panel USB Type-A port. Route other sources via Euroblock, RCA, and 1/4" input jacks. The integrated mixer offers level controls as well as bass and treble for each channel. Routing to the Euroblock outputs is configurable. The VMA2120 supports voice-activated ducking and priority muting. The front-panel controls and display make operation easy, and remote volume control is possible via a JBL CSR-V module and a standard Ethernet cable (both available separately).
Features
- 8-Input Mixer
- Supports USB Drives and Bluetooth
- 120W, 2-Output Amplifier

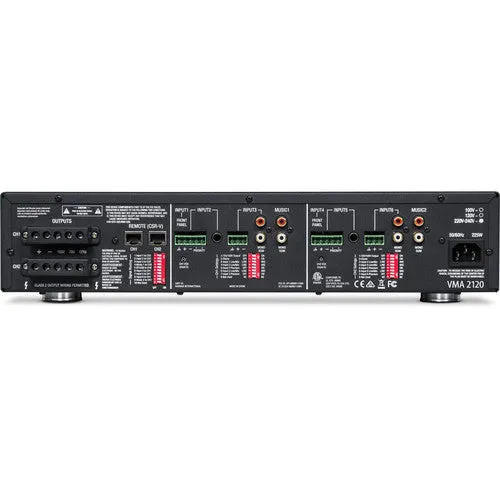

- Euroblock, RCA, and 1/4" Inputs
- Euroblock Outputs
- Per-Channel Bass and Treble Controls
- Voice-Activated Ducking

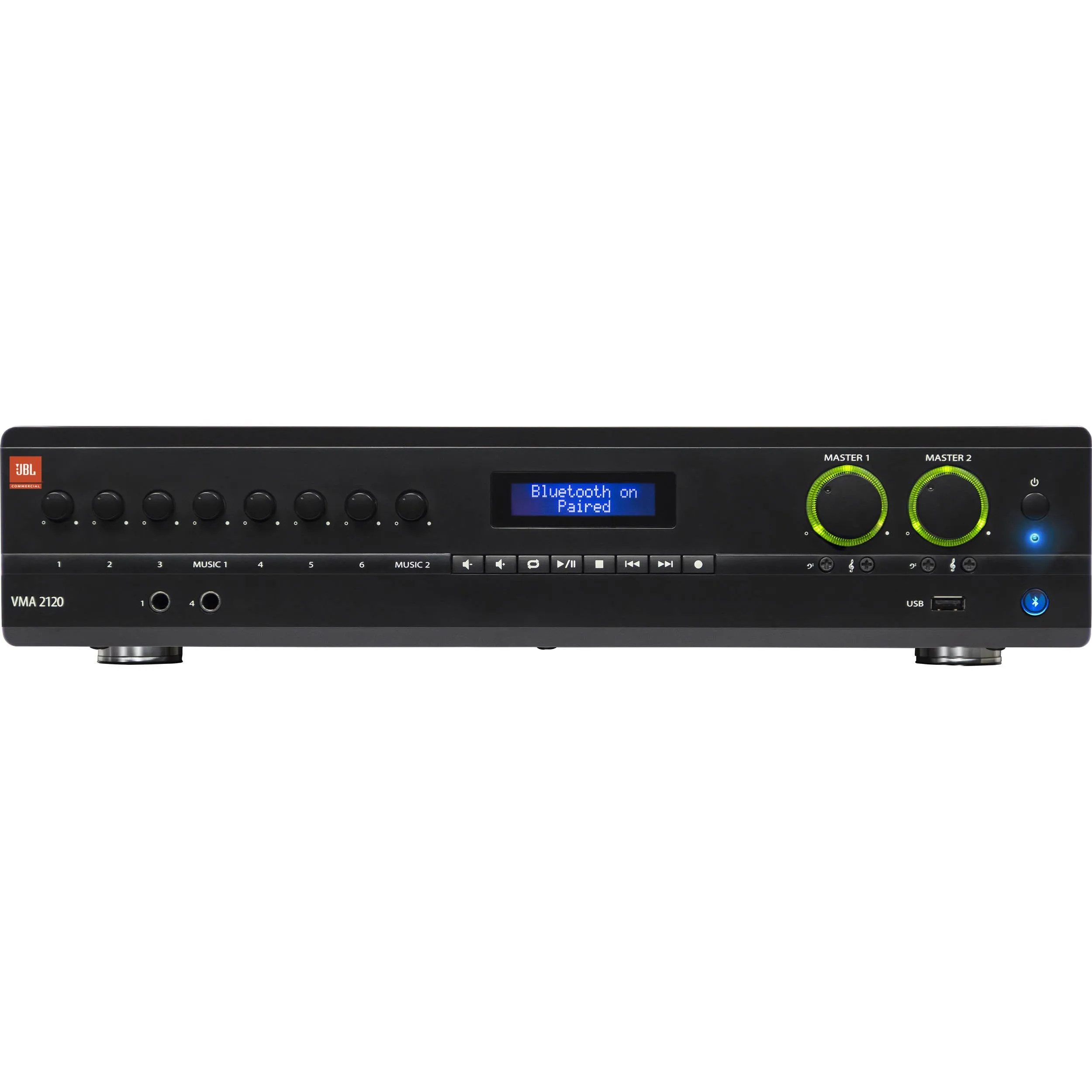

- Front-Panel Display and Controls
- Configurable Output Routing
- Includes Rackmount Kit
Specifications
| Form Factor/Type |
Tabletop
|
| Number of Channels |
8 Input / 2 Output
|
| Amplifier Power Rating |
4 Ohms / 8 Ohms:
120 W per Channel (1 kHz, 0.5% THD)
|
| Load Impedance / Voltage |
4 Ohms (Minimum)
70 V (40 Ohms Minimum)
100 V (80 Ohms Minimum)
|
Performance
| Frequency Response |
20 Hz to 20 kHz ±2 dB (Low-Z)
80 Hz to 15 kHz ±3 dB (70/100 V)
|
| Input Sensitivity |
Mic:
5.5 mVrms
Line:
1.3 Vrms
Stereo RCA:
130 mVrms
|
| I/O Impedance |
Mic Input:
400 Ohms
Line Input:
20 Kilohms (Balanced)
RCA Input:
50 Kilohms
|
| Insertion Loss |
1 dB Maximum
|
| SNR |
> 76 dB (at Rated Power, A-Weighted)
|
| THD |
< 0.5% (20 Hz to 20 kHz)
|
| Crosstalk |
-70 dB (at Rated Power, Mid Gain, 1 kHz)
|
Signal Processing
| EQ |
2-Band per Channel:
Bass: ±14 dB at 50 Hz
Treble: ±14 dB at 10 kHz
|
Power
| AC Input Power |
100 VAC, 50 / 60 Hz
120 VAC, 50 / 60 Hz
220 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz
|
Physical
| Operating Temperature |
32 to 95°F / 0 to 35°C
|
| Storage Temperature |
-4 to 185°F / -20 to 85°C
|
| Operating Humidity |
0 to 95% ()
|
| Dimensions |
17.0 x 3.5 x 16.3" / 432.0 x 88.0 x 415.0 mm
|
| Weight |
29.3 lb / 13.3 kg
|
Packaging Info
| Package Weight |
35 lb
|
| Box Dimensions (LxWxH) |
21 x 20.5 x 6.5"
|
