Name: Home Assistant Yellow
SKU: 1194413

Product Details ＋

Some are currently available for pre-order, 2GB and 4GB Variants are expected for late January. However, delivery for the other variants has been slightly delayed, with some expected in February. We are optimistic about receiving these units sooner rather than later. If you have any questions regarding your pre-order, please don't hesitate to contact us. Orders containing a CM5 will ship as soon as the specific units become available.

What does each Kit includes?

Power Supply Kit:

Carrier board (No PoE Capabilities)
Custom enclosure
Power supply
Heatsink
Fixings
Ethernet cable
HA stickers!

(You must provide your own Raspberry Pi Compute Module / and install Home Assistant on it, assembling instructions can be found by scanning QR Code inside the box)

PoE Kit:

Carrier board (with PoE Capabilities)
Custom enclosure
Heatsink
Fixings
Ethernet cable
HA stickers!

(You must provide your own Raspberry Pi Compute Module / and install Home Assistant on it, assembling instructions can be found by scanning QR Code inside the box)

HA Yellow Pro Kit w/CM4 (Assembled):

Carrier board (No PoE Capabilities)
Custom enclosure
Power supply
Heatsink
Fixings
Ethernet cable
HA stickers!
RPi CM4 8GB/32GB/No WiFi BT (Home Assistant Installed)
1TB NVMe (SiliconPower)

HA Yellow Essential Kit w/CM4 (Assembled):

Carrier board (No PoE Capabilities)
Custom enclosure
Power supply
Heatsink
Fixings
Ethernet cable
HA stickers!
RPi CM4 2GB/8GB/No WiFi BT (Home Assistant Installed)
128GB NVMe (SiliconPower)

HA Yellow Pro Kit w/CM5 (Assembled) Shipping January/February 2025:

Carrier board (No PoE Capabilities)
Custom enclosure
Power supply
Heatsink
Fixings
Ethernet cable
HA stickers!
RPi CM5 16GB/64GB/Yes WiFi BT (Home Assistant Installed)
1TB NVMe (SiliconPower)

HA Yellow Essential Kit w/CM5 (Assembled) Pre-order Only!:

Carrier board (No PoE Capabilities)
Custom enclosure
Power supply
Heatsink
Fixings
Ethernet cable
HA stickers!
RPi CM5 2GB/16GB/No WiFi BT (Home Assistant Installed)
128GB NVMe (SiliconPower)

*Some customers have reported that while moving the Data Disk to an NVMe, the Home Assistant interface may display the NVMe size as "0". Despite this, the moving process still functions correctly. Even if the size remains "0" after the Data Disk has been moved, the "Disk Used Space %" will display accurately, reflecting the correct available space.

Alternatives to the Home Assistant Yellow:

Home Assistant Yellow integrates 1,000 different devices and services, allowing you to create powerful automations and get insight into your energy usage. All from an easy-to-use interface that runs 100% locally without anything in the cloud.

Home Assistant Yellow grows with you.

A home is not static. As we grow as a person or expand our family, our homes evolve. What we buy today, should work tomorrow. With Home Assistant Yellow we have created a system that can be upgraded so it can keep up as you grow.

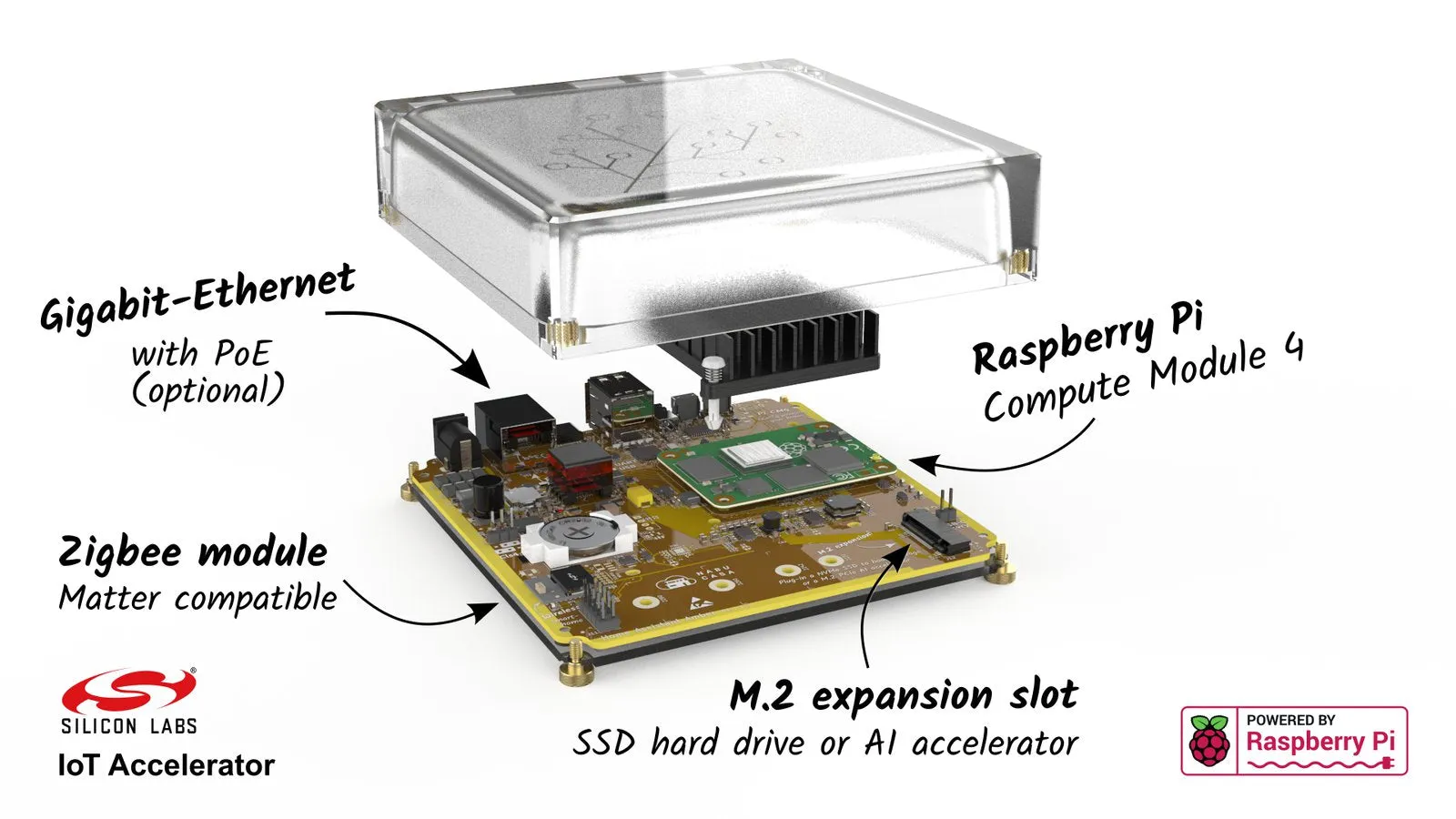

At the heart of Home Assistant Yellow is the Raspberry Pi Compute Module 4. This plugs into the Home Assistant Yellow board and provides the brains. You can upgrade to a more powerful version of the Compute Module 4 at any time.

Home Assistant Yellow includes the latest and greatest Zigbee radio chip from Silicon Labs to communicate with smart devices in your home. The chip is forward-compatible with the upcoming Matter smart home connectivity standard, in which Silicon Labs is heavily involved. Home Assistant Yellow will be compatible with Matter as soon as the Silicon Labs Matter SDK is released.

Home Assistant Yellow also contains an M.2 extension port. This allows you to easily plug in an NVMe SSD drive to extend the available space.

SPECIFICATIONS

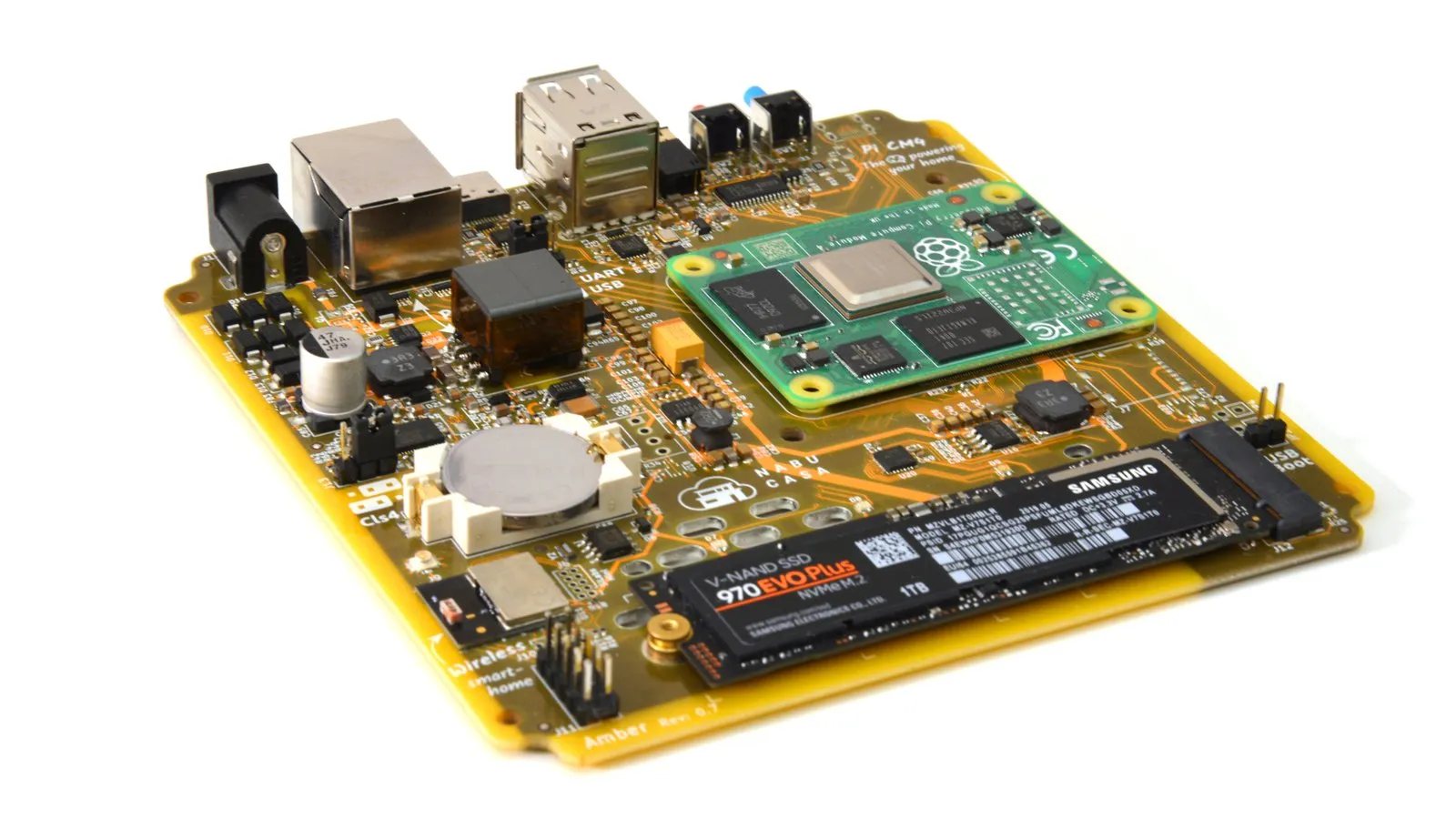

Carrier board for Raspberry Pi Compute Module 4 (CM4)	CM4 board-to-board connector Supports direct boot from NVMe devices (e.g., for CM4 Lite) 12 cm x 12 cm Compatible with all 32 variants of CM4 Quad-core Cortex-A72 (ARMv8) 64-bit / 1.5 GHz Up to 8 GB RAM Up to 32 GB eMMC for CM4 Regulatory approval does not cover wireless variants
Integrated smart-home wireless (Silicon Labs MGM210P Mighty Gecko Module)	Supports Zigbee 3.0, OpenThread, and Matter 2.4 GHz radio with TX power up to 20 dBm 1024 KB flash program memory, 96 KB RAM data memory Pre-installed with Zigbee 3.0 firmware (EZSP), can be upgraded
Expansion slot	For NVMe SSDs (M-Key) M.2 socket M-Key Supports 2230, 2242, 2260, and 2280 modules PCIe x1 Note: Google Coral AI Accelerator not working, details in this .
Networking	Gigabit Ethernet
USB Ports	2 x USB 2.0 Type-A host port 1 x USB-C 2.0 device port (Silicon Labs CP2102N USBXpress USB bridge) UART mode (default): debug USB-to-serial adapter USB mode: CM4 USB 2.0 interface for USB recovery
Audio	High-quality stereo audio DAC 2 V RMS line-out on 3.5 mm audio jack SNR 106 dB
Buttons	2 x Push button Red: Factory reset Blue: To be determined
RTC	RTC backed by CR2032 battery
Status LEDs	Green: Power Red: Disk usage Yellow: Home Assistant system state
Power	12 V / 2 A through barrel DC power jack (5.5 mm x 2.1 mm) Ethernet: PoE IEEE 802.3at-2009 Class 3 or 4 (selectable via jumper) Typical power usage Idle ~1.5 W Idle with NVMe ~2.5 W Load ~5-9 W

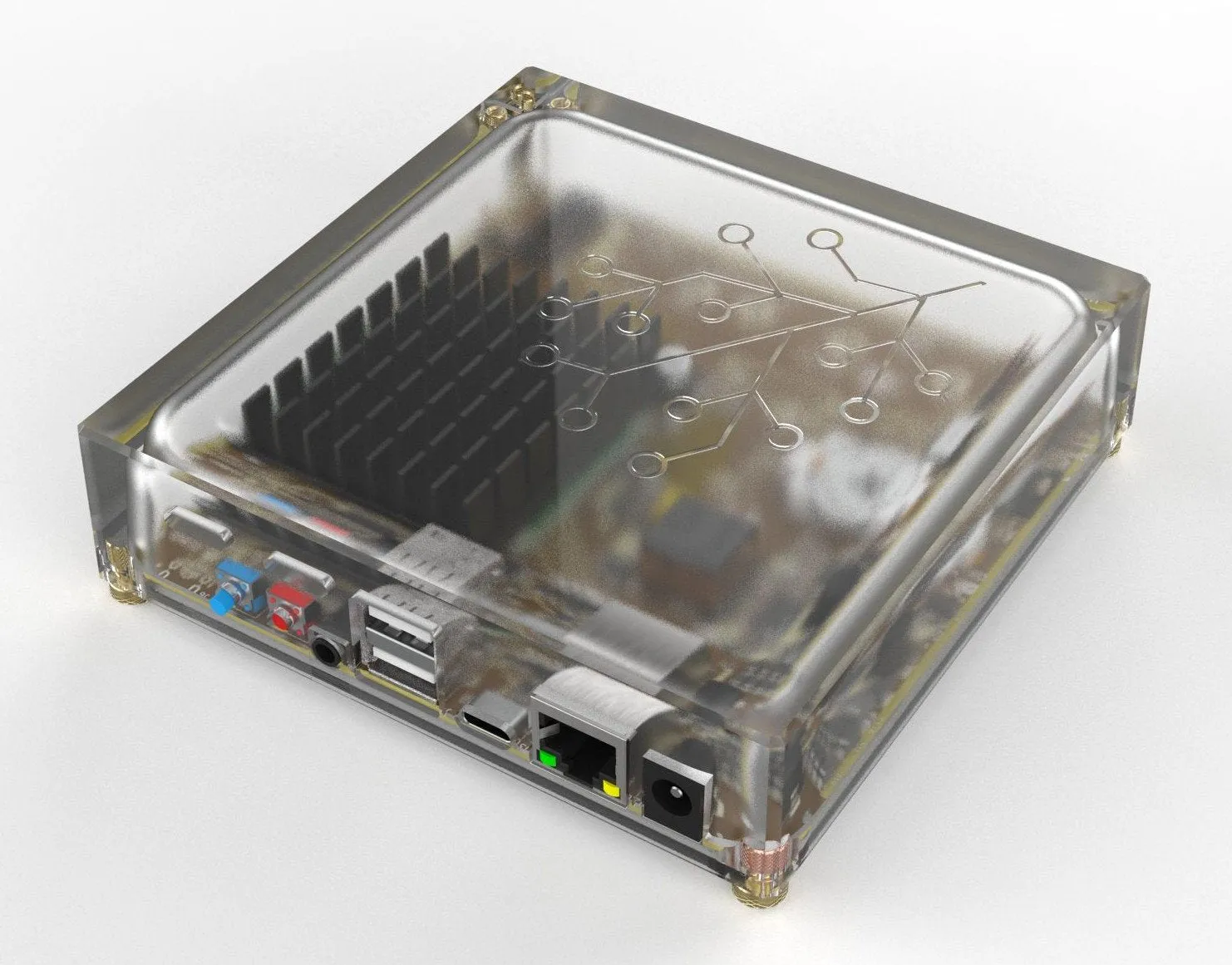

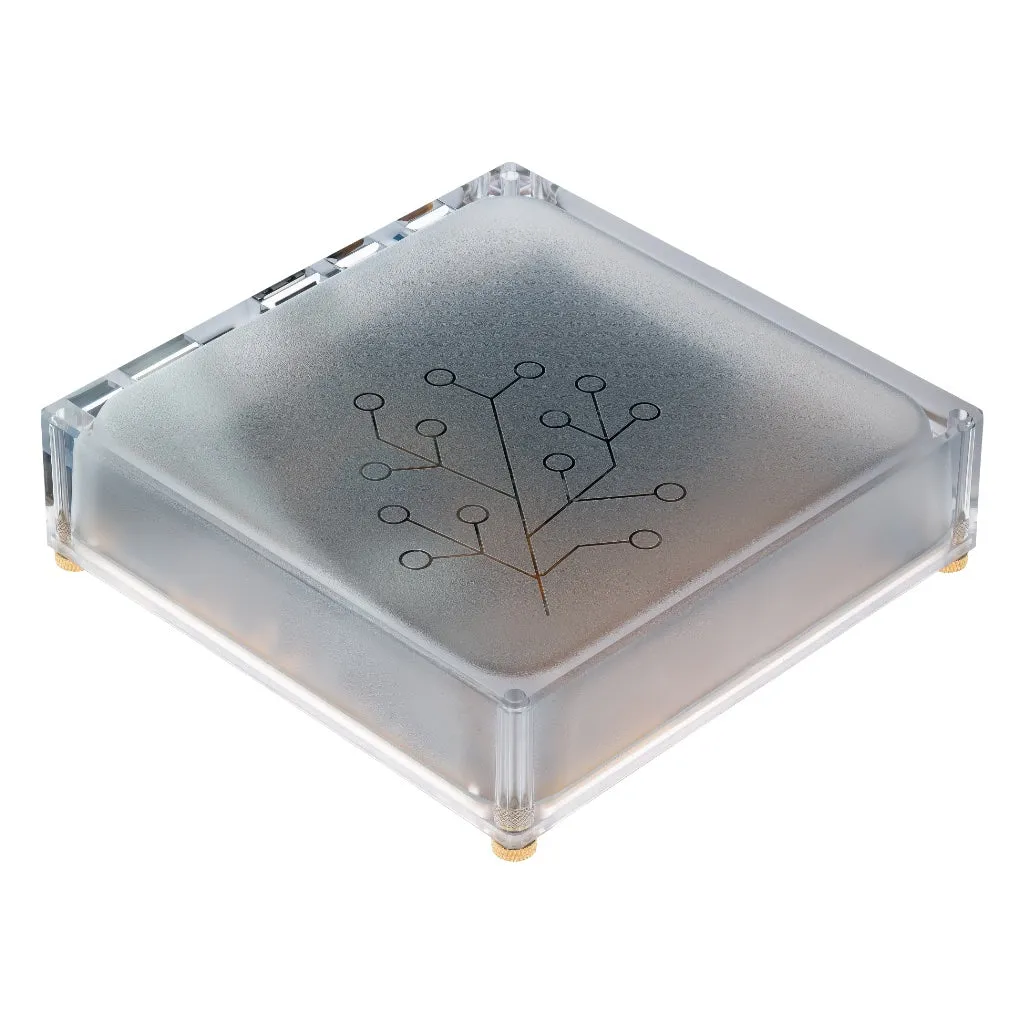

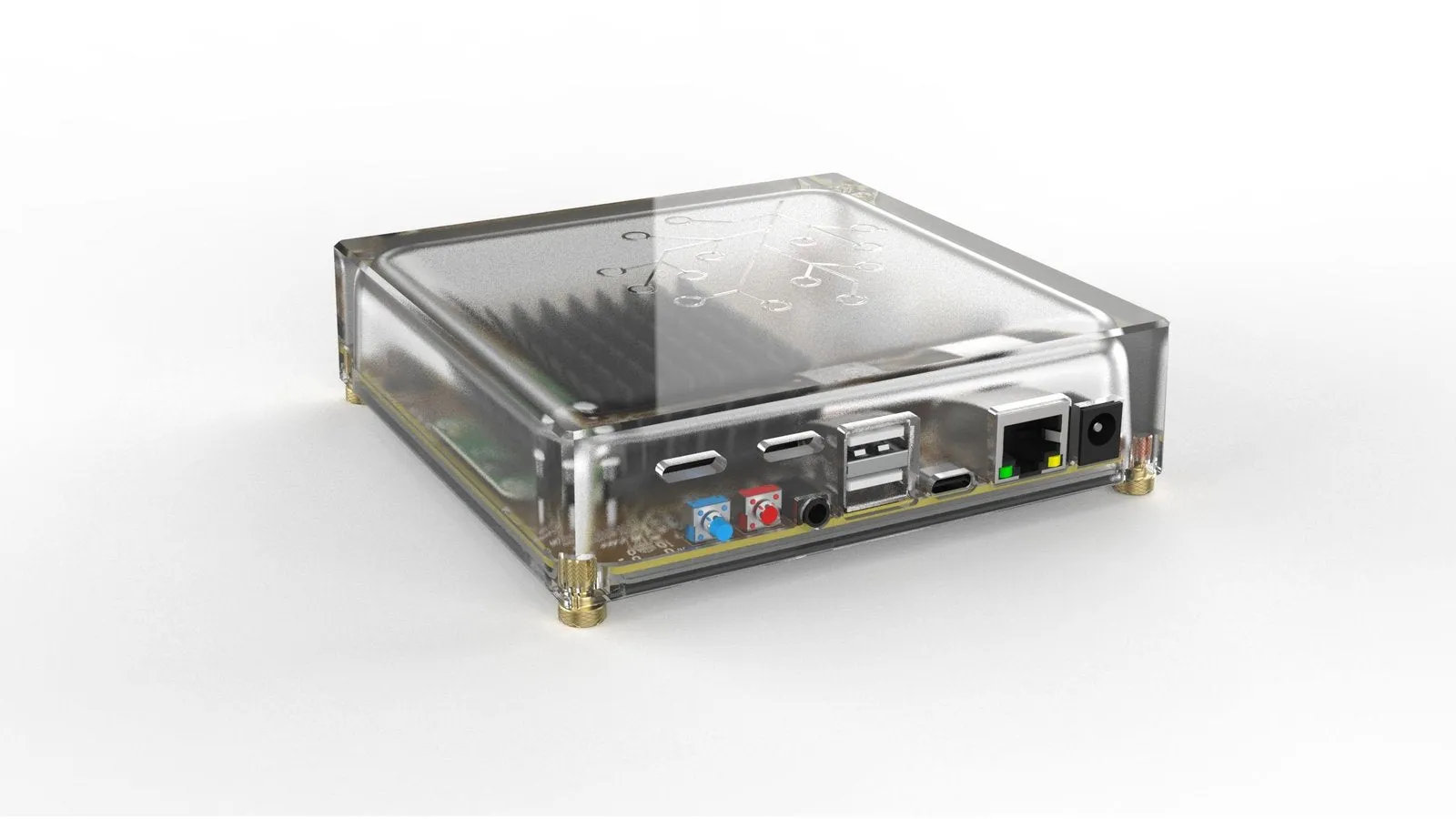

Enclosure	123 mm x 123 mm x 36 mm Translucent injection-molded polycarbonate plastic Tool-free assembly Accommodates custom heat sink (included)

NOTES

Warranty is valid for a period of 4 weeks, starting from the date of receipt of the package.
Instructions on how to install the Home Assistant OS on the CM4 (Required) -
