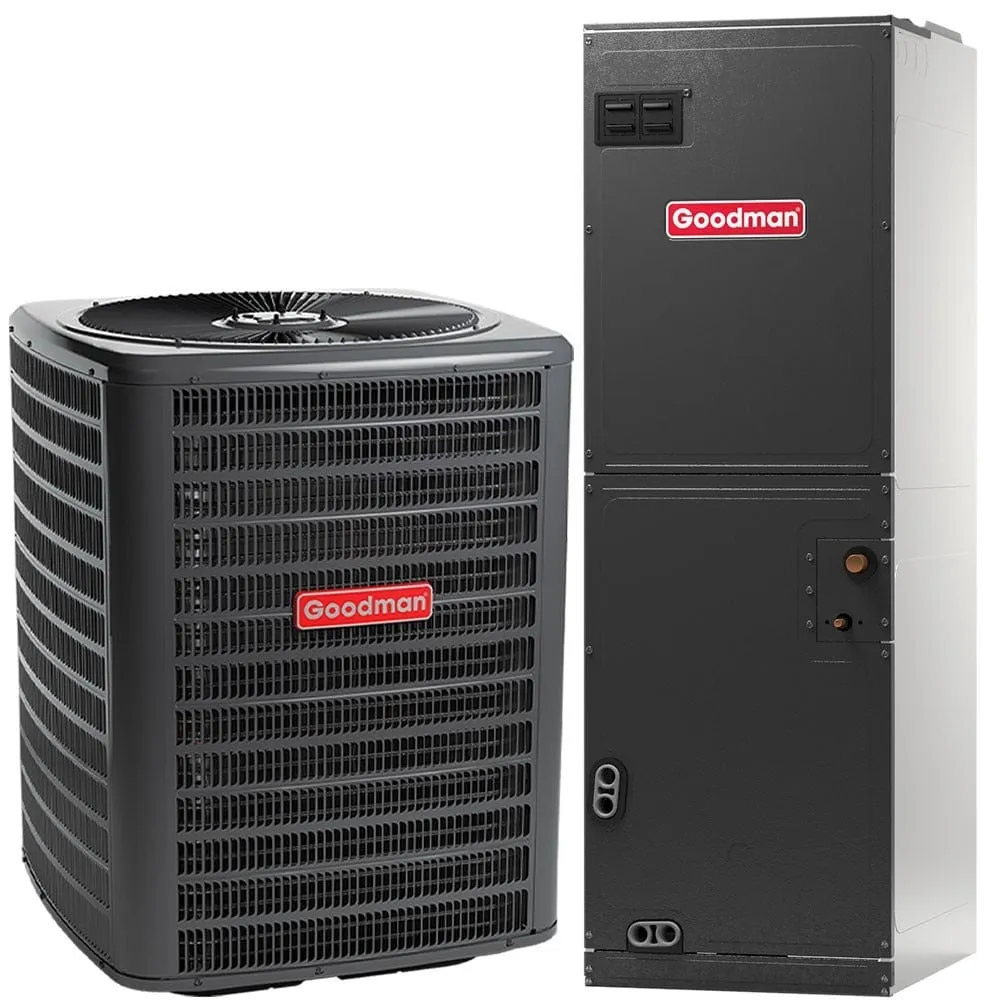

The Goodman® Brand GSX Series Air Conditioner offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

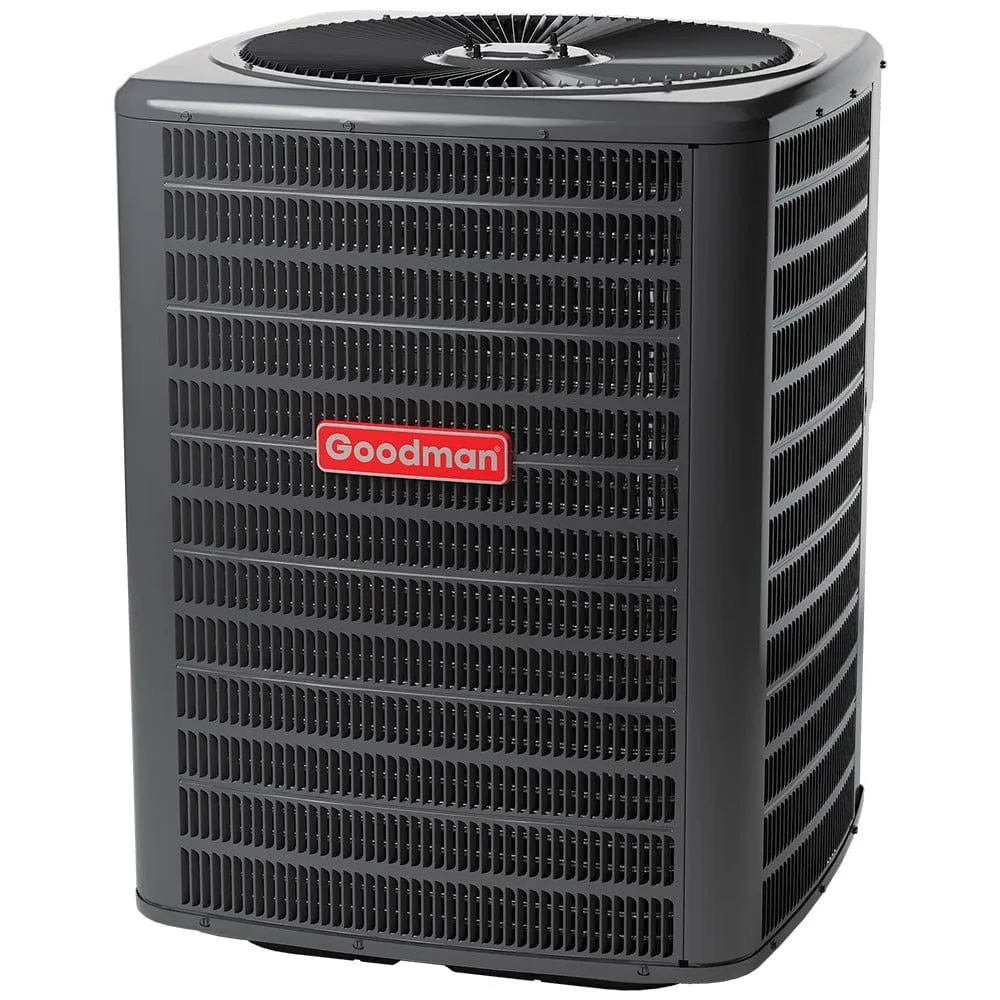

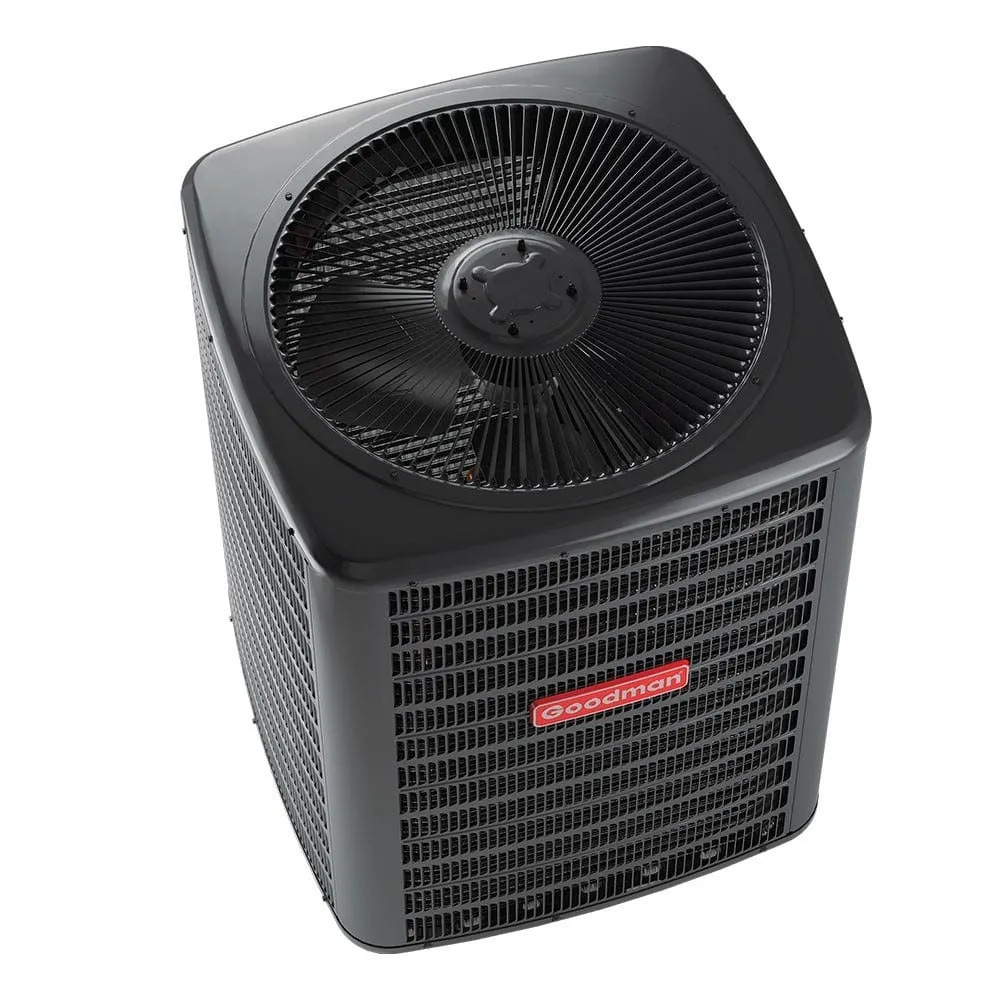

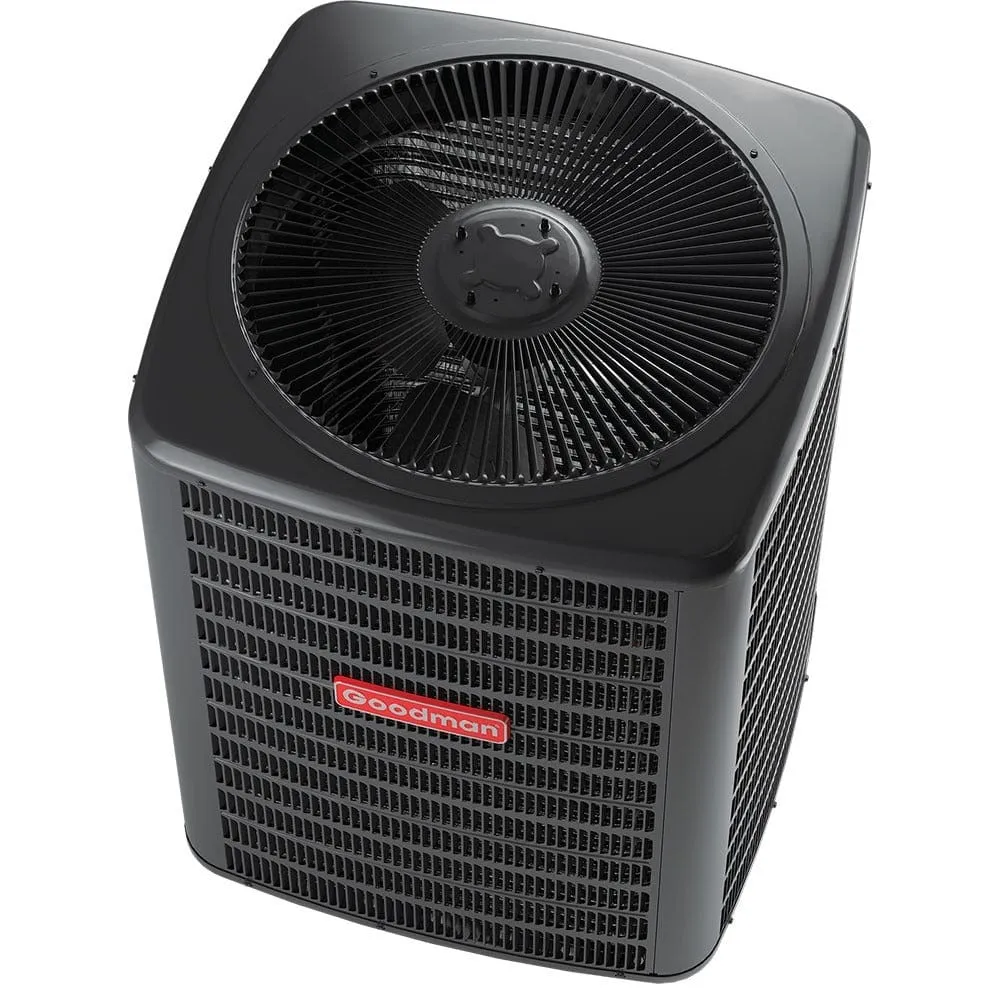

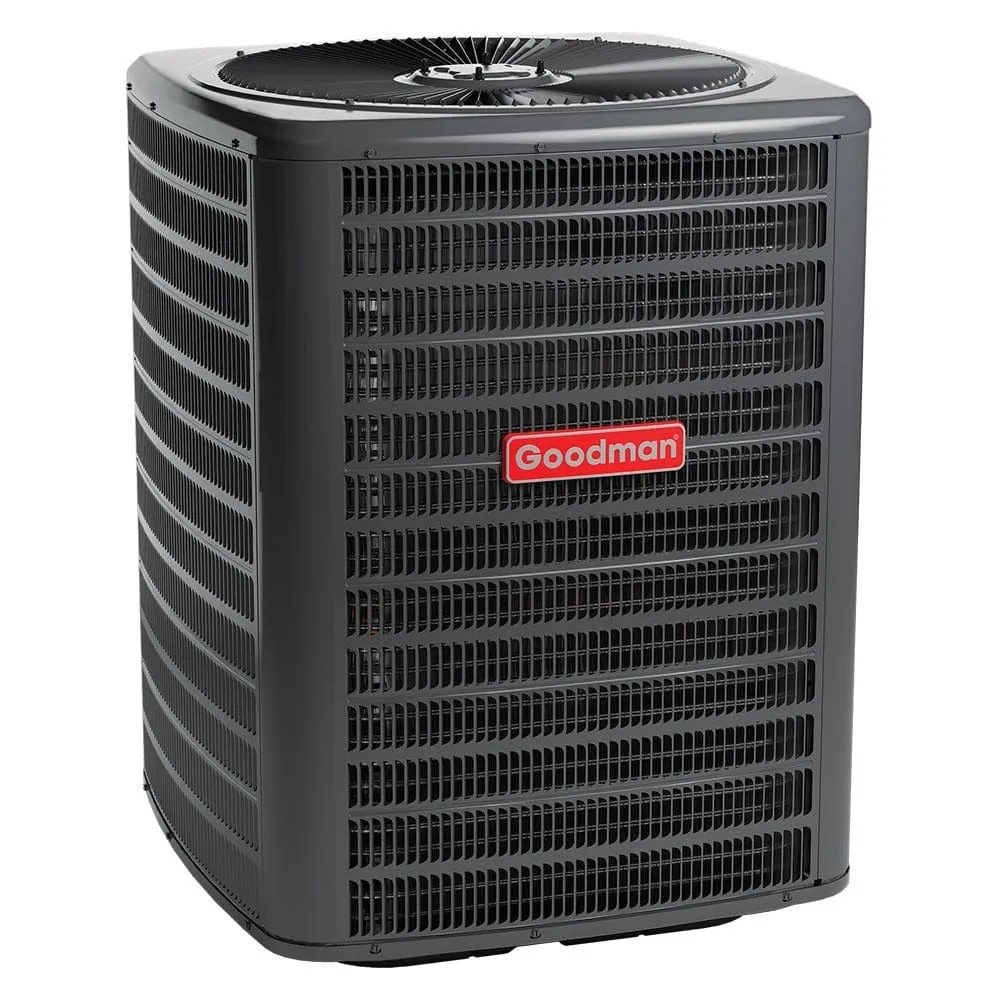

Goodman GSX140241 Air Conditioner Features:
-
R-410A Chlorine-Free Refrigerant
-
Energy-Efficient Compressor
-
Factory-Installed Filter Drier
-
Copper Tube/Aluminum Fin Coil
-
Service Valves With Sweat Connections And Easy-access Gauge Ports
-
Contactor With Lug Connection
-
Ground Lug Connection
-
AHRI Certified
-
ETL Listed

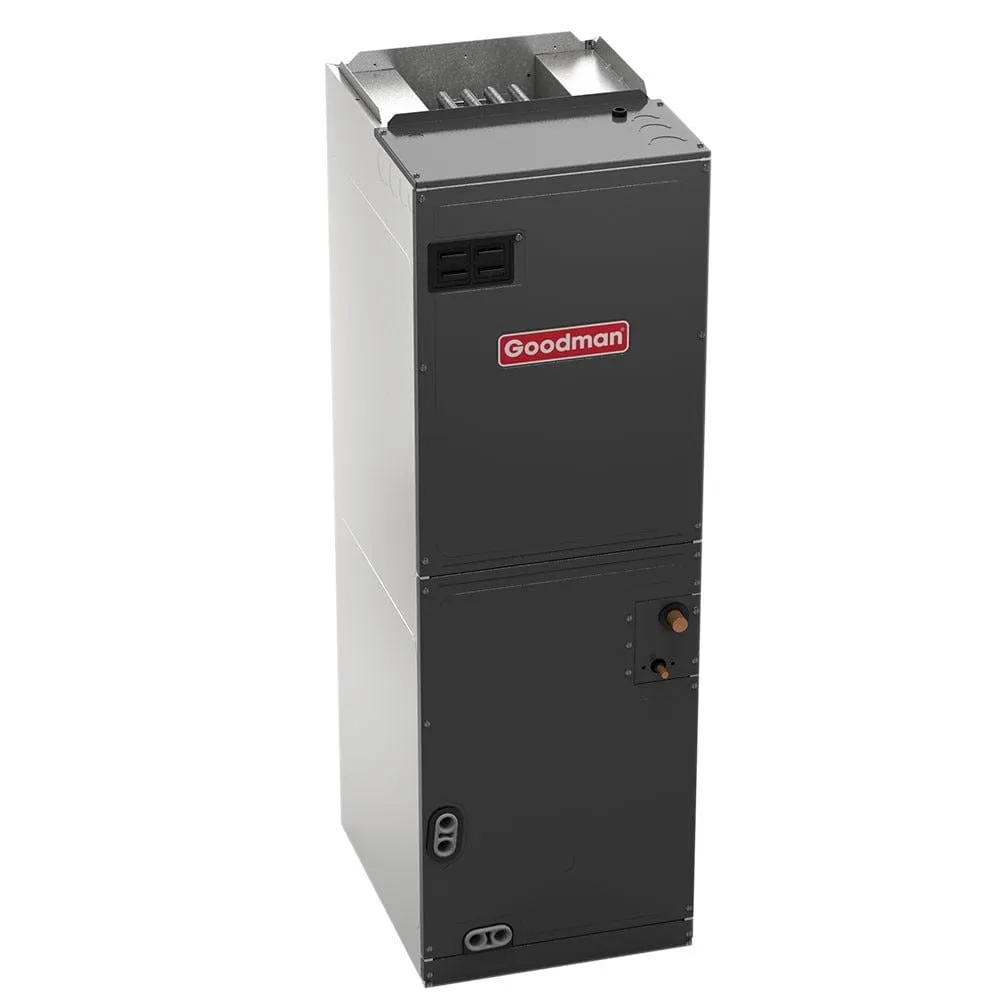

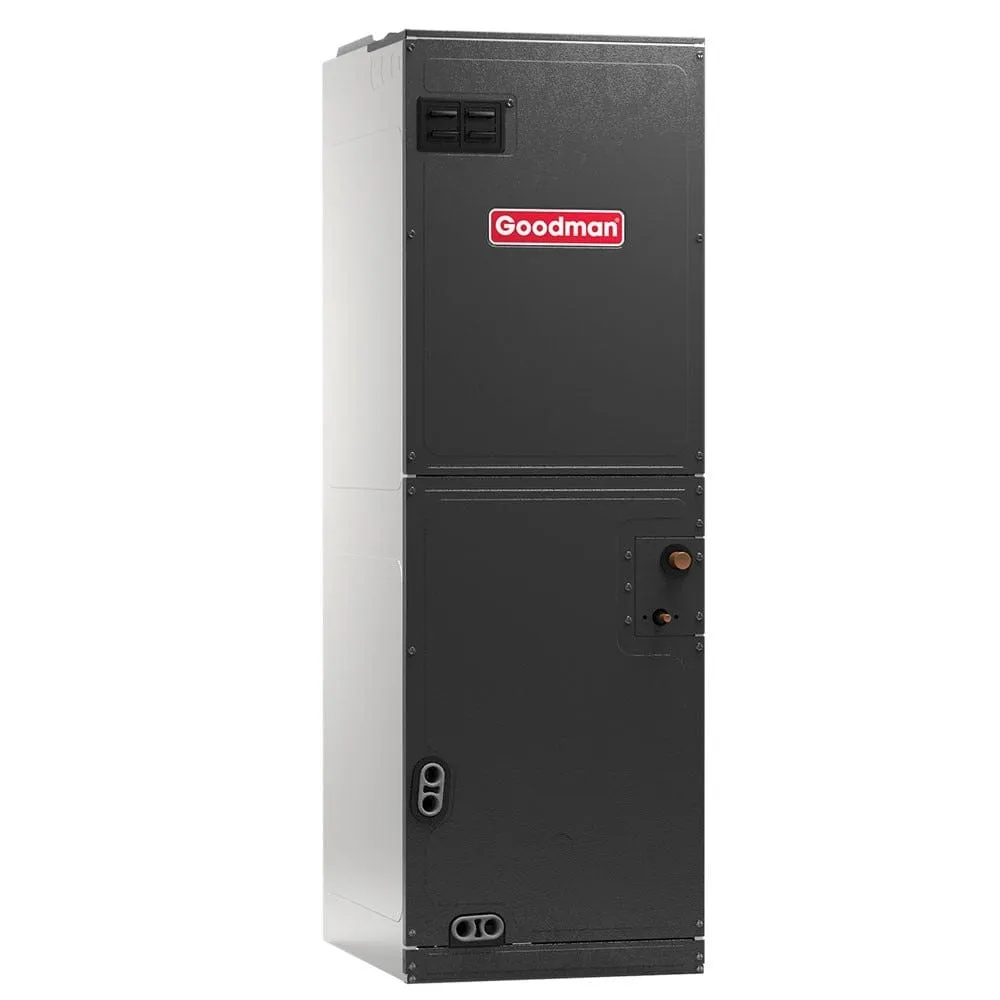

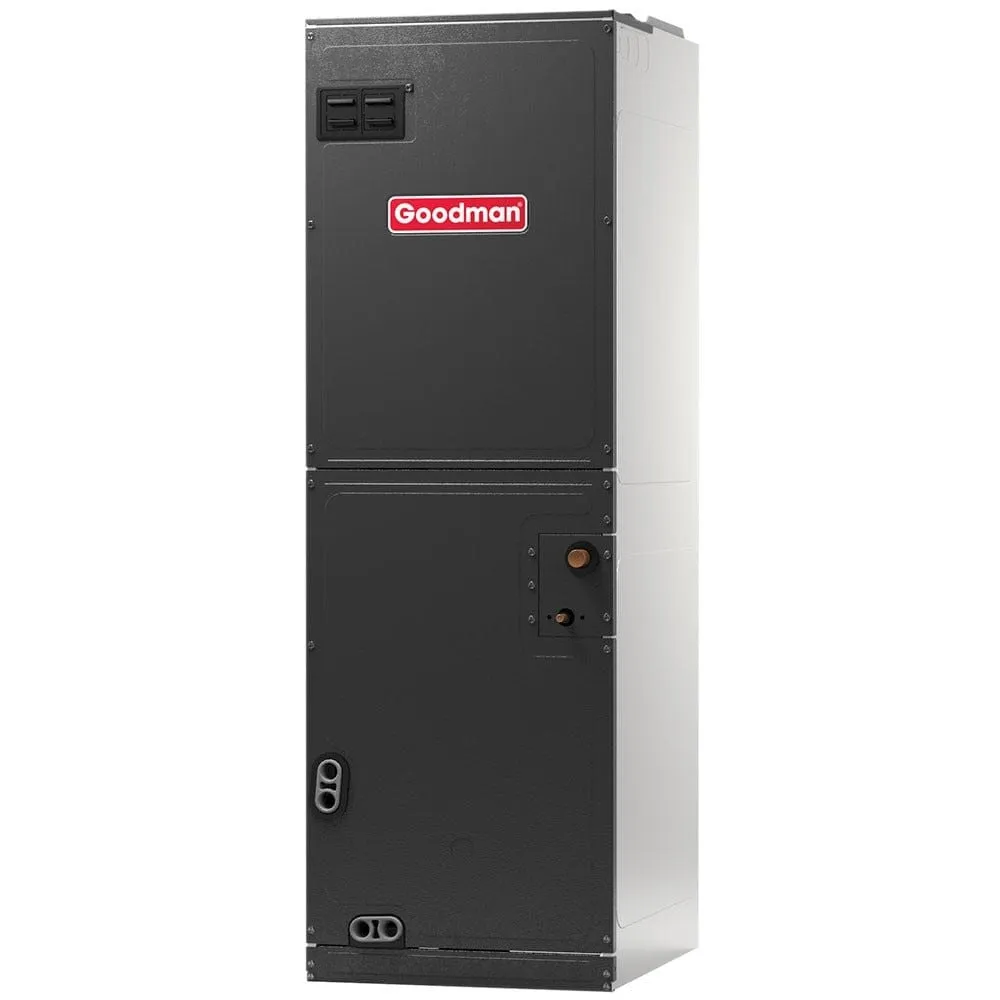

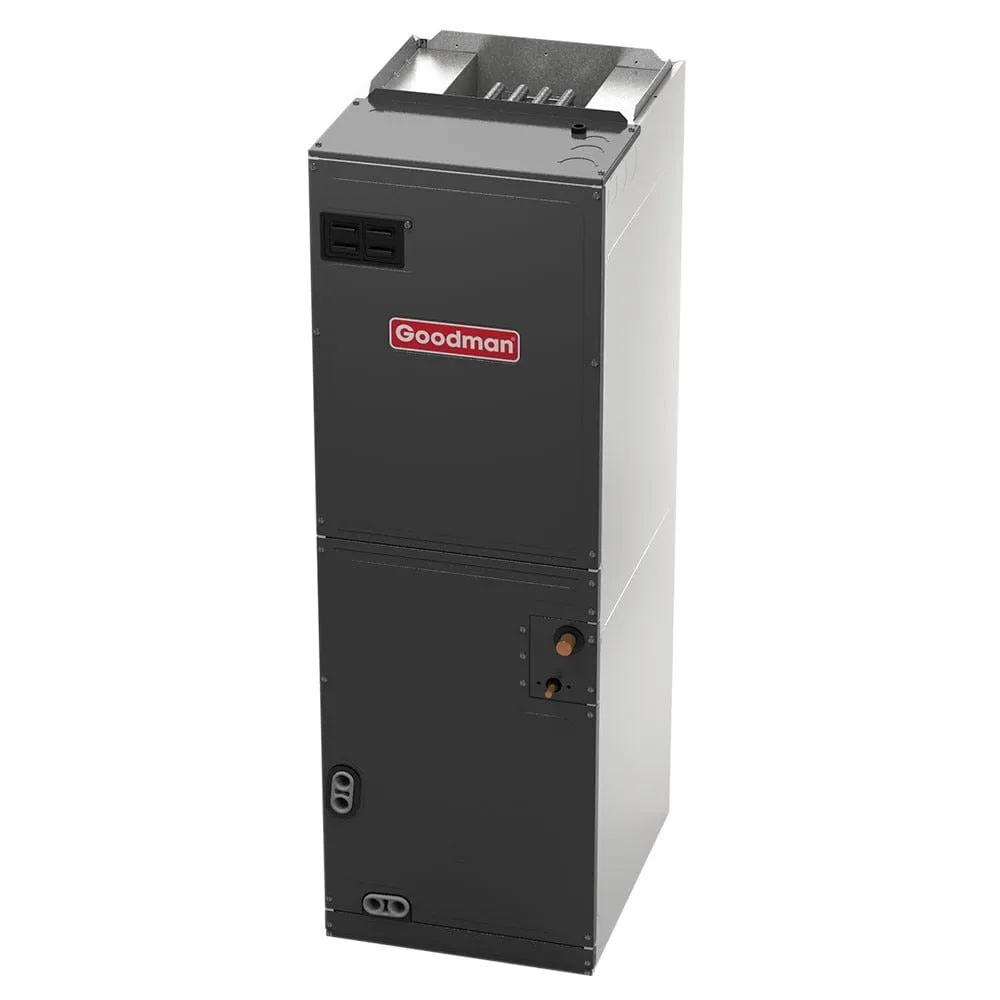

Goodman ARUF31B14 Air Handler Features:
-
Suitable For Use With The Refrigerants R-410A And R-22
-
All-Aluminum Evaporator Coil
-
Check Flowrater Expansion Device For Cooling-Only And Heat Pump Applications
-
Direct-Drive, Multi-Speed Motor
-
Transformer And Blower Time-Delay On All Units
-
AHRI Certified; ETL Listed
Specifications
| Model | GSX140241,ARUF31B14 |
|---|---|
| UPC | 663051521339 |
| AHRI Number | 201417992 |
| Bundle Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Bundle Cooling Capacity | 2 Ton |
| Bundle Cooling Efficiency | 14 SEER |
| EER | 11.5 |
| Goodman GSX140241 Air Conditioner Specifications | |
| Model | GSX140241 |
| UPC | 663051521339 |
| Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Compressor | Single Stage |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Product Height (in) | 27.5 |
| Product Length (in) | 26 |
| Product Width (in) | 26 |
| Cooling Efficiency | 14 SEER |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Weight (lbs) | 141.0000 |
| Goodman ARUF31B14 Air Handler Specifications | |
| Model | ARUF31B14 |
| UPC | 663051512474 |
| Air Flow Direction | Horizontal, Vertical |
| Configuration | Floor Mounted |
| Blower Motor | Multi Speed |
| Cooling Capacity | 2.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 15 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Product Height (in) | 53.438 |
| Product Length (in) | 21 |
| Product Width (in) | 17.5 |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Weight (lbs) | 100.0000 |
Additional Information
Goodman GSX140241 Air Conditioner Cabinet Features:
-

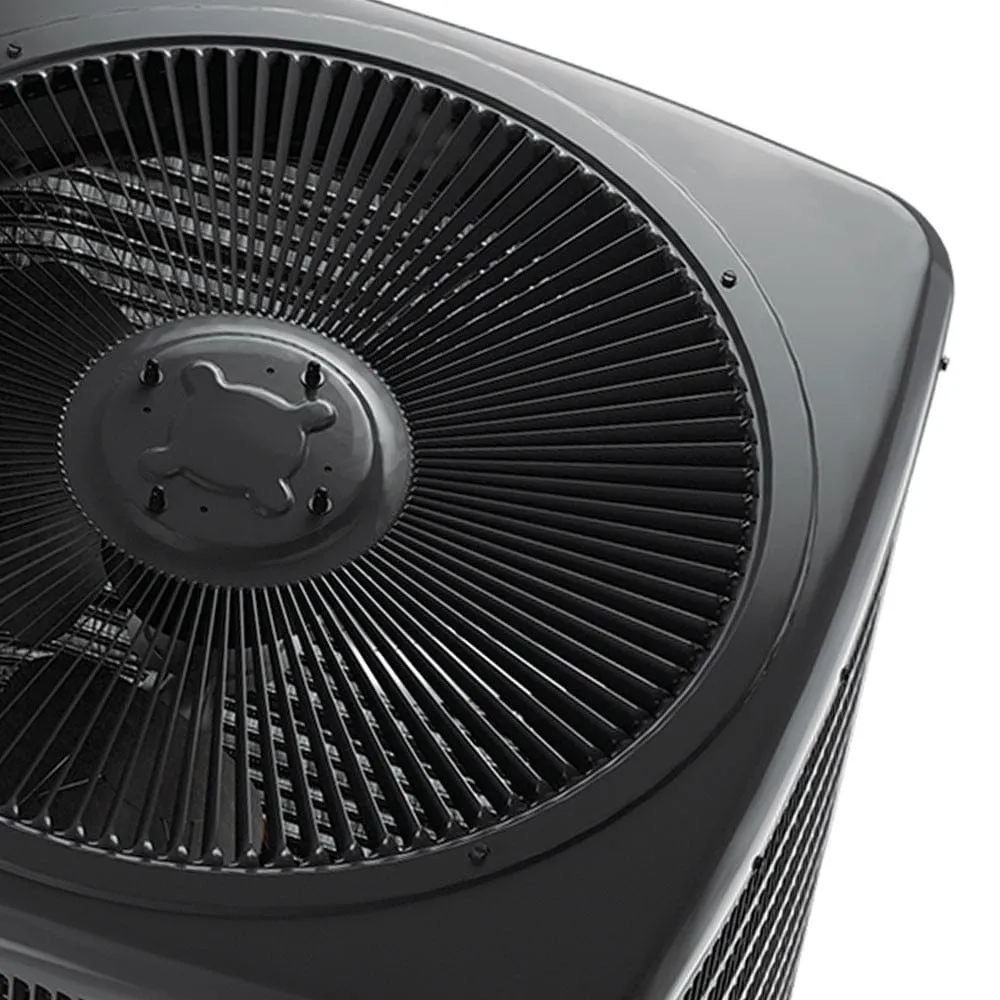

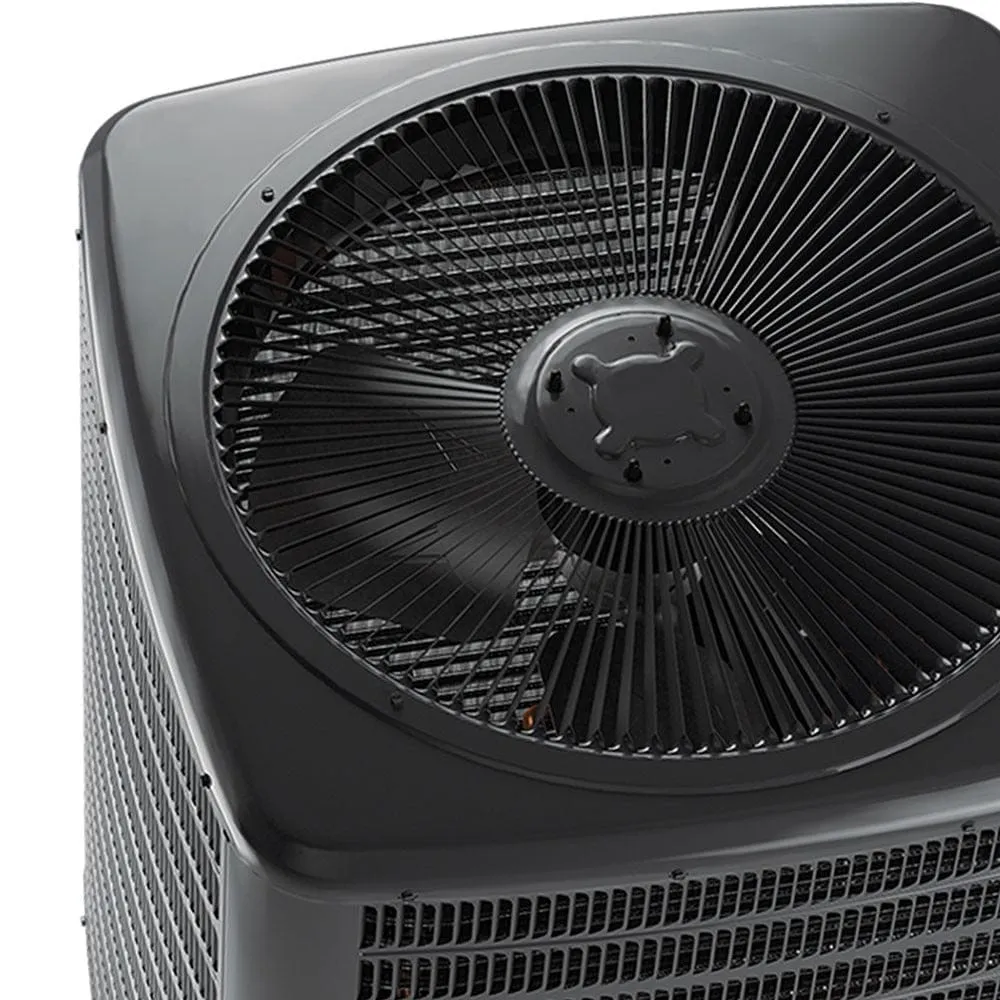

Goodman® Brand Louvered Sound Control Top Design
-
Steel Louver Coil Guard
-
Heavy-Gauge Galvanized-Steel Cabinet
-
Attractive Architectural Gray Powder-Paint Finish With 500-Hour Salt-Spray Approval
-
Top And Side Maintenance Access
-
Single-Panel Access To Controls With Space Provided For Field-installed Accessories
-
When Properly Anchored, Meets The 2010 Florida Building Code Unit Integrity Requirements For Hurricane-Type Winds (Anchor Bracket Kits Available.)

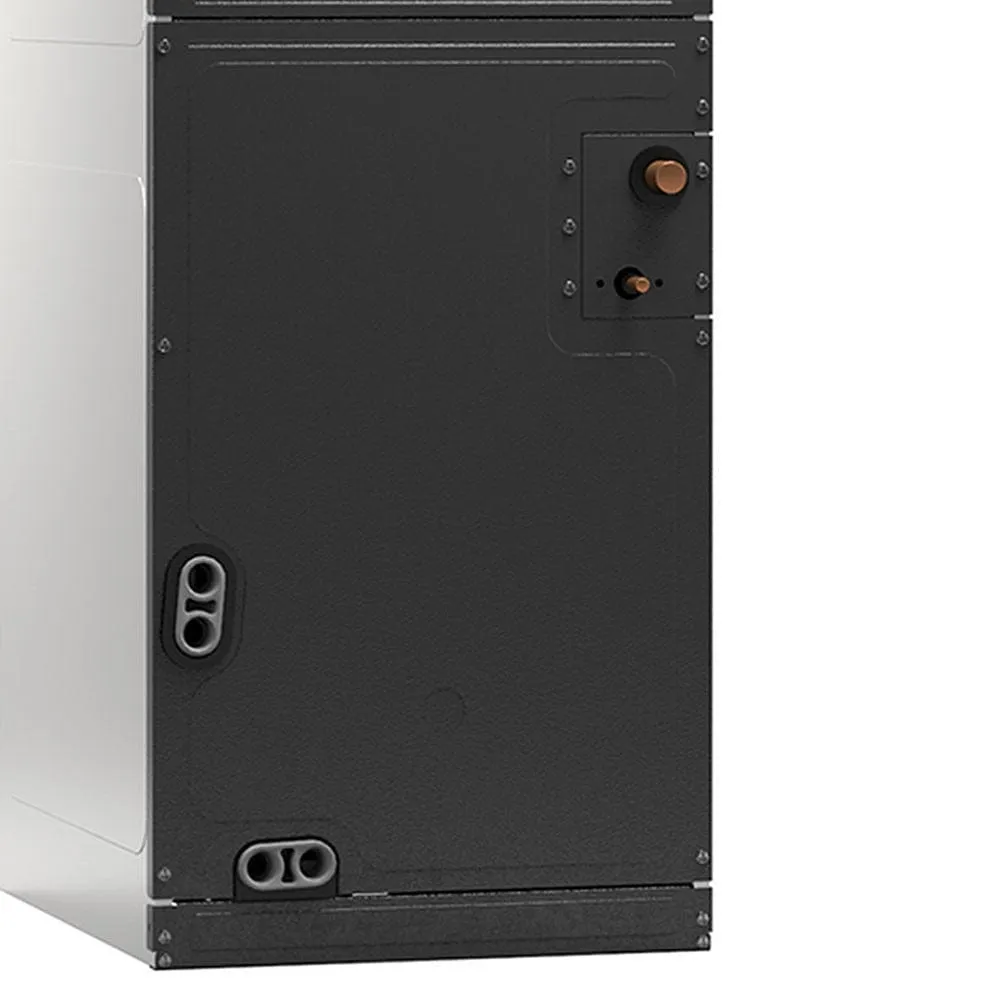

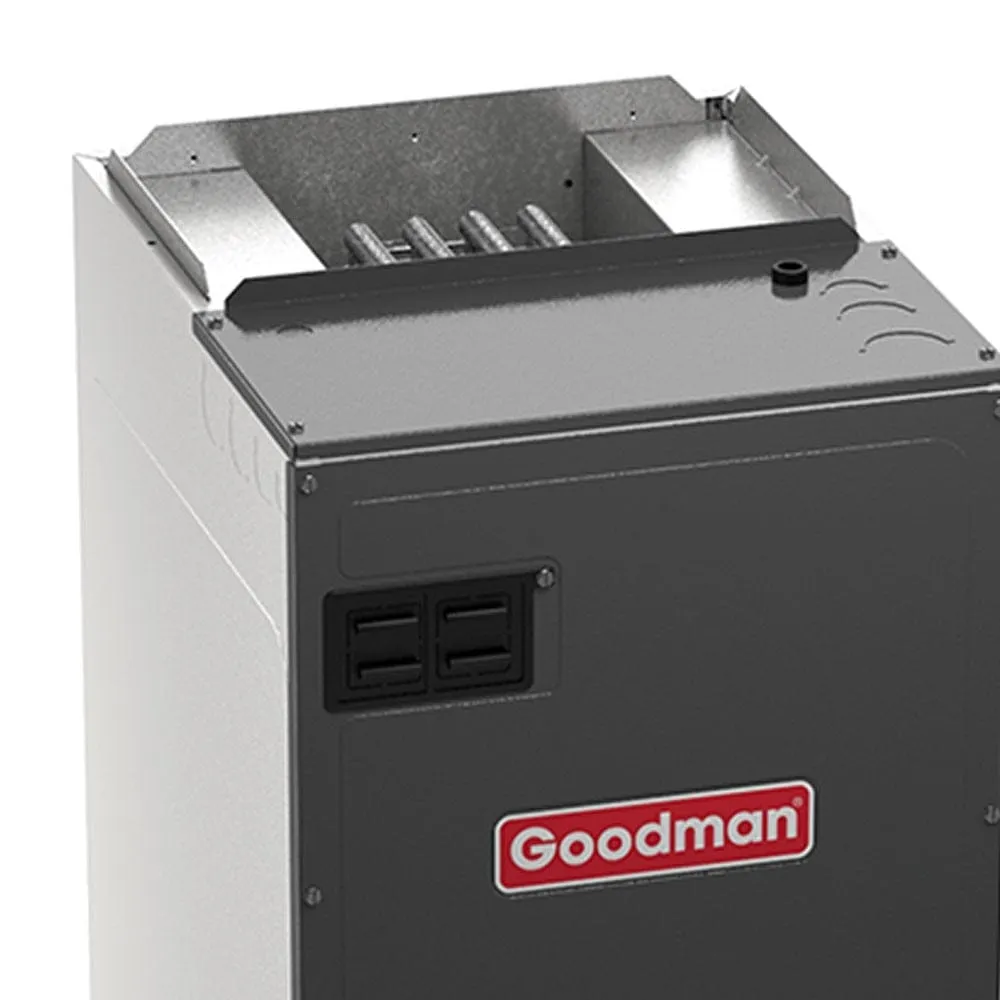

Goodman ARUF31B14 Air Handler Cabinet Features:
-
Rust-resistant, Fully Insulated Steel Cabinet
-
Galvanized, Leather Grain-Embossed Finish
-
Attractive Architectural Gray Painted Front Panels
-
Built-In Coil Has Horizontal, Vertical, And Downflow Drain Pans With Secondary Drain Connections
-
Built-In Filter Rack For 1" Filter (Filter Not Included)
-
Power Supply Entry At Top; Low-Voltage Entry On Left Side And Top
