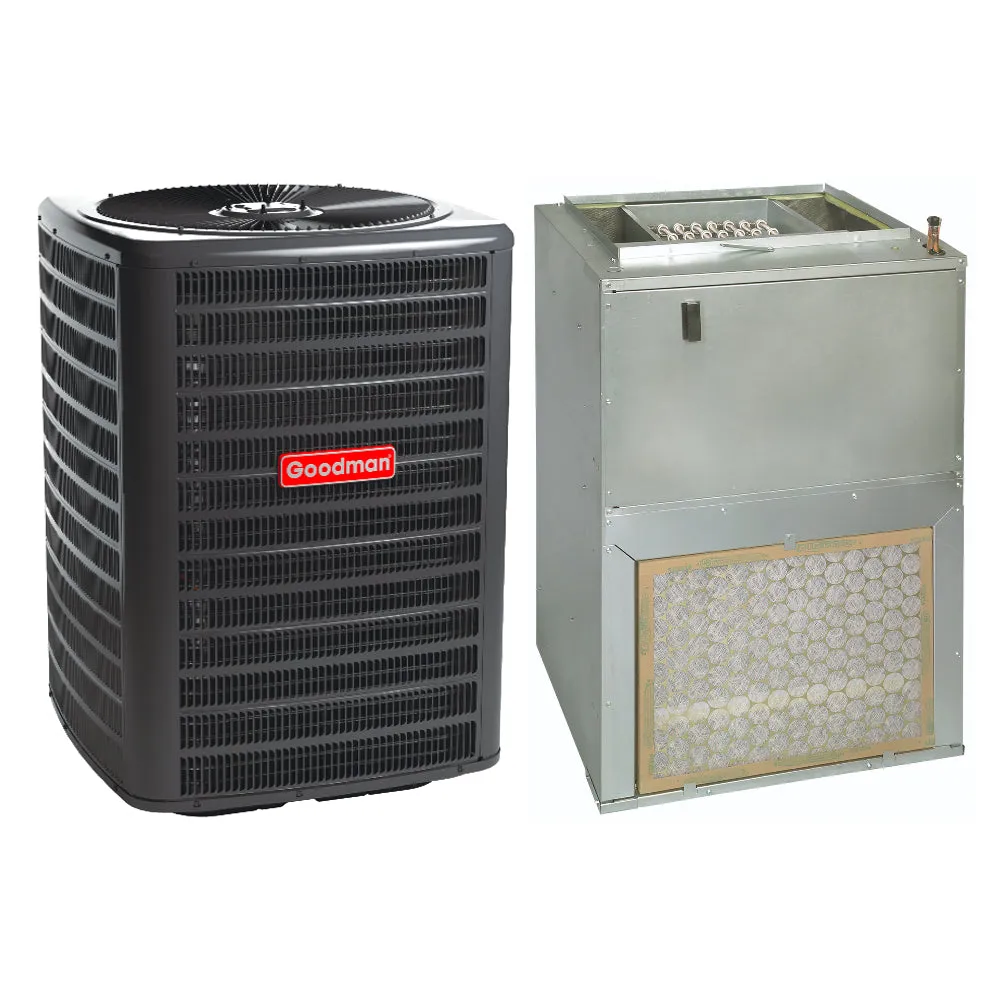

AHRI Certified Match: 214860194

Standard Features

• High-Efficiency Scroll Compressor
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• 5mm diameter copper tube/ enhanced aluminum fin coil
• Service valves with sweat connections and easy-to-access gauge ports
• Enclosed contactor
• Ground lug connection
• Capacitors with extended life
• High-pressure switch
• AHRI Certified
• ETL Listed

Cabinet Features

• Removable grille style top style grill design compatible with UL 60335-2-40
• Heavy-gauge galvanized-steel cabinet
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

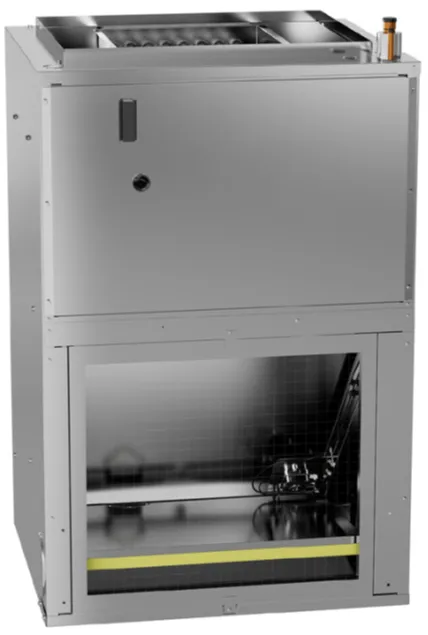

Product Features

• AWST Models: Equipped with a fully adjustable TXV
• Direct-drive, multi-speed motors allows air volume variation for heating/cooling
• Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
• Aluminum tubing coils on all models
• Cabinet air leakage less than 2.0% at 1.0 inch H?O when tested in accordance with ASHRAE standard 193
• UL 60335 2-40 Compliant
• Factory installed R-32 sensor designed for the lifespan of the coil
• Cabinet air leakage less than 1.4% at 0.5 inch H?O when tested in accordance with ASHRAE standard 193
• Factory-installed pull-type disconnect
• Thermoplastic drain pan with bottom primary and secondary drain connections
• Built-in filter rack (filter included)
• Large chassis (2½- and 3-ton units) – front return only
• Small chassis (1½- and 2-ton units) – front or bottom return
• Wall-hanging bracket provided
• AHRI Certified; ETL Listed
