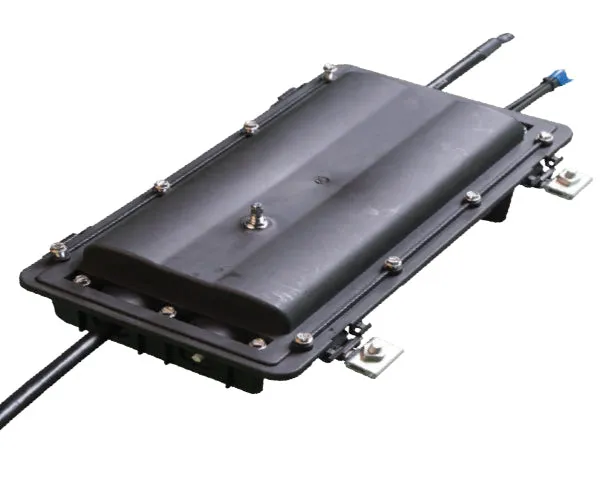

Single In Line Fiber Splice Enclosure with Flat Cover

The Single In Line Fiber Splice Enclosure easily handles in-field expansion with its versatile design. Starting with a 48 splice count capacity (96 ribbon splices), the simple addition of a new base and cover that has a removable sealed window opening can double its splice capacity. This inline enclosure comes with a flat cover.

For grommets, bulkhead adapters, grounding kits and other accessories that work with this our product, check out our Fiber Optic Splice Enclosure Accessories page.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with and

Features

Tested in accordance with Telcordia GR-771-Core.
Interchangeable covers—comes with a flat cover.
Holds up to 24 patch and splices.
With bulkheads, patch capacity can fit either (12) SC adapters or (24) LC adapters.
Removable seal window opening enables the splice capacity to double.

Specifications

Dimensions

Height: 5.747"
Length: 18.426"
Width: 10.571"

Physical Properties

Splice Capacity: 48 (96 Ribbon)
Patch & Splice Capacity: 24
Mounting: Integrated Pole and Wall, Aerial, Pedestal
Drop Ports: None
Material: UV Stabilized Thermal Engineering Grade Plastic
