Product Details
＋

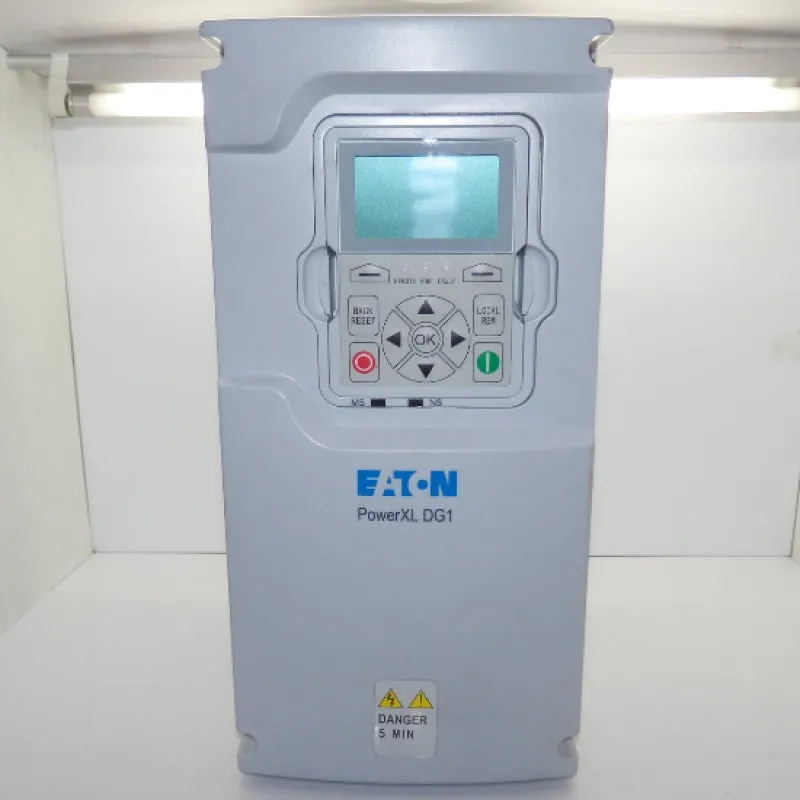

The DG1 general purpose drives are part of Eaton’s next generation PowerXL Series of adjustable frequency drives specifically engineered for today’s more demanding commercial and industrial applications. The power unit makes use of the most sophisticated semiconductor technology and a highly modular construction that can
be flexibly adapted to meet the customer’s needs. The control module was designed to include today’s standard communication protocols and I/O while still having the modularity to add additional option cards. Eaton’s patented Active Energy Control is also a standard feature on DG1 drives, offering customers increased efficiency, safety and reliability. These drives continue the tradition of robust performance and raise
the bar on features and functionality, ensuring the best solution at the right price.
Specifications:
- Current Rating: 2.2 A
- Display Type: LCD
- Enclosure Rating: IP54/type 12 enclosure
- Family Name: PowerXL Family
- For Use With: 3-Phase Motors
- Frequency: 50-60 Hz
- Height: 12.7 Inch
- Horsepower Rating: 1 HP
- Input Voltage: 400V, 380-500V(-15%, 10%)
- IP Rating: IP21
- Length: 17.1 in
- Material: Coated board
- NEMA Rating: NEMA 1
- Number of Slots: (2) Expansion slots
- Phase: 3 Phase
- Power Rating: 0.75 kW
- Protection: Internal EMC filter and DC choke
- Series: DG1 Series
