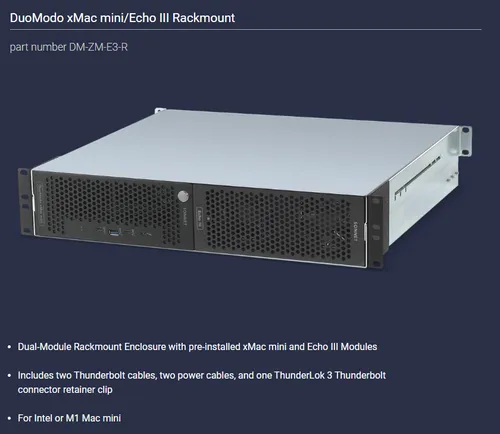

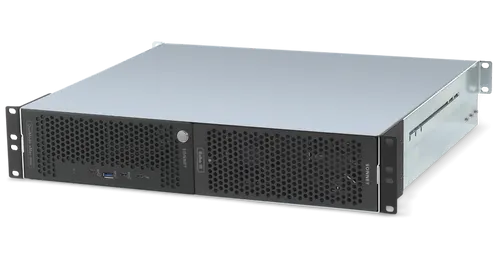

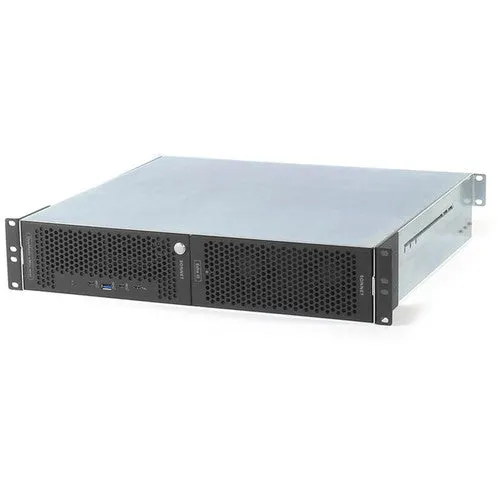

DuoModo xMac mini/Echo III Rackmount System. Mac mini Integration Three PCIe Slots

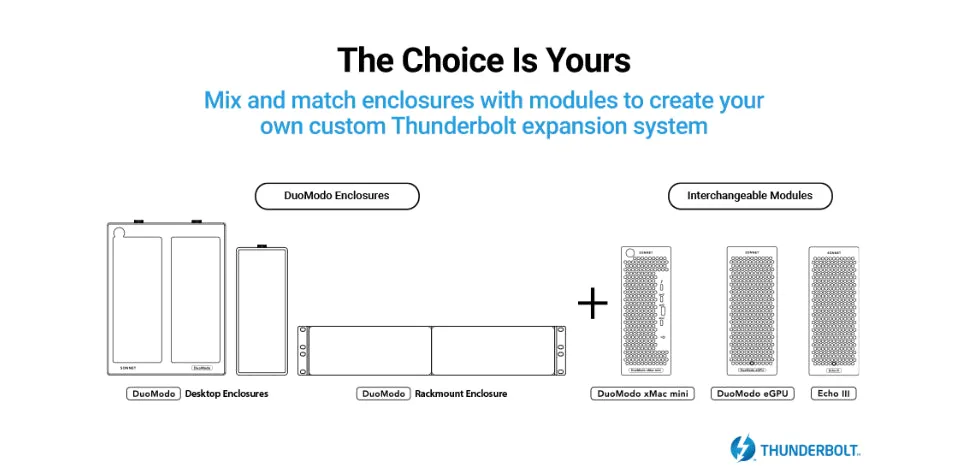

The pre-configured DuoModo™ xMac™ mini/Echo™ III Rackmount System integrates a Dual-Module Rackmount Enclosure with one xMac mini module and one Echo III module.

Key Features

System Configuration: For Intel® or M1/M2 Mac mini

Dual-Module Desktop Enclosure

• Dual-module Enclosure
• Rugged Aluminum Housing
• 6.9 inches Wide x 16.7 inches Deep x 9.1 inches High

xMac mini Module

• Securely Holds an Intel or M1/M2 Mac mini (sold separately) in a Rugged Steel Frame
• Open Access to the Computer’s Ports in Back
• Built-in Thunderbolt™ 3 Dock
• Four Front Panel Ports Include One Thunderbolt 3 (40Gbps) Port, Two USB 3.2 (10Gbps) Type-C Ports, and One USB 3.2 (10Gbps) Type A Port
• Two Internal M.2 NVMe SSD Sockets – Add up to 16TB (SSDs sold separately)
• One Internal USB 3.2 (10Gbps) Type A port (for Securely Connecting an iLok USB-A, Thumb Drive, or Bus-powered USB Storage Drive)
• Internal Thunderbolt 3 (40Gbps) Port Connects Dock to the Mac mini
• Temperature-controlled, Variable-Speed Fan Offers Quiet Operation
• Power Cable Included
• Thunderbolt 3 (40Gbps) Cable Included

Echo III Module

• Three Versatile PCIe Slots
• One x16 plus Two x8 PCIe Slots
• Supports Three Full-height, Full-length Thunderbolt-compatible, non-GPU PCIe Cards (  of supported PCIe Cards)
• AVID QUALIFIED – Supports up to Three Avid Pro Tools | HDX PCIe Cards
• Built-in 400W Power Supply with 75W Auxiliary Power Connector
• Powers On and Off Automatically with Connected Computer
• Dual Temperature-controlled, Variable-Speed Noctua fans rated at 17 dbA
• Two Thunderbolt 3 Ports
• 40Gbps Thunderbolt 3 Interface Offers 2750 MB/s of PCIe Bandwidth to the Installed PCIe Cards
• Power Cable Included
• Thunderbolt 3 (40Gbps) Cable Included
• ThunderLok 3 Thunderbolt Connector Retainer Clip Included

Why Sonnet?

• 2-year Product Warranty
• Free Lifetime Customer Technical Support
• Designed and Made in the USA

Specifications

• Part Number: DM-ZM-E3-R
• Warranty: 2-year
• Form Factor: 2U rackmount expansion system
• Dimensions (WxDxH): 19 x 16.5 x 3.5 in (48.3 x 41.9 x 8.9 cm)
• Weight: 24 lbs (10.9 kg)
• Compliance:
  • RoHS 3 (Directive 2015/863)
  • IEC62368-1 and IEC62368-2 Safety
• Package Contents:
  • Dual-Module Rackmount Enclosure
  • xMac mini Module
  • Echo III Module
  • Region-specific power cable x2 (for US, Australia, Europe, Japan, Switzerland, or UK)
  • 0.5-meter Thunderbolt cable x2
  • ThunderLok 3 Thunderbolt connector retainer clip
  • Extension rails for rack depth 16-24 inches
  • Documentation

Compatibility

• For Intel or M1/M2 series Mac mini
