Experience The Ultimate Indoor Comfort With Daikin's Energy-Efficient And Eco-Friendly Air Conditioning Units.

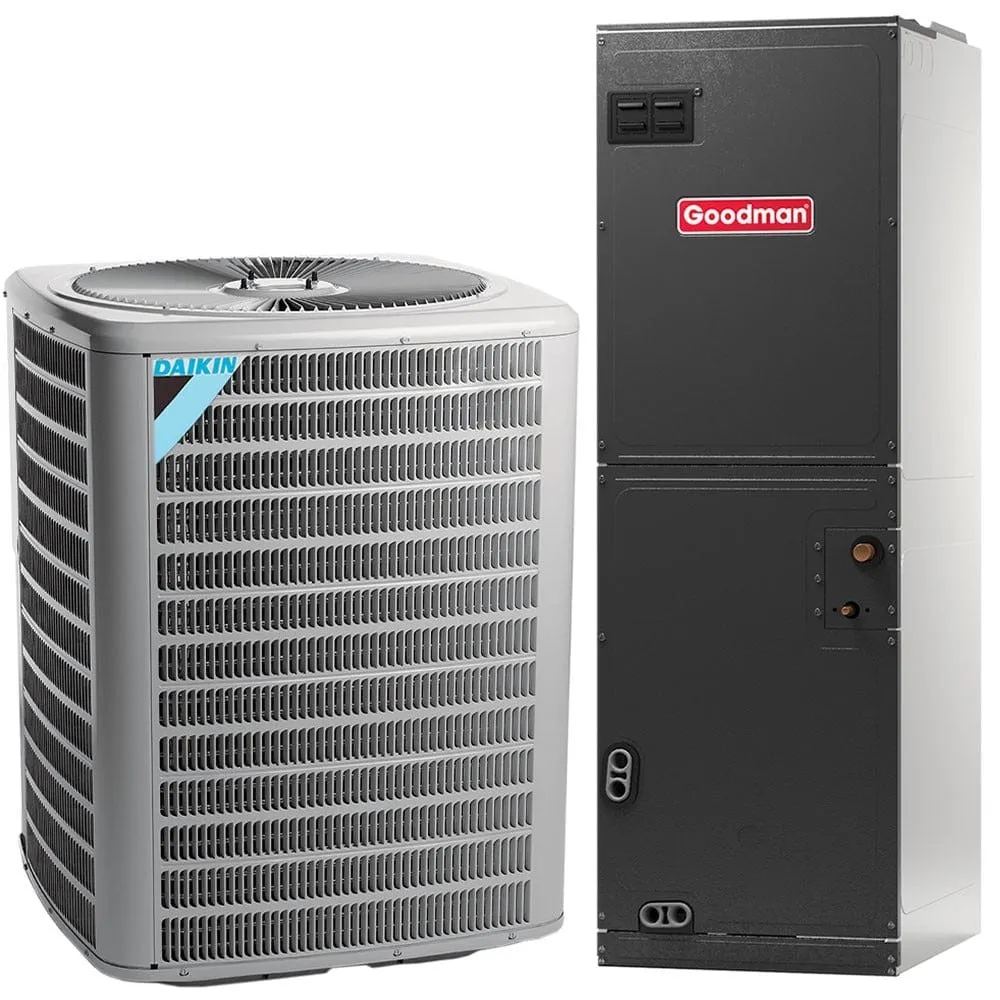

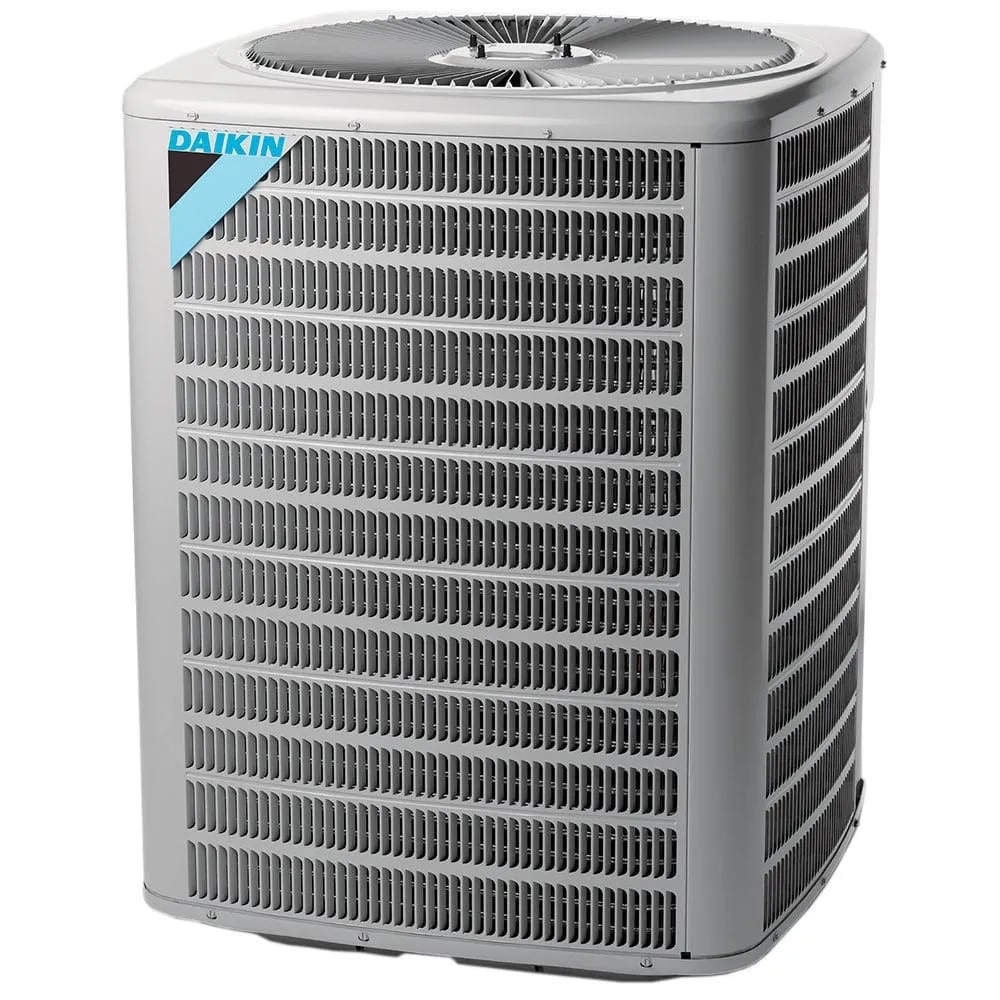

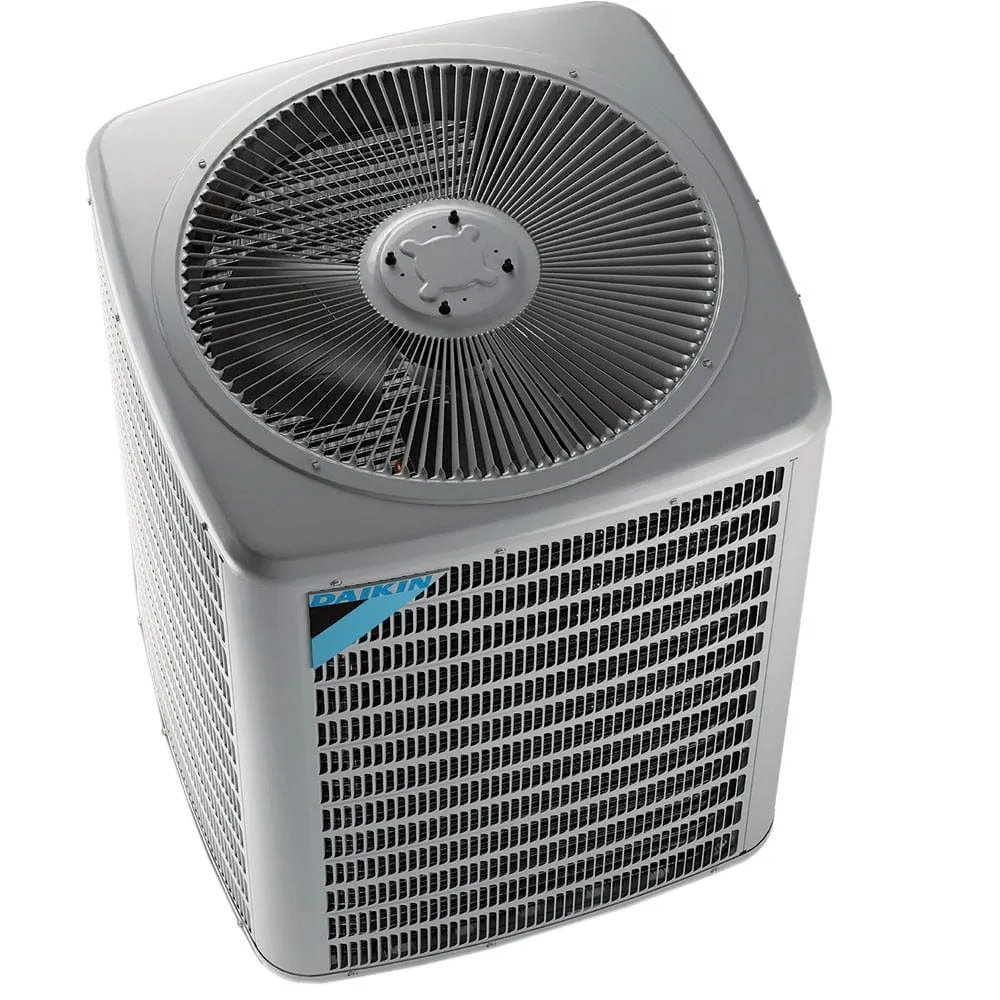

A retail store or corporate office is a busy place. With this Daikin Commercial Central Air Conditioner Split System, there is no reason they can't be comfortable spaces too. The Daikin DX13SA0603 condenser brings 5 tons of power to the job with an energy efficient compressor, and a copper tubing/aluminum fin coil coil designed to maximize surface area. A UV-resistant powder-paint finish gives this unit a quality look.

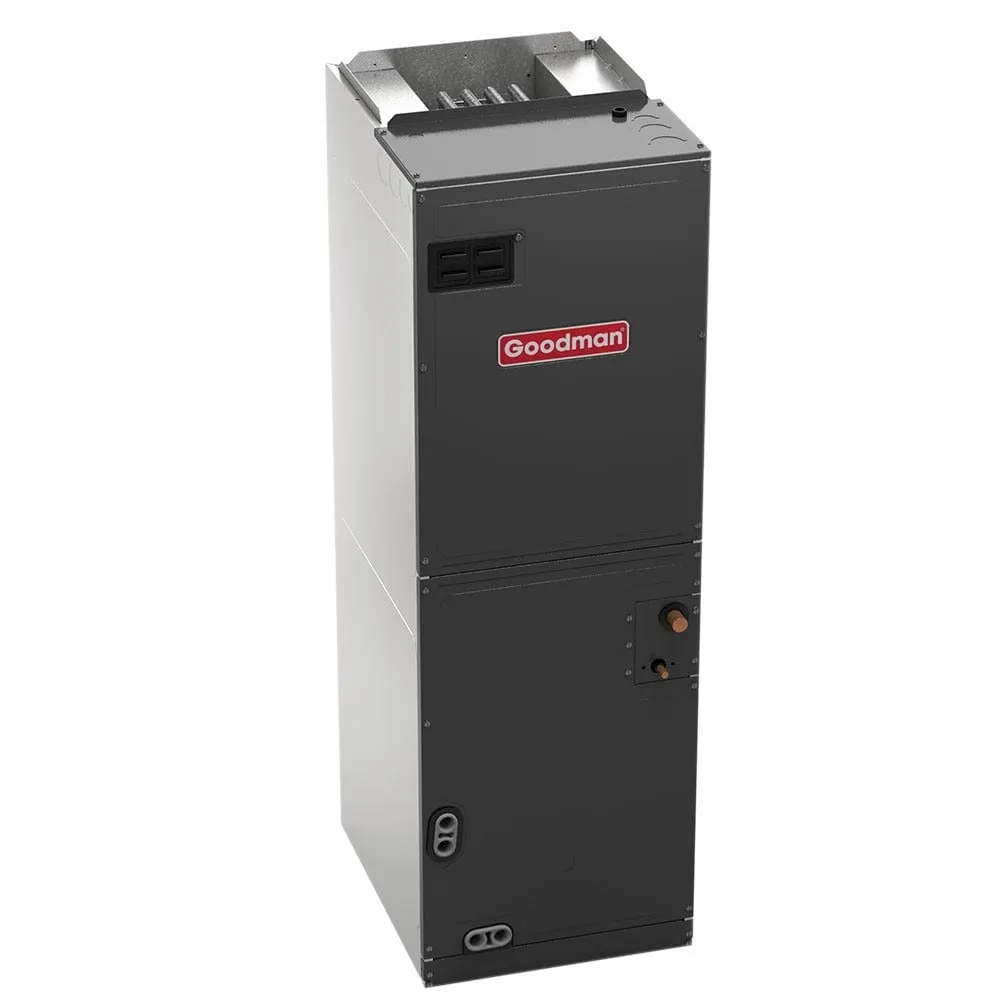

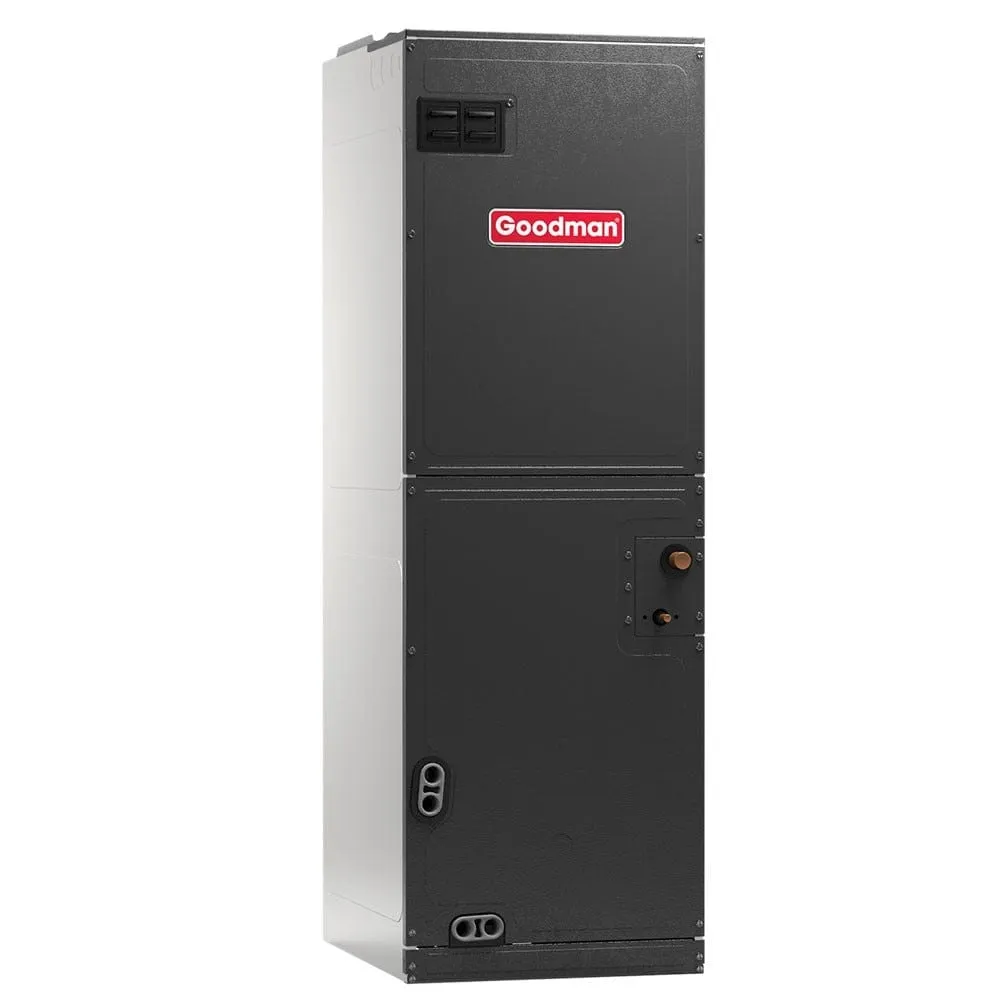

Inside, the ARUF61D14 air handler installs in your choose of configurations---horizontal, upflow, or downflow.

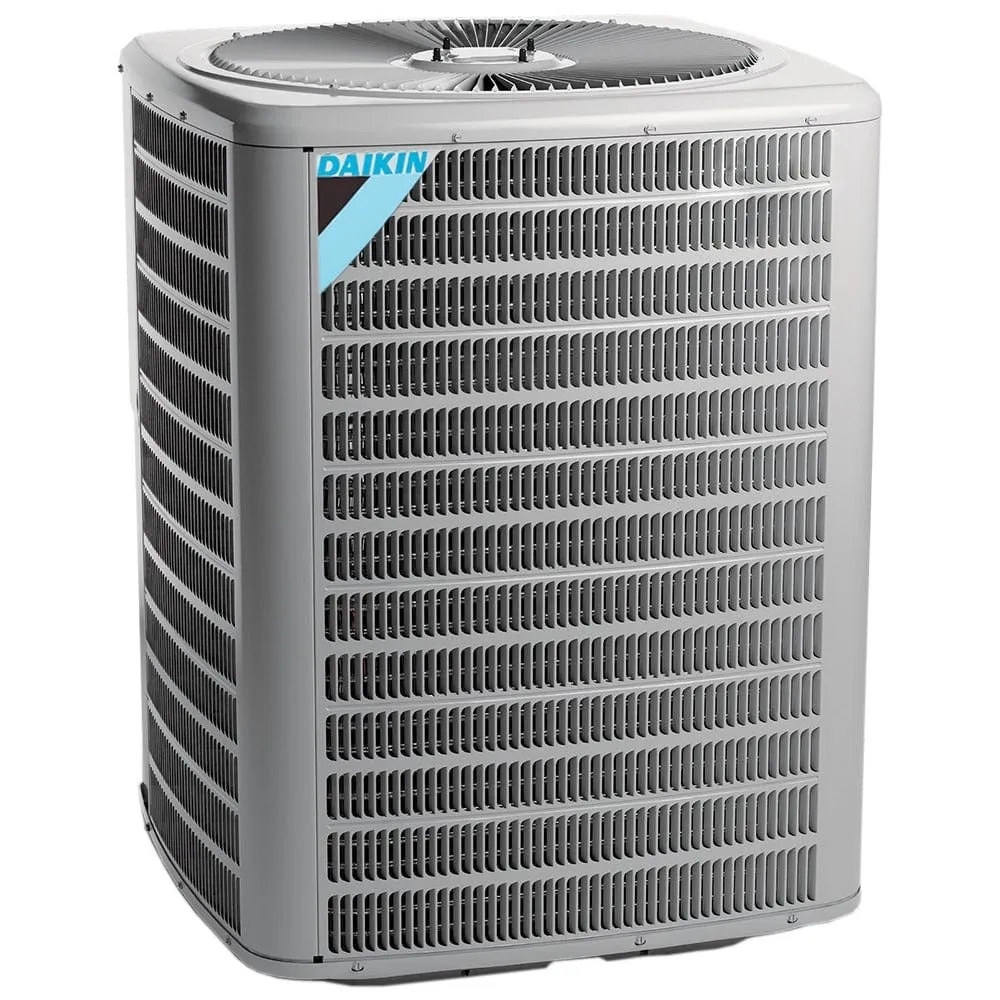

Daikin DX13SA0603 5 Ton Condenser Features:
-
Energy-efficient compressor
-
Factory-installed filter drier
-
Copper tube/ enhanced aluminum fin coil
-
Service valves with sweat connections and easy-access gauge ports
-
Contactor with lug connection
-
Ground lug connection
-
AHRI Certified
-
ETL Listed

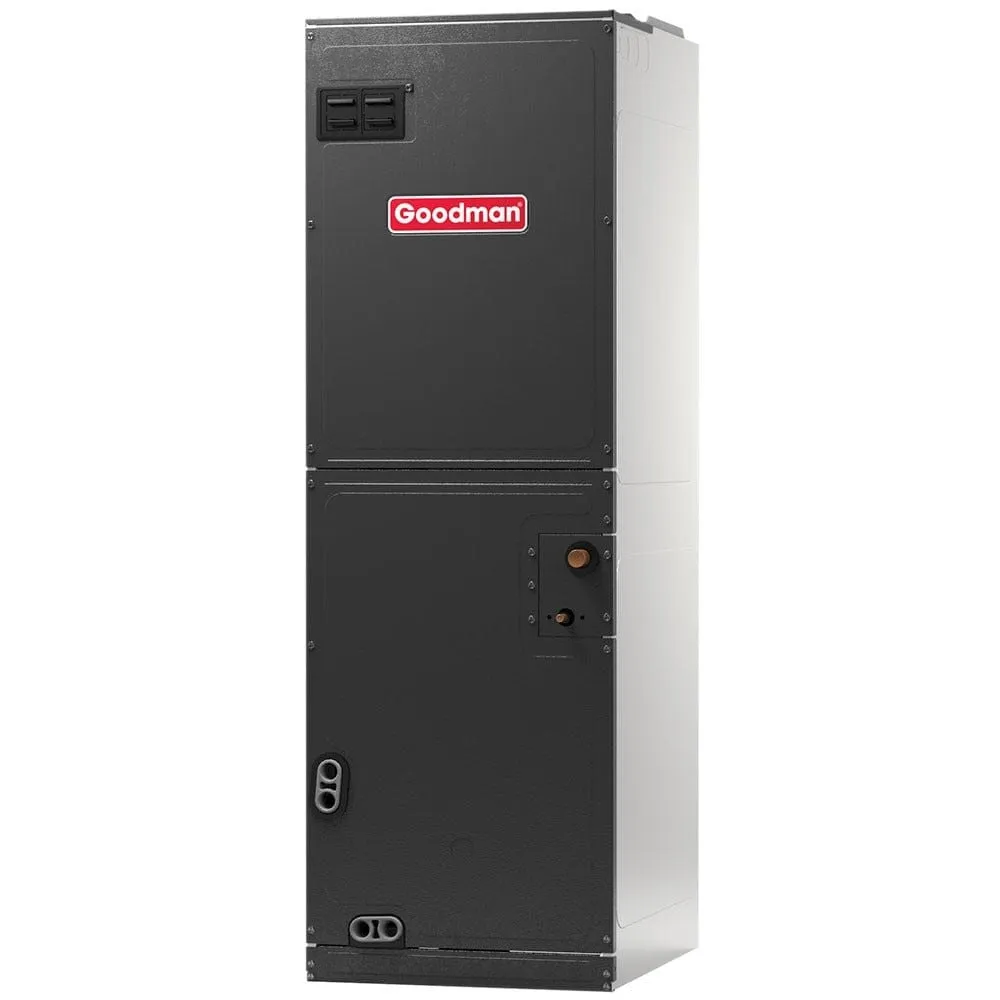

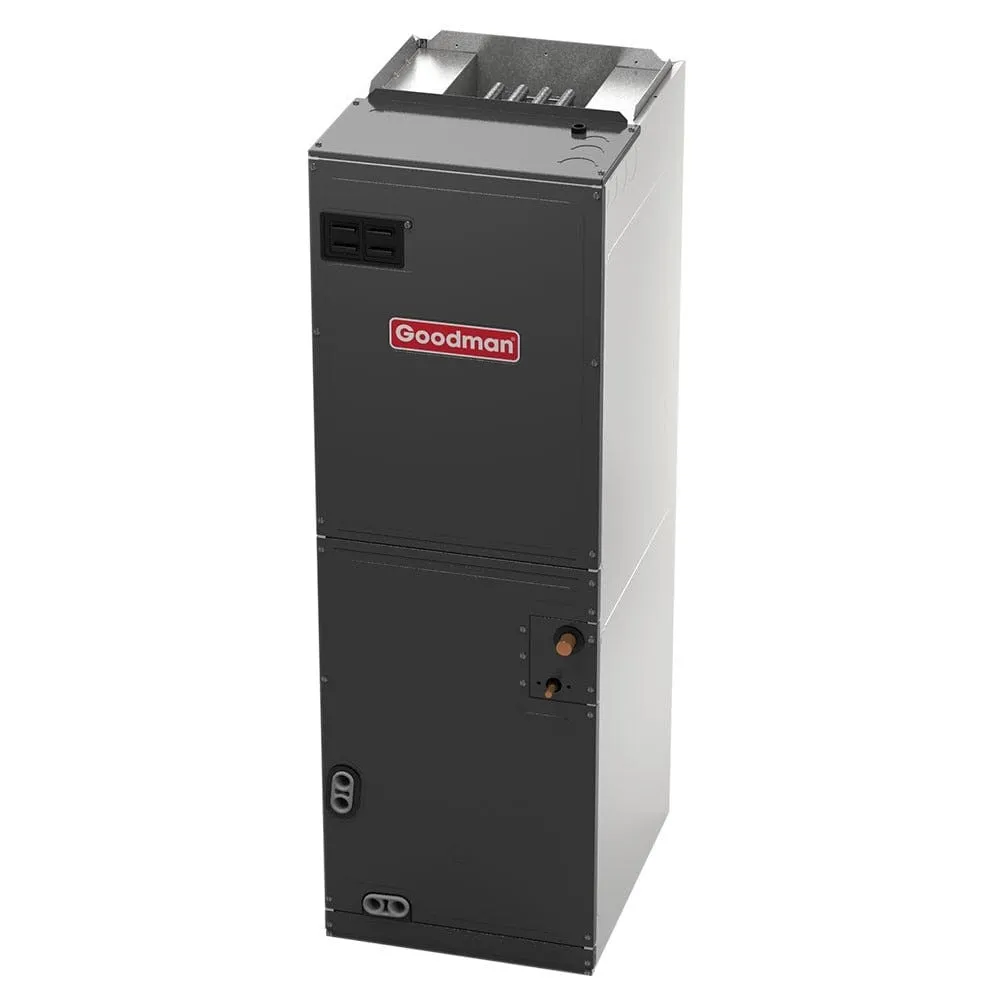

Goodman ARUF61D14 Air Handler Features:
-
Suitable For Use With The Refrigerants R-410a And R-22
-
All-aluminum Evaporator Coil
-
Check Flowrater Expansion Device For Cooling-only And Heat Pump Applications
-
Direct-Drive, Multi-speed Motor
-
Transformer And Blower Time-delay On All Units
-
Ahri Certified; ETL Listed
Specifications
| Model | DX13SA0603,ARUF61D14 |
|---|---|
| UPC | 663051540620 |
| AHRI Number | 8000271 |
| Bundle Avg Coverage Area | 2,000 - 3,000 Sq Ft |
| Bundle Cooling Capacity | 5 Ton |
| Bundle Cooling Efficiency | 13 SEER |
| EER | 11 |
| Daikin DX13SA0603 5 Ton Condenser Specifications | |
| Model | DX13SA0603 |
| UPC | 663051540620 |
| Avg Coverage Area | 2,000 - 3,000 Sq Ft |
| Compressor | Single Stage |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 3-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 30 amps |
| Product Height (in) | 39 |
| Product Length (in) | 36 |
| Product Width (in) | 36 |
| Cooling Efficiency | 13 SEER |
| Suction Line Size | 1 1/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
| Weight (lbs) | 229.0000 |
| Goodman ARUF61D14 Air Handler Specifications | |
| Model | ARUF61D14 |
| UPC | 663051512504 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Configuration | Floor Mounted |
| Blower Motor | Multi Speed |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 20 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Product Height (in) | 58 |
| Product Length (in) | 21 |
| Product Width (in) | 24.5 |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Weight (lbs) | 155.0000 |
Additional Information

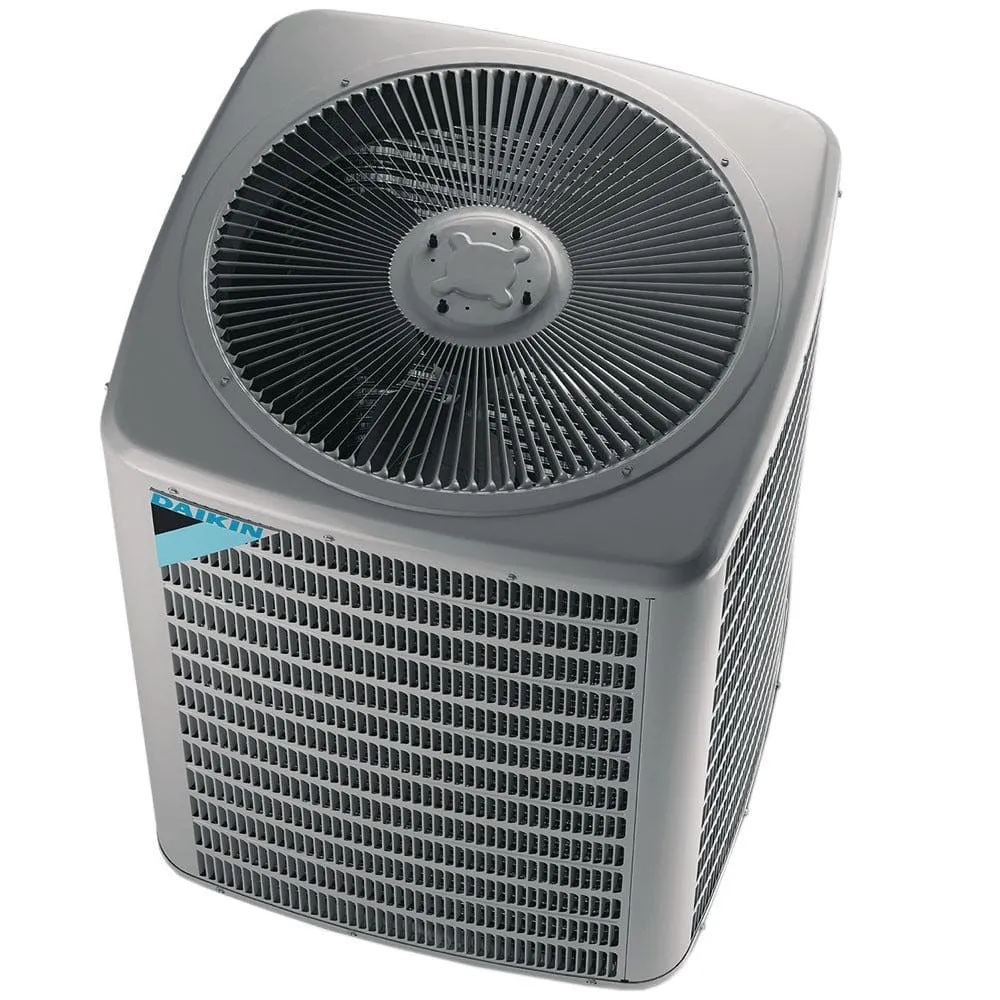

Daikin DX13SA0603 5 Ton Condenser Cabinet Features:
-

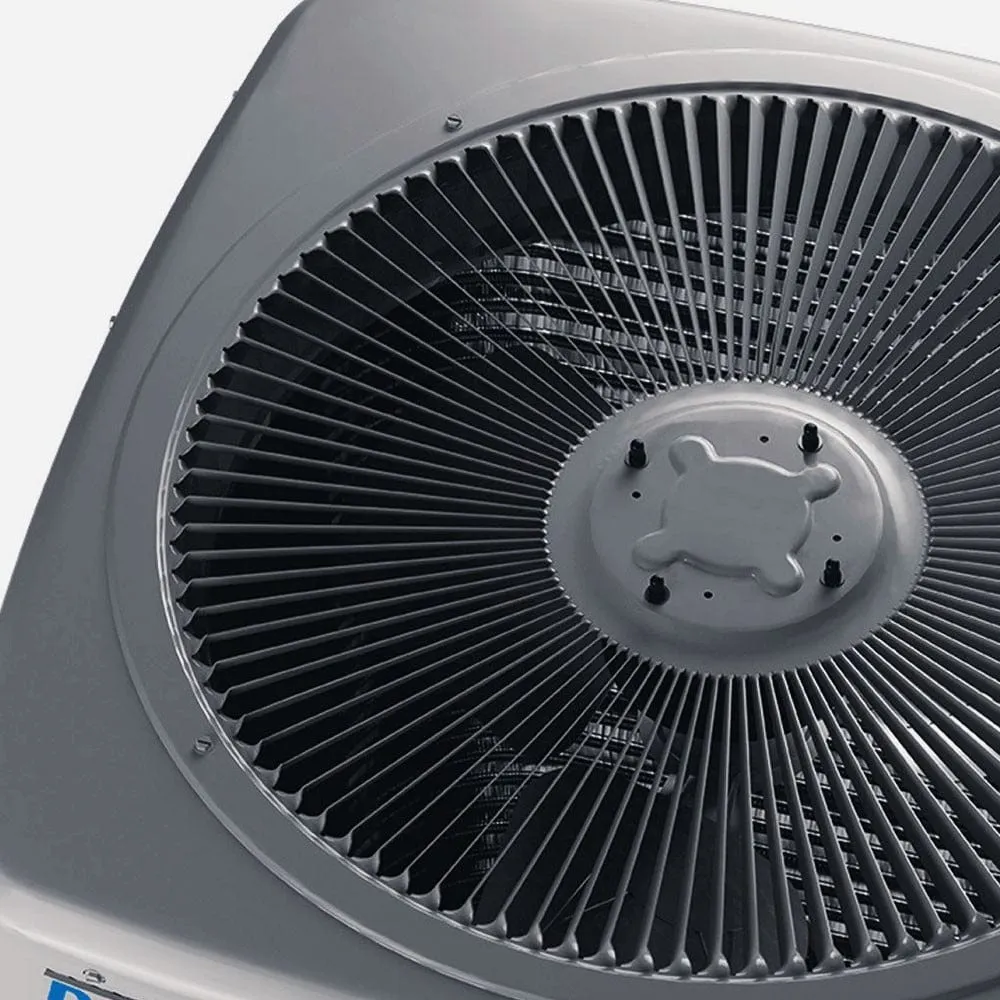

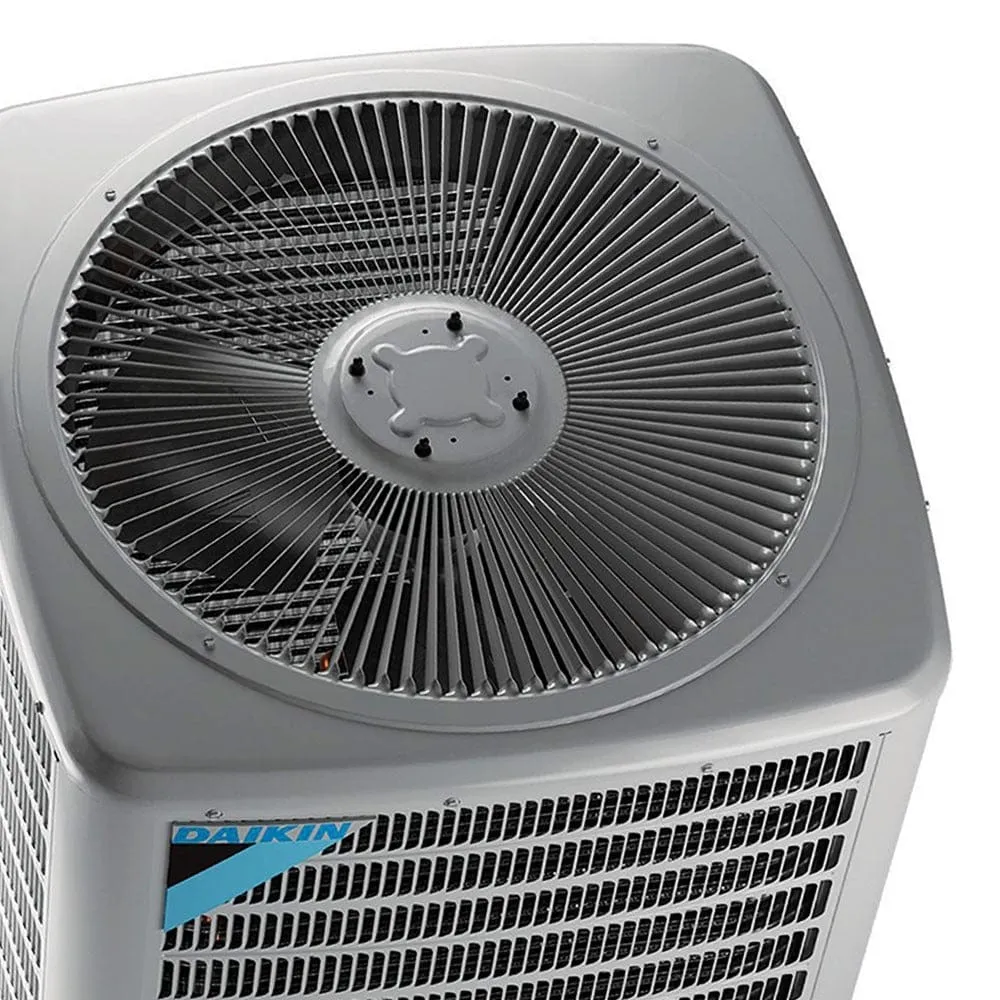

Innovative louvered sound control top design
-
Steel louver coil guard
-
Heavy-gauge galvanized-steel cabinet
-
Attractive Nickel Gray powder-paint finish
-
Top and side maintenance access
-
Single-panel access to controls with space provided for field-installed accessories
-
When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds

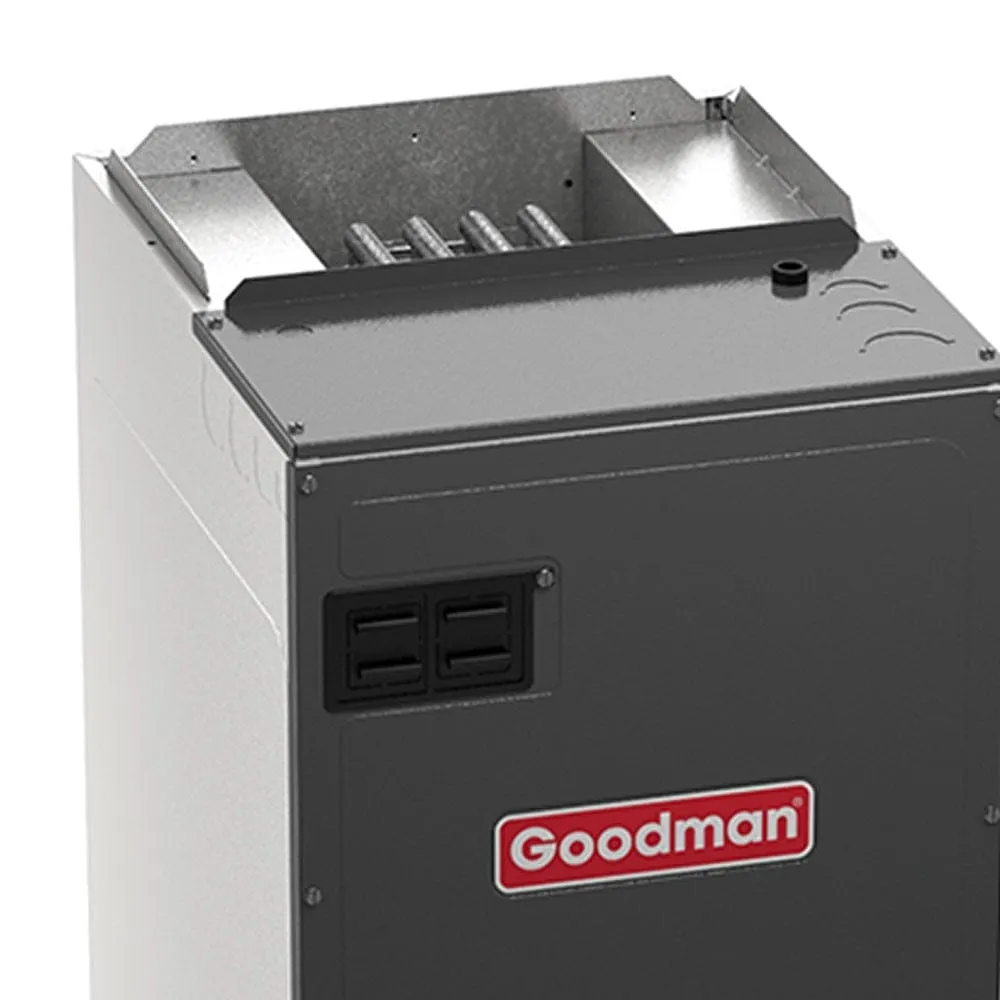

Goodman ARUF61D14 Air Handler Cabinet Features:
-
Rust-resistant, Fully Insulated Steel Cabinet
-
Galvanized, Leather Grain-embossed Finish
-
Attractive Architectural Gray Painted Front Panels
-

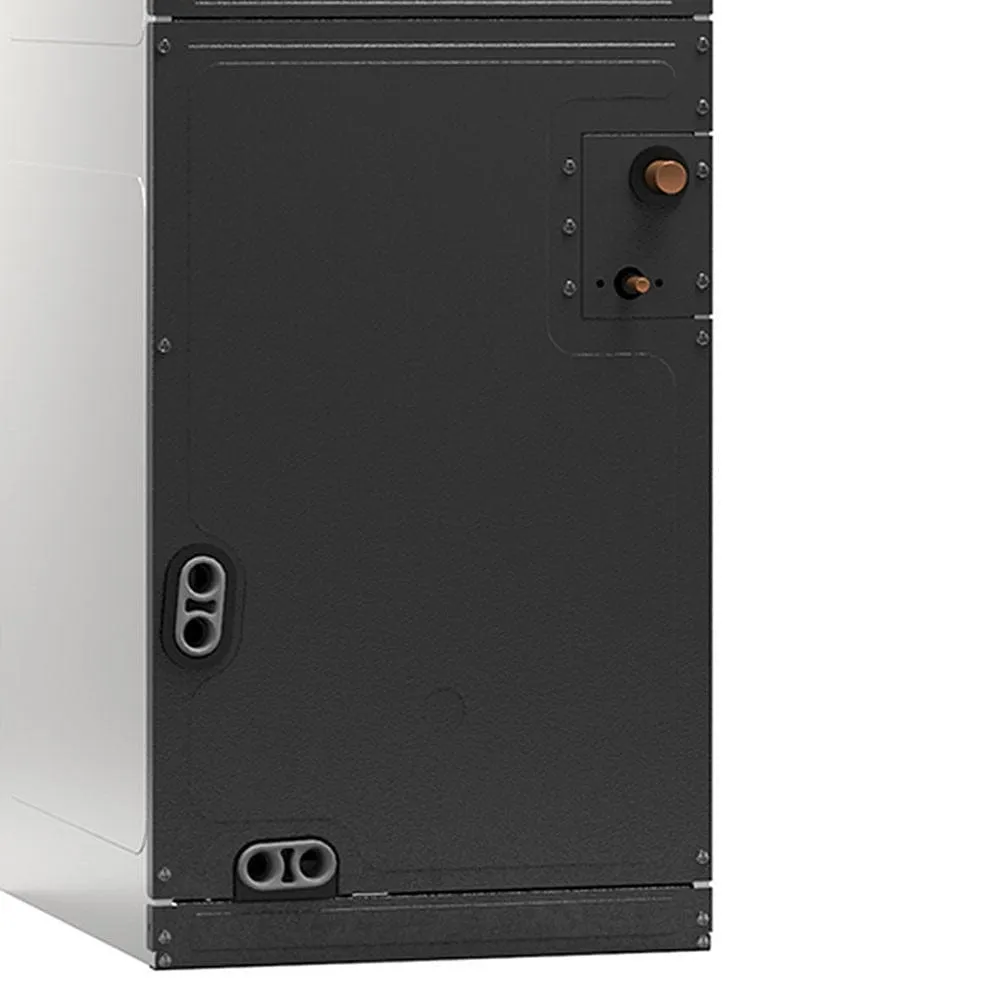

Built-in Coil Has Horizontal, Vertical, And Downflow Drain Pans With Secondary Drain Connections
-
Built-in Filter Rack For 1" Filter (Filter Not Included)
-
Power Supply Entry At Top; Low-voltage Entry On Left Side And Top
