Experience The Ultimate Indoor Comfort With Daikin's Energy-Efficient And Eco-Friendly Air Conditioning Units.

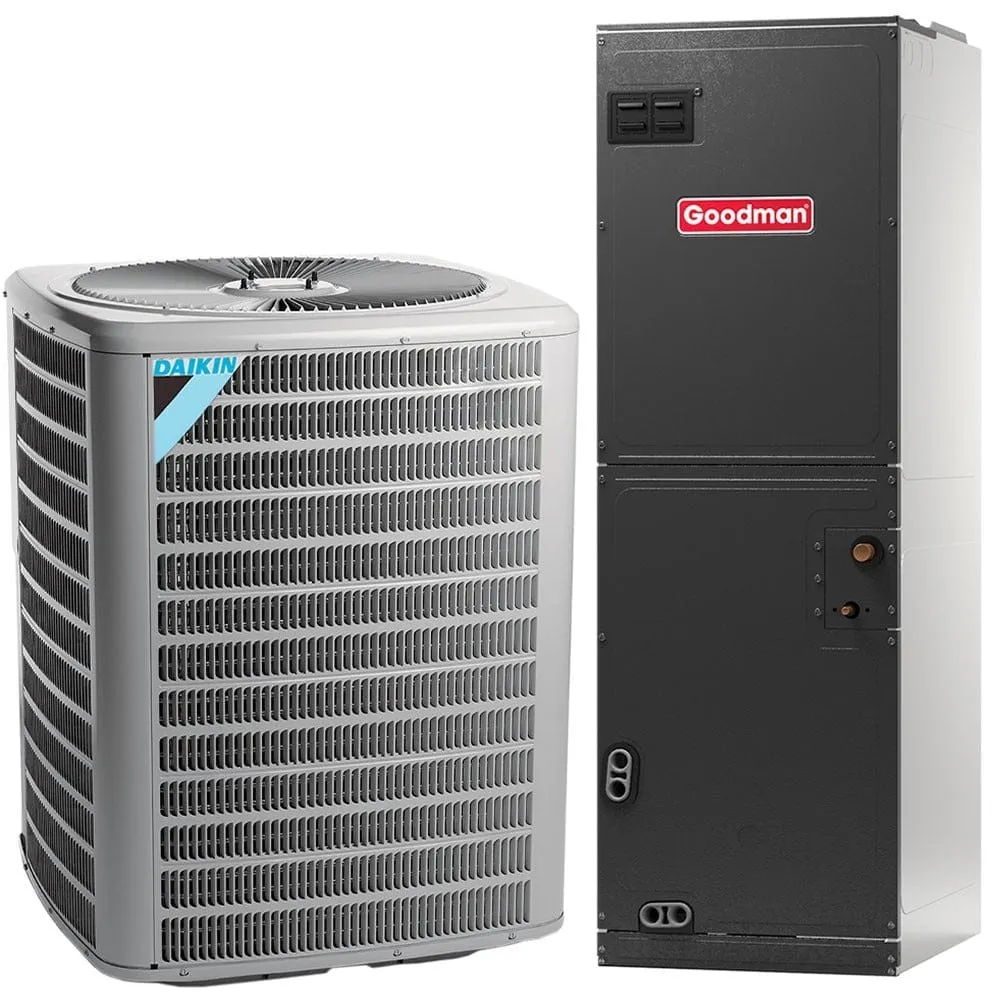

In business, it's best to be cool and quiet, and that's what you get with Daikin's 4 Ton 13 SEER Multi-Speed Air Conditioner Central Split System. The DX13SA0483 commercial air conditioner is a 3-phase unit that features an energy efficient compressor, and uses chlorine-free R-410A refrigerant.
With features like a louvered sound control top design, this unit achieves extremely quiet operation. In this system, the DX13SA0483 is paired with the ARUF49D14 SmartFrame air handler, a system suitable for horizontal, upflow, or downflow installation.

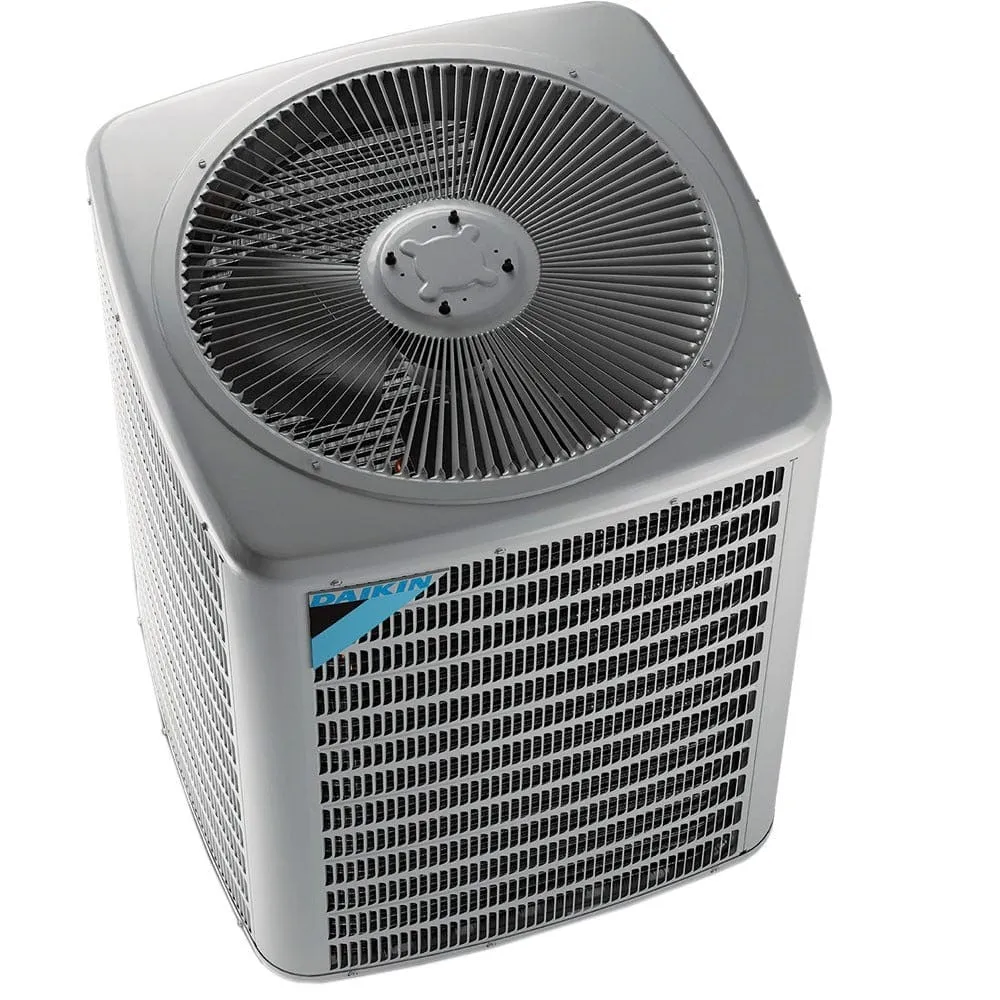

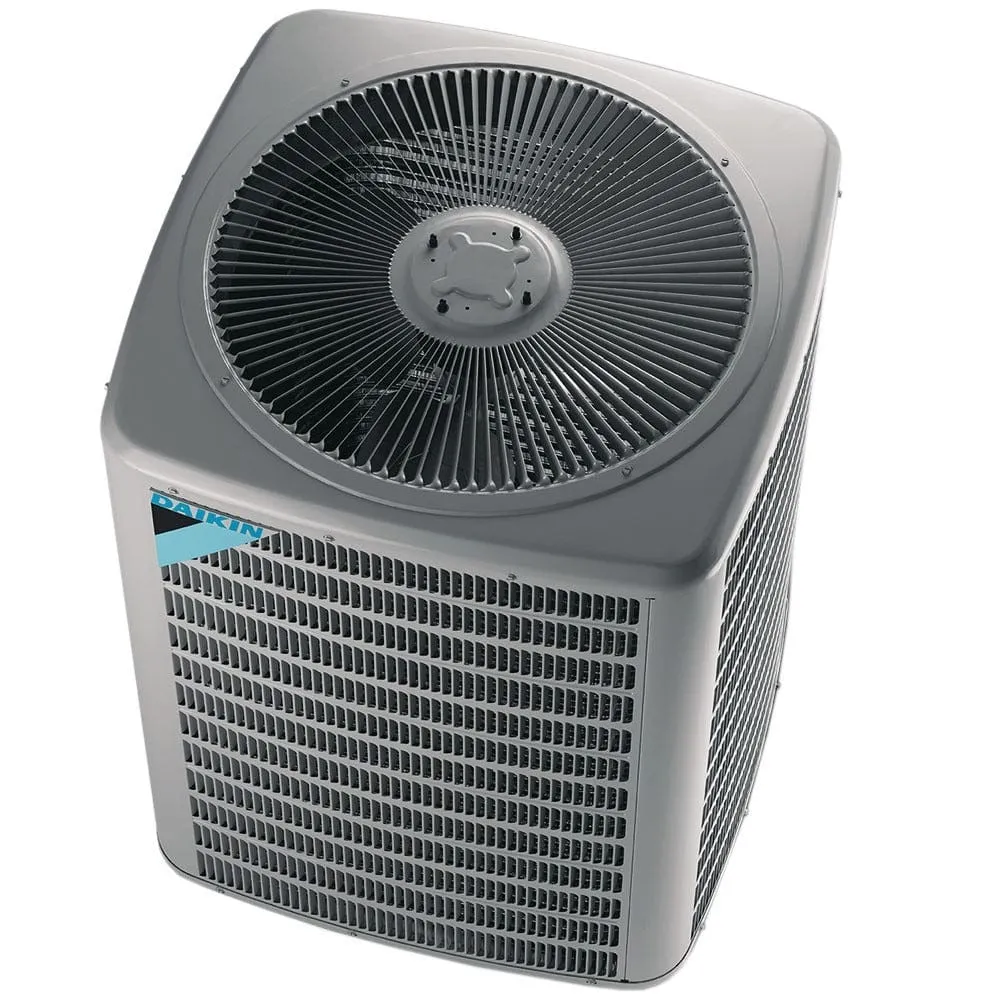

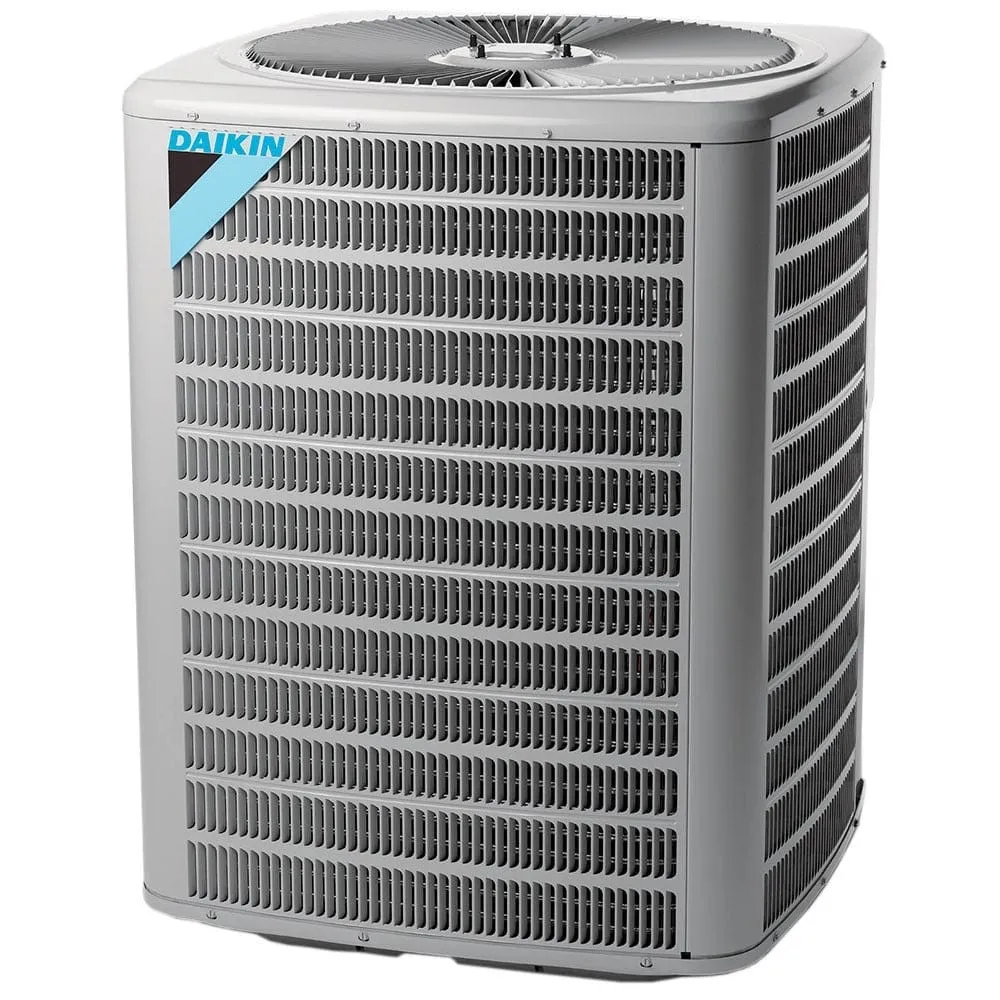

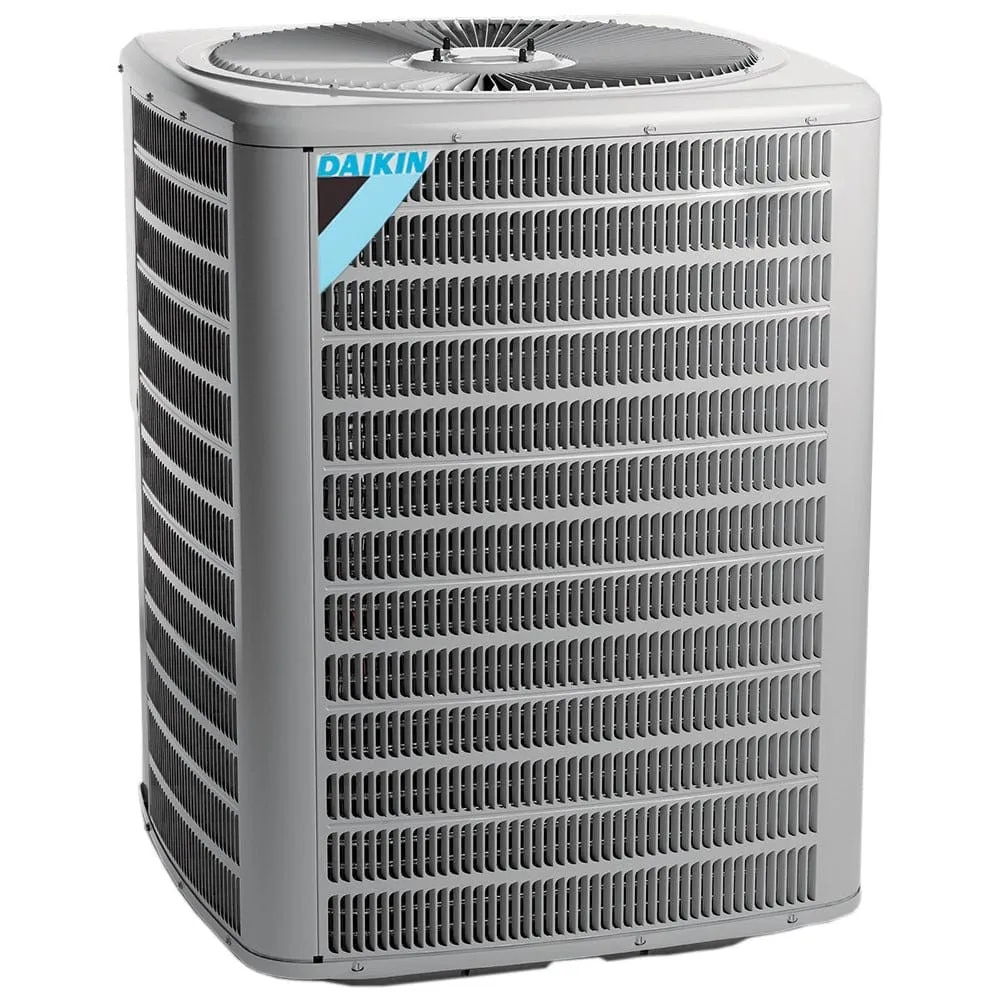

Daikin DX13SA0483 4 Ton Condenser Features:
-
Energy-efficient compressor
-
Factory-installed filter drier
-
Copper tube/ enhanced aluminum fin coil
-
Service valves with sweat connections and easy-access gauge ports
-
Contactor with lug connection
-
Ground lug connection
-
AHRI Certified
-
ETL Listed

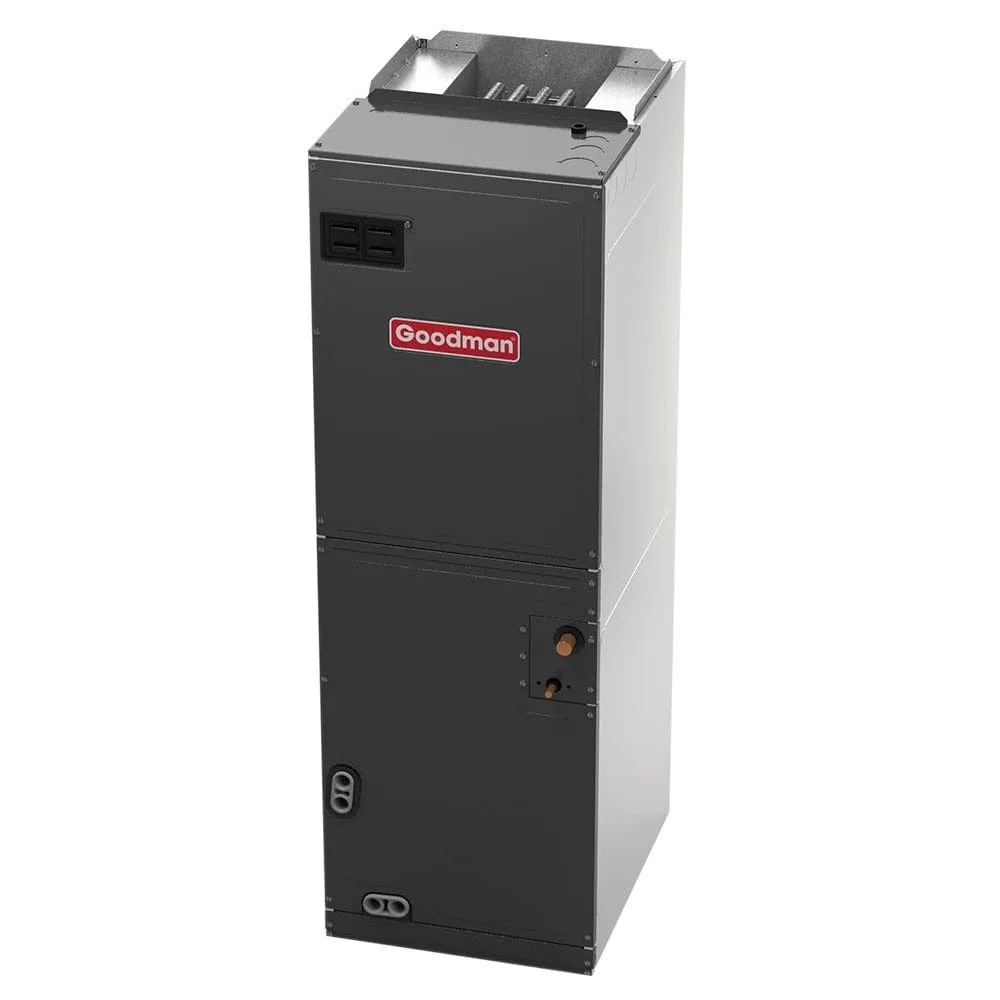

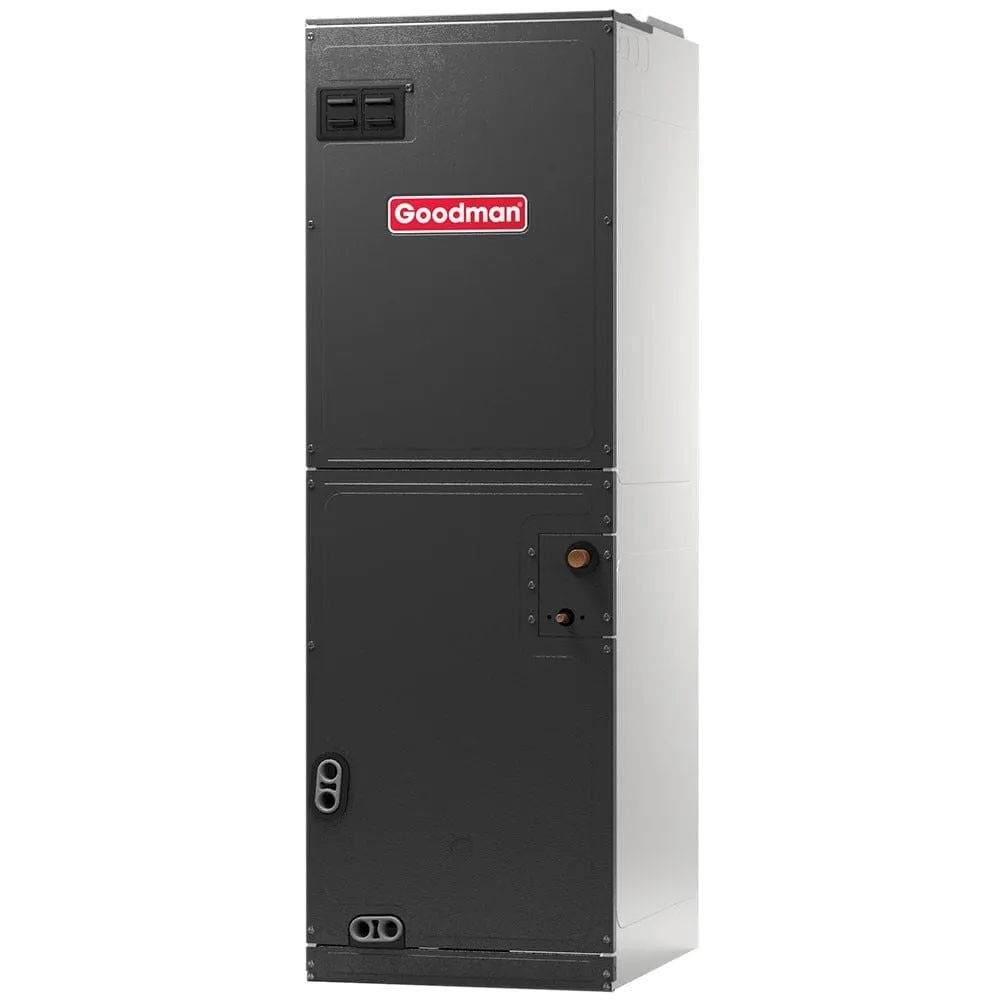

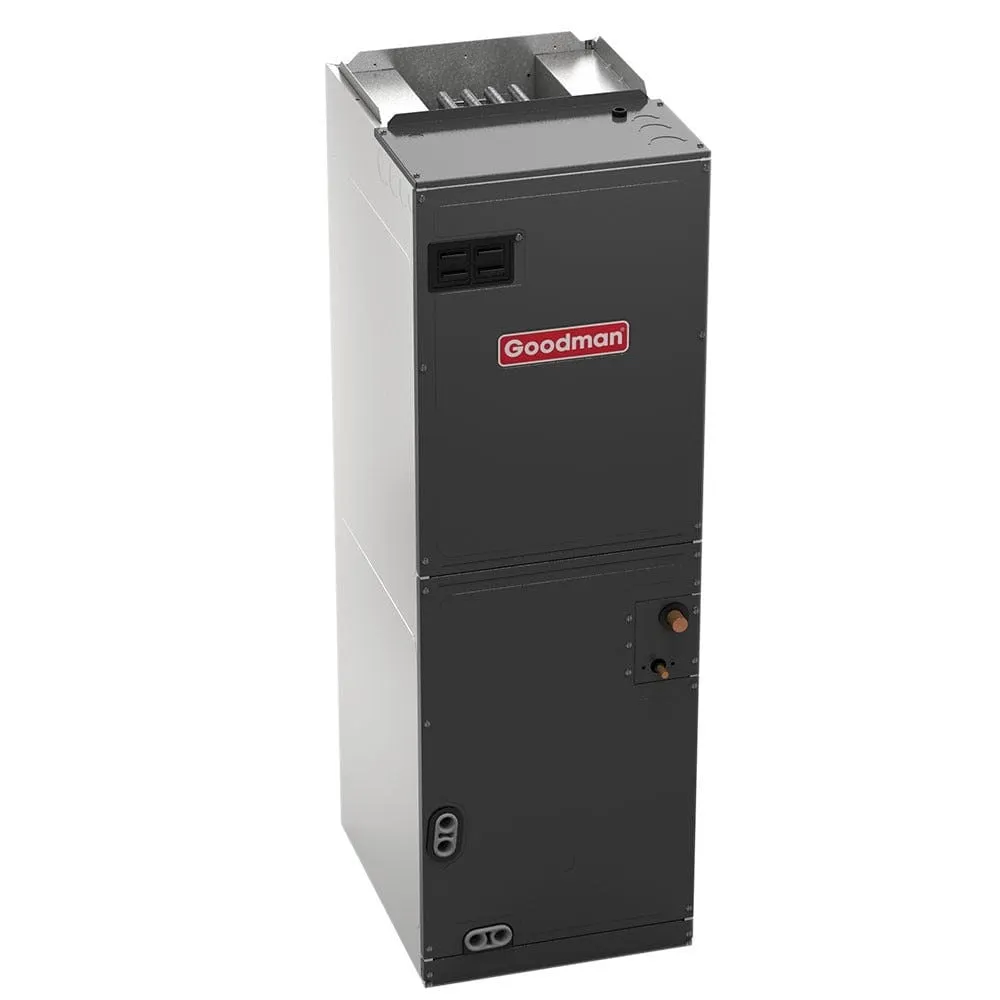

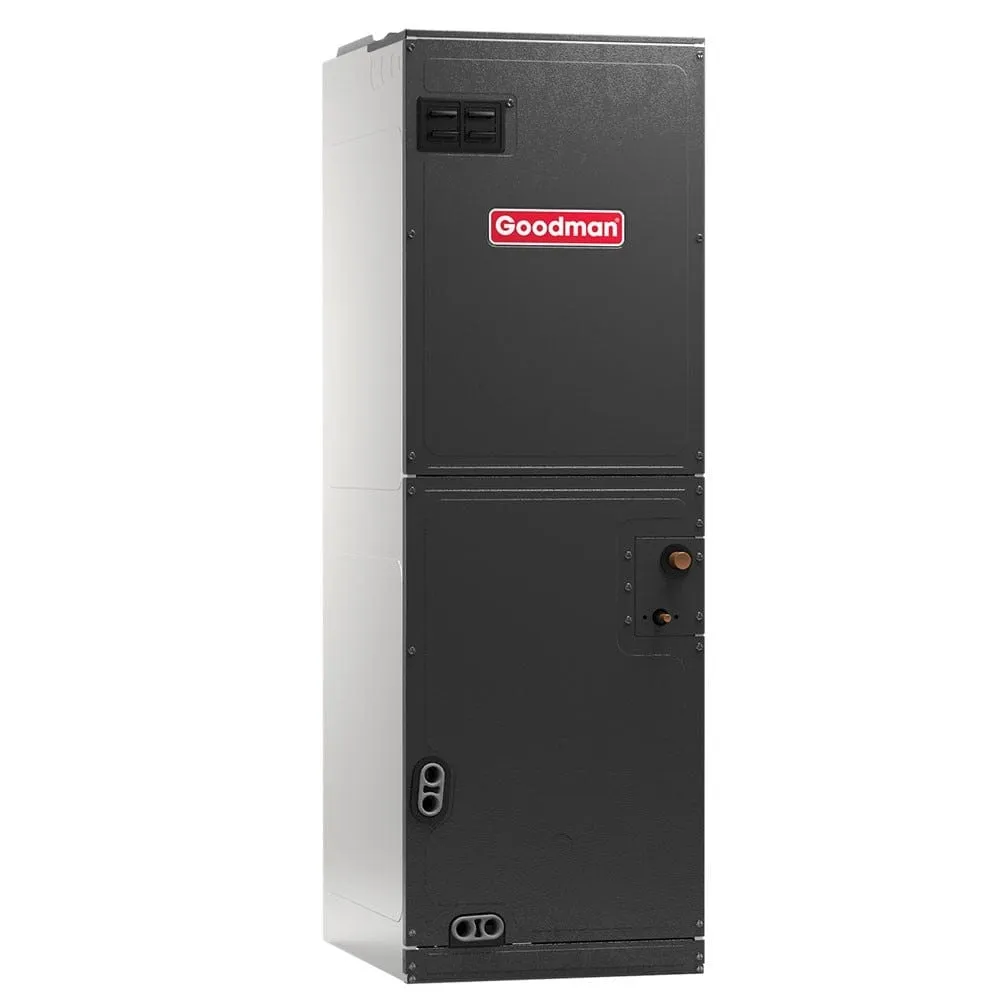

Goodman ARUF49D14 Air Handler Features:
-
Suitable For Use With The Refrigerants R-410a And R-22
-
All-aluminum Evaporator Coil
-
Check Flowrater Expansion Device For Cooling-only And Heat Pump Applications
-
Direct-Drive, Multi-speed Motor
-
Transformer And Blower Time-delay On All Units
-
Ahri Certified; ETL Listed
Specifications
| Model | DX13SA0483,ARUF49D14 |
|---|---|
| UPC | 663051508453 |
| AHRI Number | 8171750 |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 4 Ton |
| Bundle Cooling Efficiency | 13 SEER |
| EER | 11 |
| Daikin DX13SA0363 3 Ton Condenser Specifications | |
| Model | DX13SA0483 |
| UPC | 663051508453 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Compressor | Single Stage |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 3-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 30 amps |
| Product Height (in) | 38 |
| Product Length (in) | 30 |
| Product Width (in) | 30 |
| Cooling Efficiency | 13 SEER |
| Suction Line Size | 1 1/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
| Weight (lbs) | 188.0000 |
| Goodman ARUF37C14 Air Handler Specifications | |
| Model | ARUF49D14 |
| UPC | 663051513396 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Configuration | Floor Mounted |
| Blower Motor | Multi Speed |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 20 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Product Height (in) | 53.438 |
| Product Length (in) | 21 |
| Product Width (in) | 24.5 |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Weight (lbs) | 145.0000 |
Additional Information
Daikin DX13SA0363 3 Ton Condenser Cabinet Features:
-

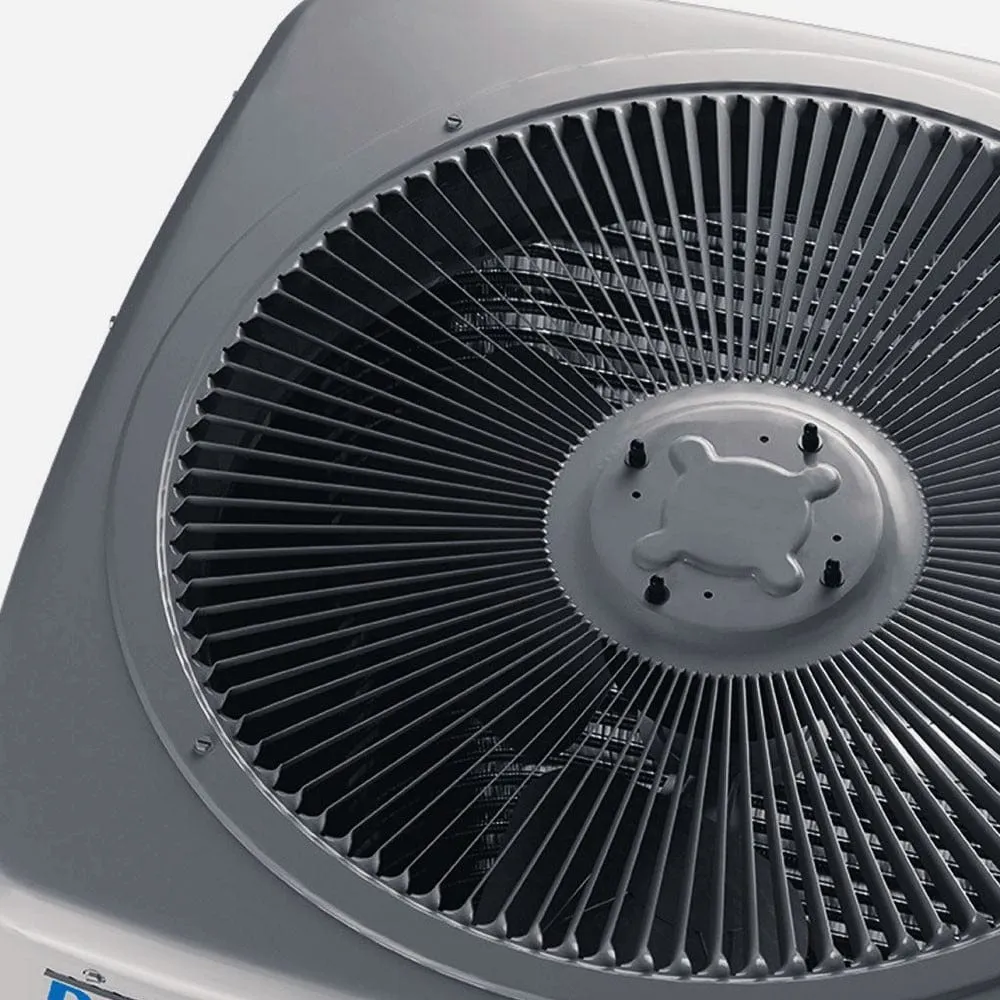

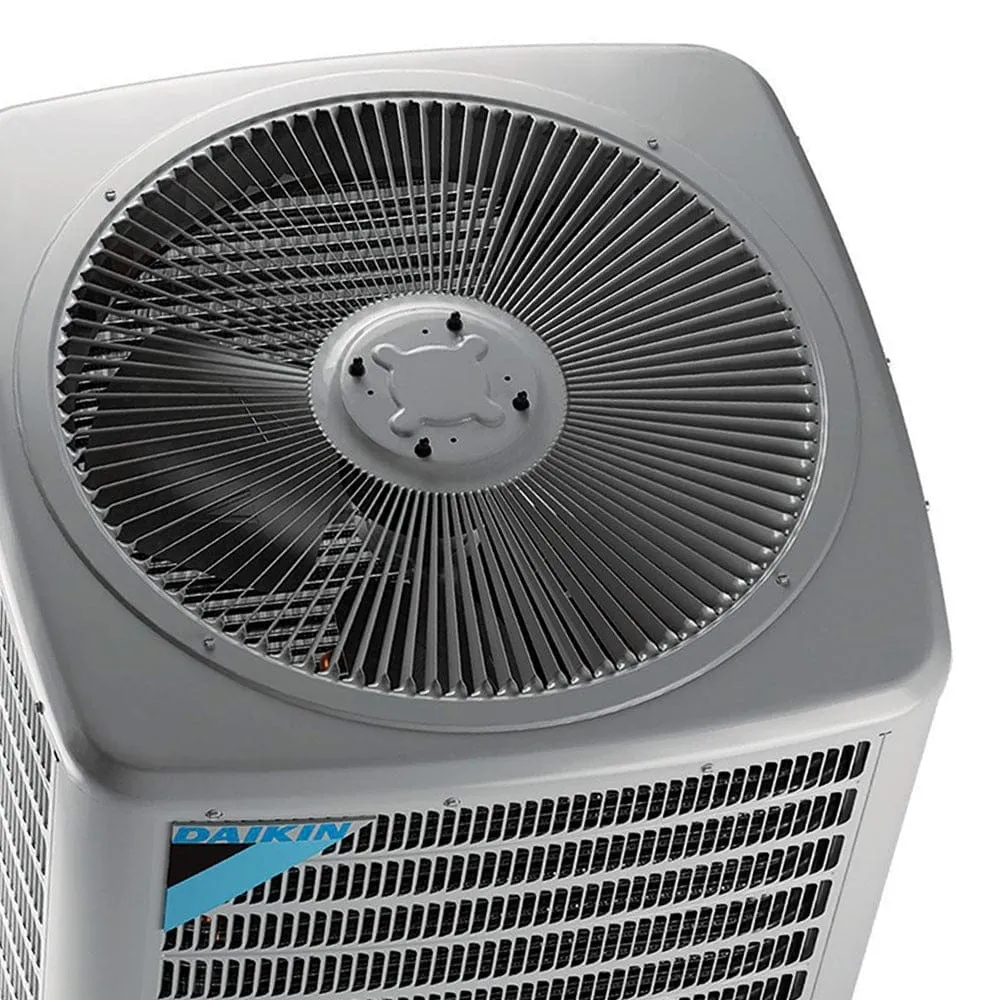

Innovative louvered sound control top design
-
Steel louver coil guard
-
Heavy-gauge galvanized-steel cabinet
-
Attractive Nickel Gray powder-paint finish
-
Top and side maintenance access
-
Single-panel access to controls with space provided for field-installed accessories
-
When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds

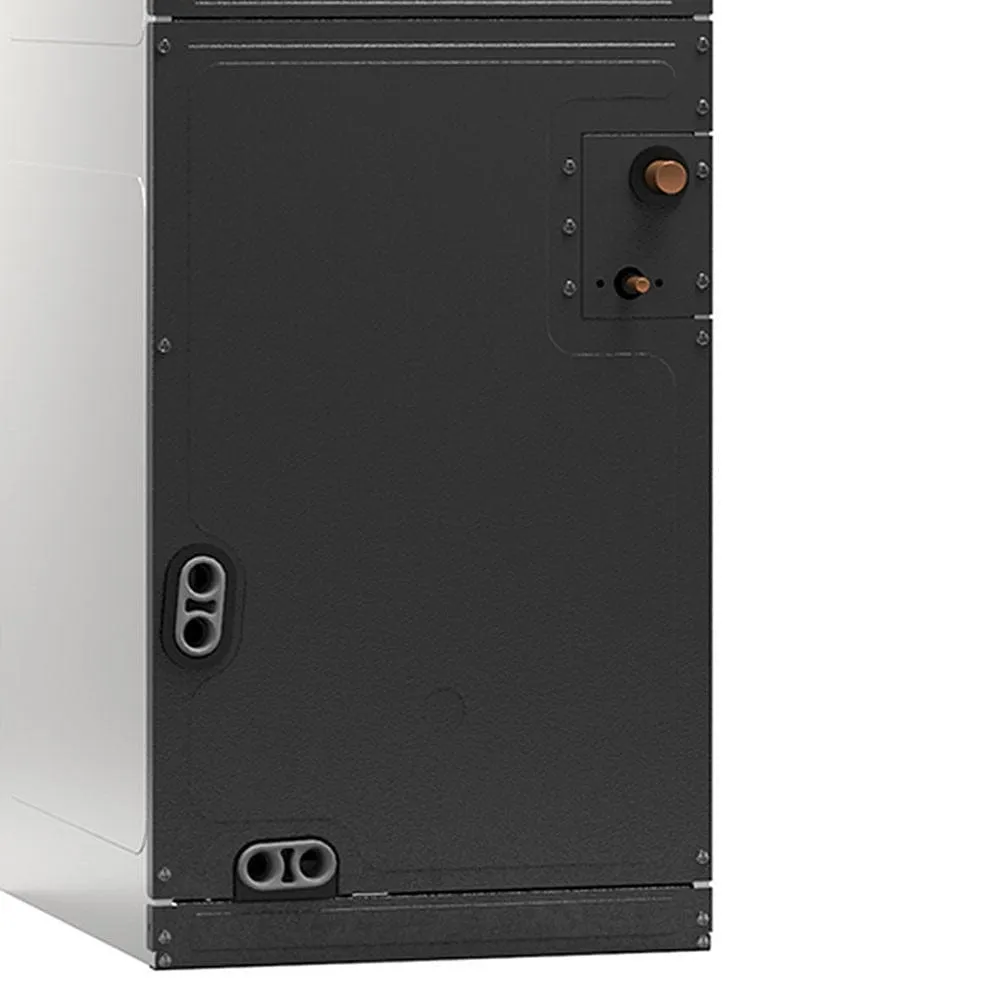

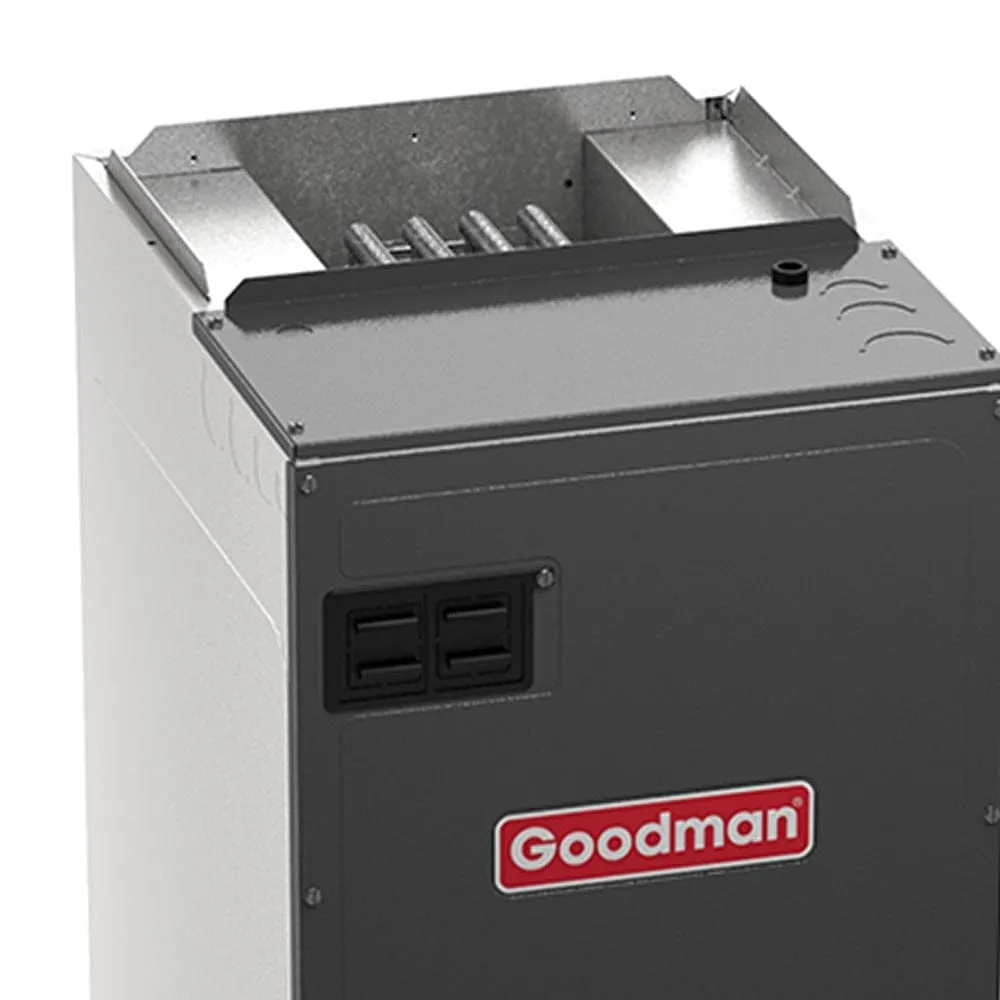

Goodman ARUF37C14 Air Handler Cabinet Features:
-
Rust-resistant, Fully Insulated Steel Cabinet
-
Galvanized, Leather Grain-embossed Finish
-
Attractive Architectural Gray Painted Front Panels
-
Built-in Coil Has Horizontal, Vertical, And Downflow Drain Pans With Secondary Drain Connections
-
Built-in Filter Rack For 1" Filter (Filter Not Included)
-
Power Supply Entry At Top; Low-voltage Entry On Left Side And Top
