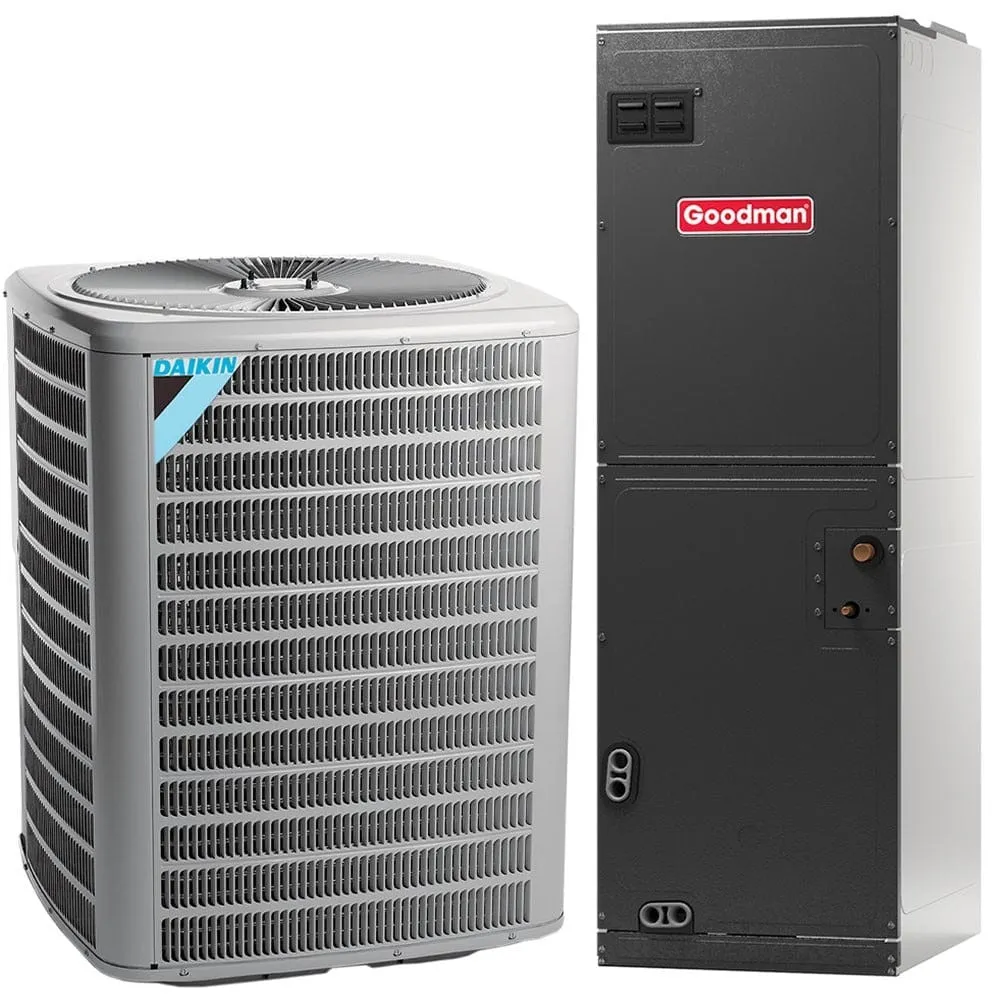

Cool customers are happy customers, and they'll spend more when made comfortable by this 3 Ton Multi-Speed 13 SEER Daikin Commercial Central Air Conditioner Split System. This Daikin DX13SA0363 3 ton condenser is a 3-phase, 208-230 V unit, using chlorine-free R-410A refrigerant, and an energy efficient compressor.
The ARUF37C14 air handler is suitable for horizontal, upflow, and downflow installation. Easy-maintenance features include tool-free filter access for standard sized filters.

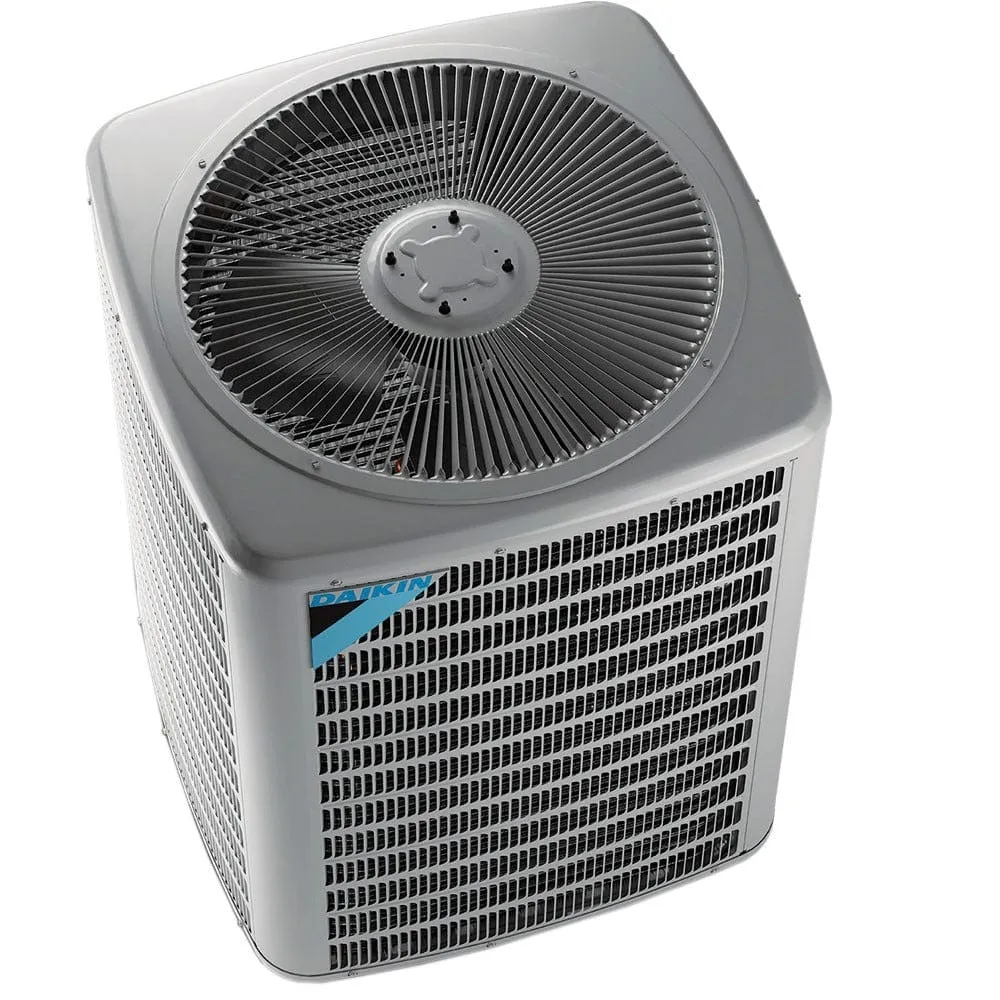

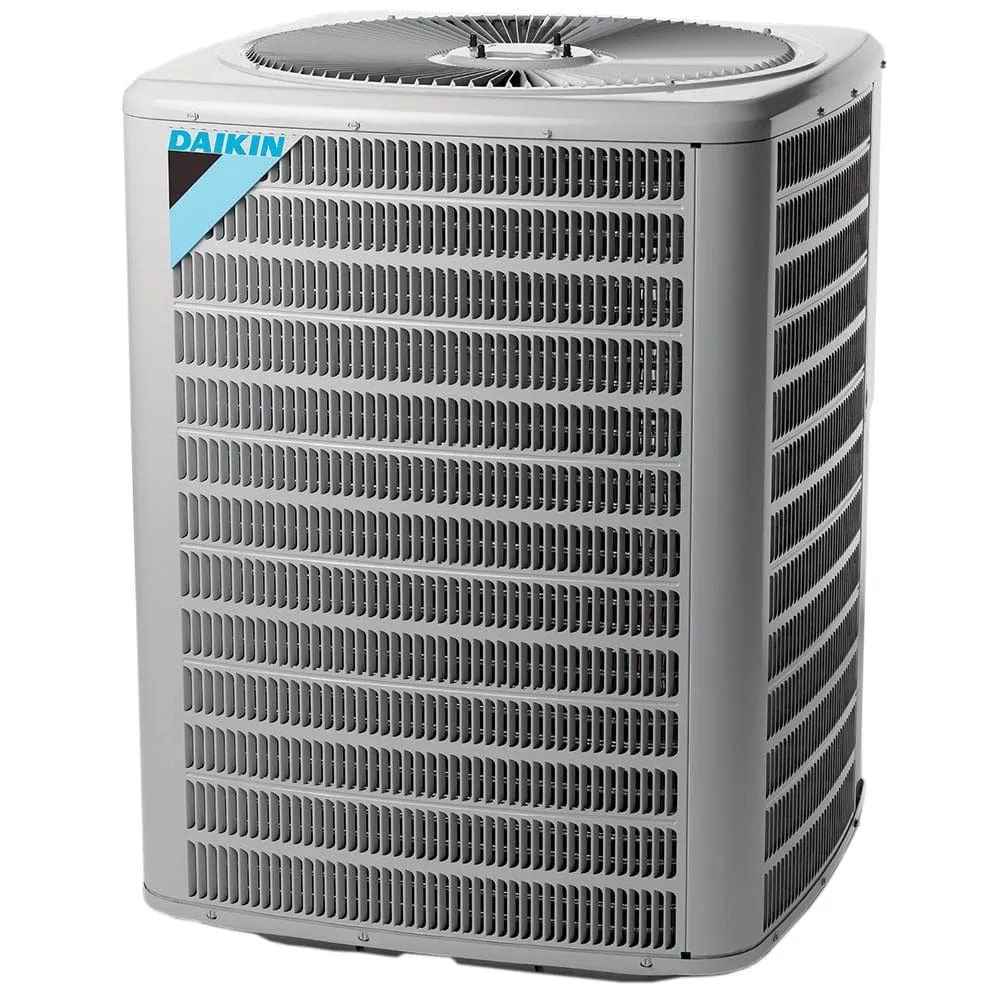

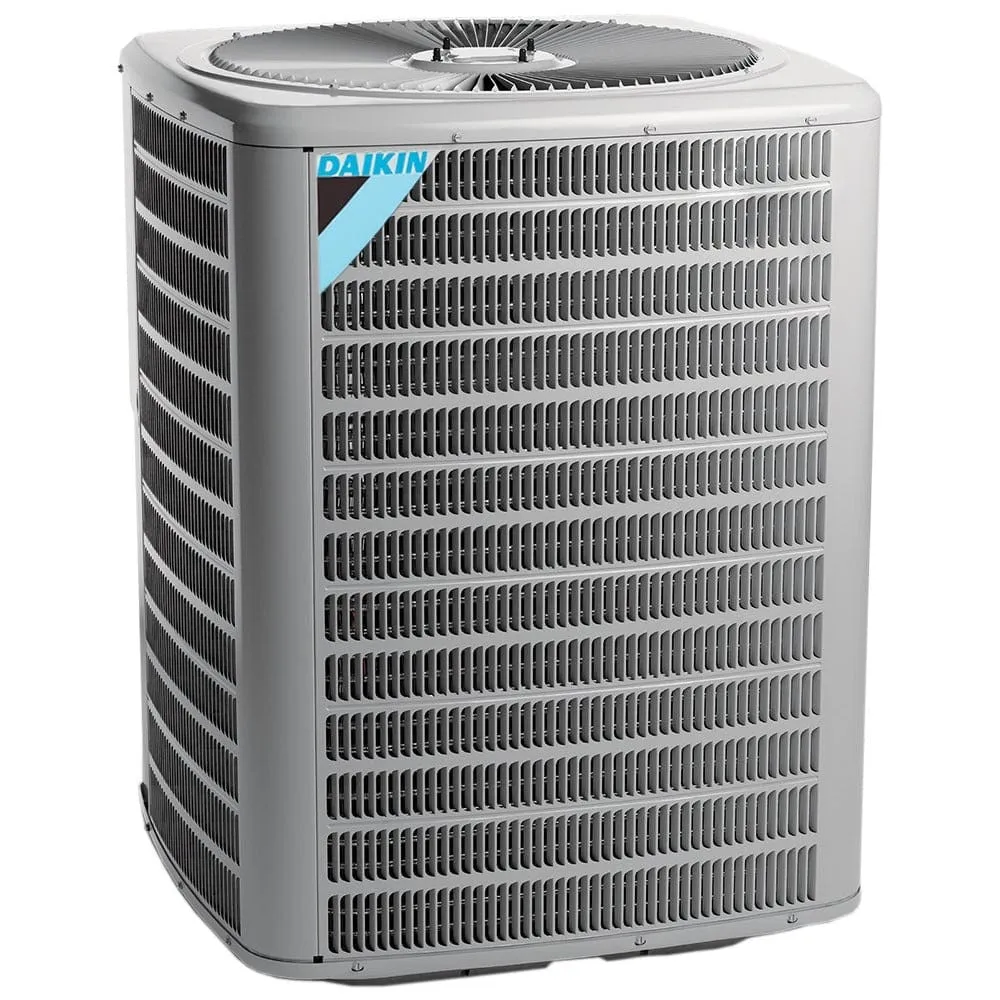

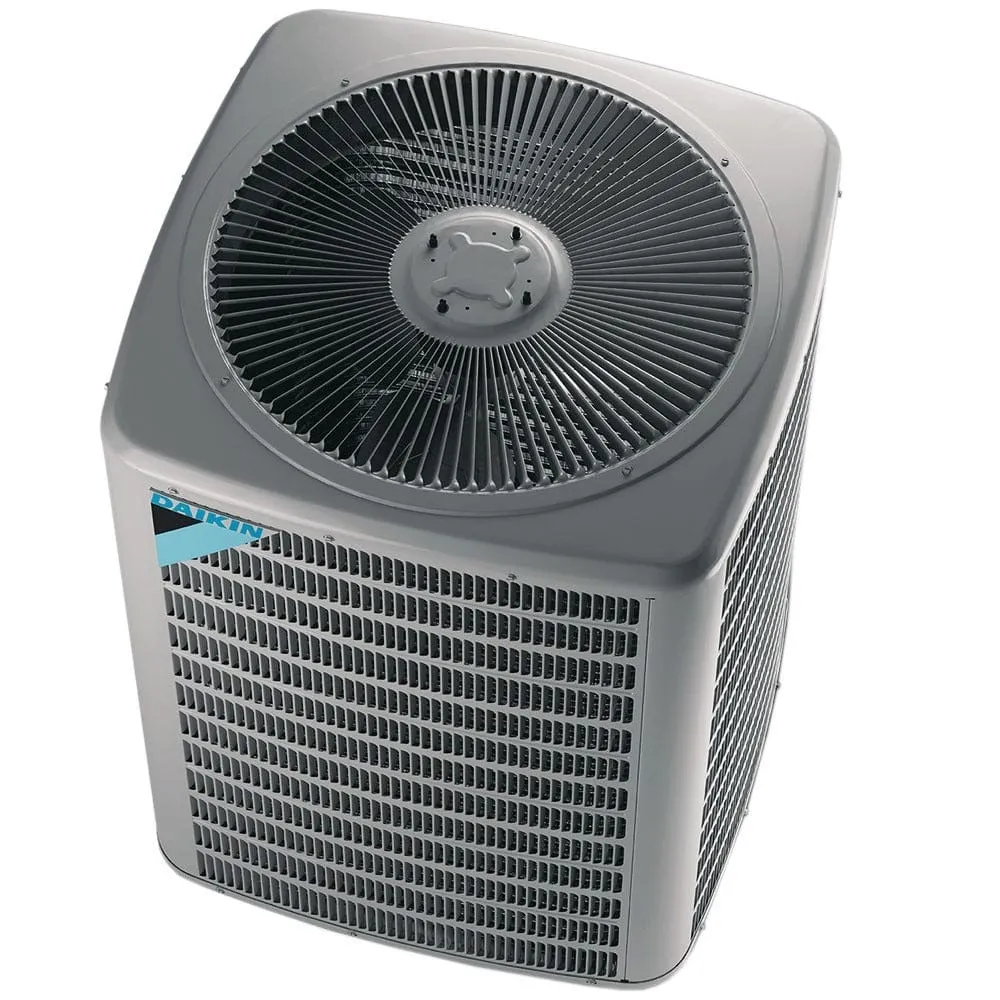

Daikin DX13SA0363 3 Ton Condenser Features:
-
Energy-efficient compressor
-
Factory-installed filter drier
-
Copper tube/ enhanced aluminum fin coil
-
Service valves with sweat connections and easy-access gauge ports
-
Contactor with lug connection
-
Ground lug connection
-
AHRI Certified
-
ETL Listed

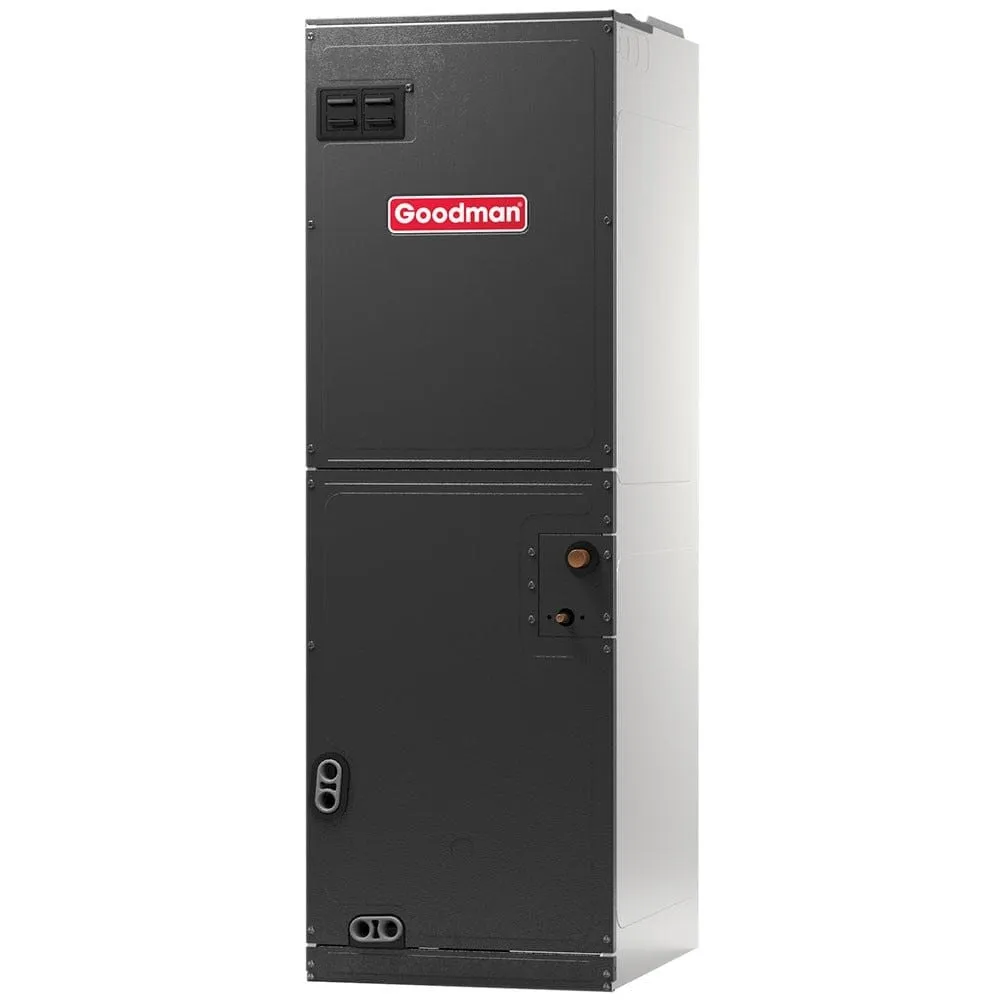

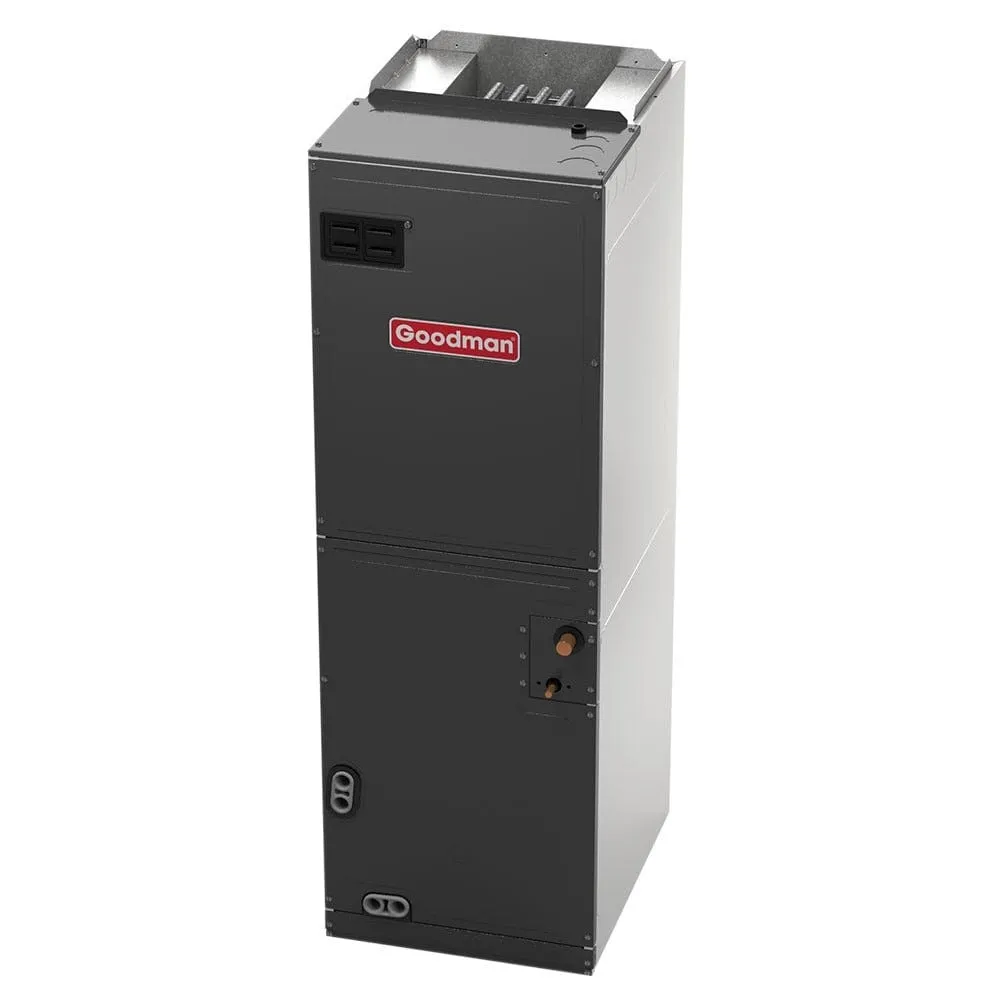

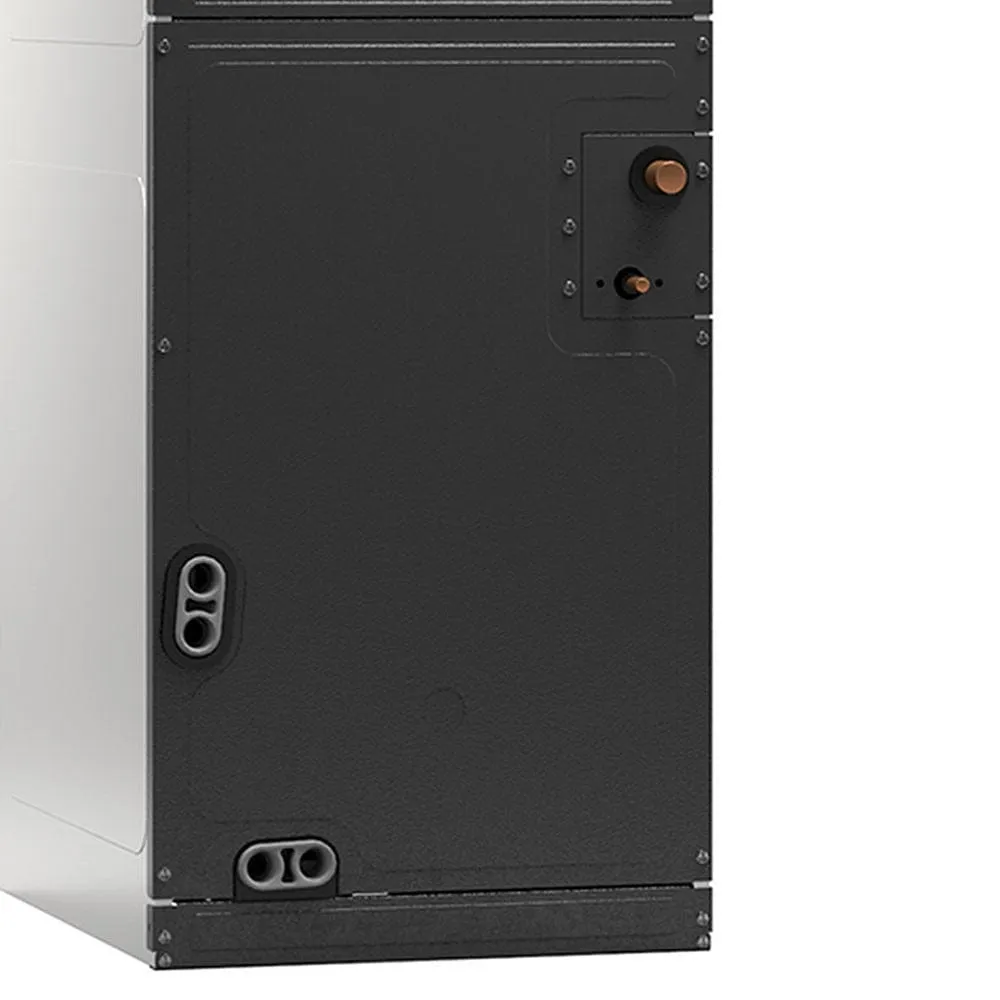

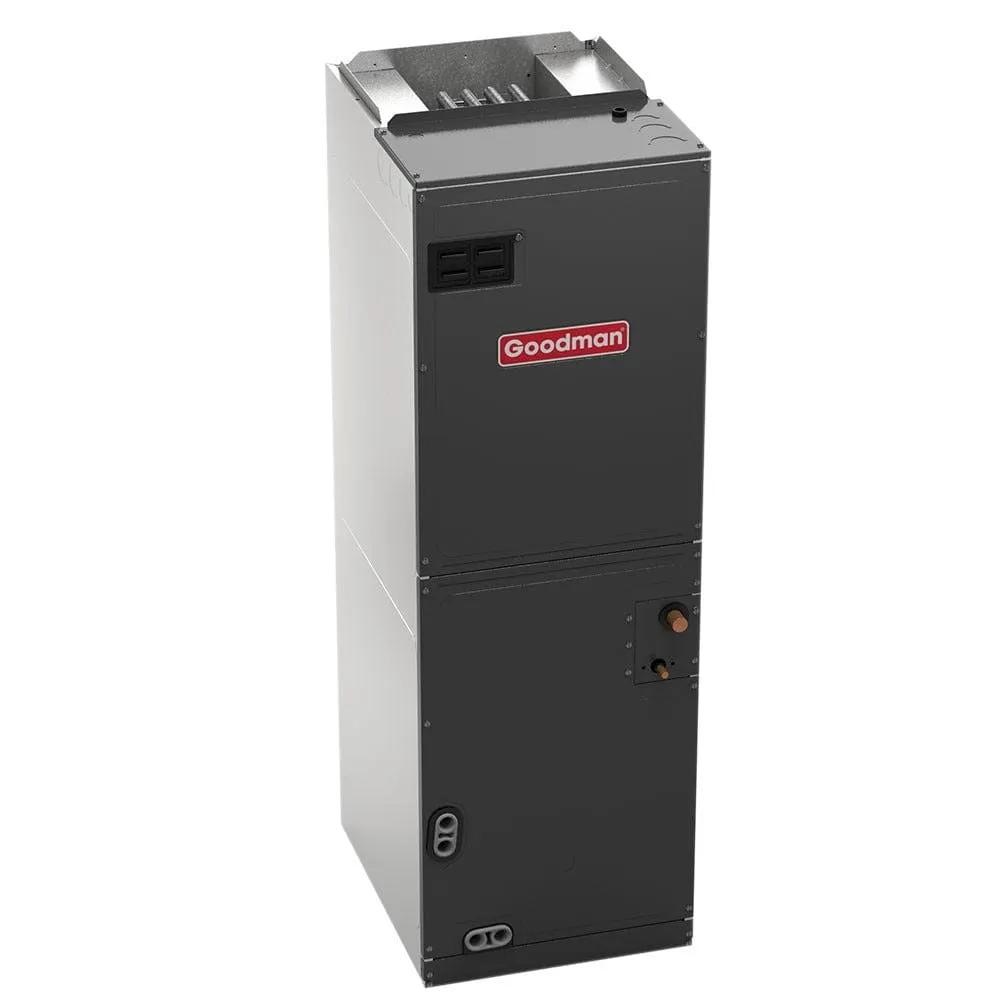

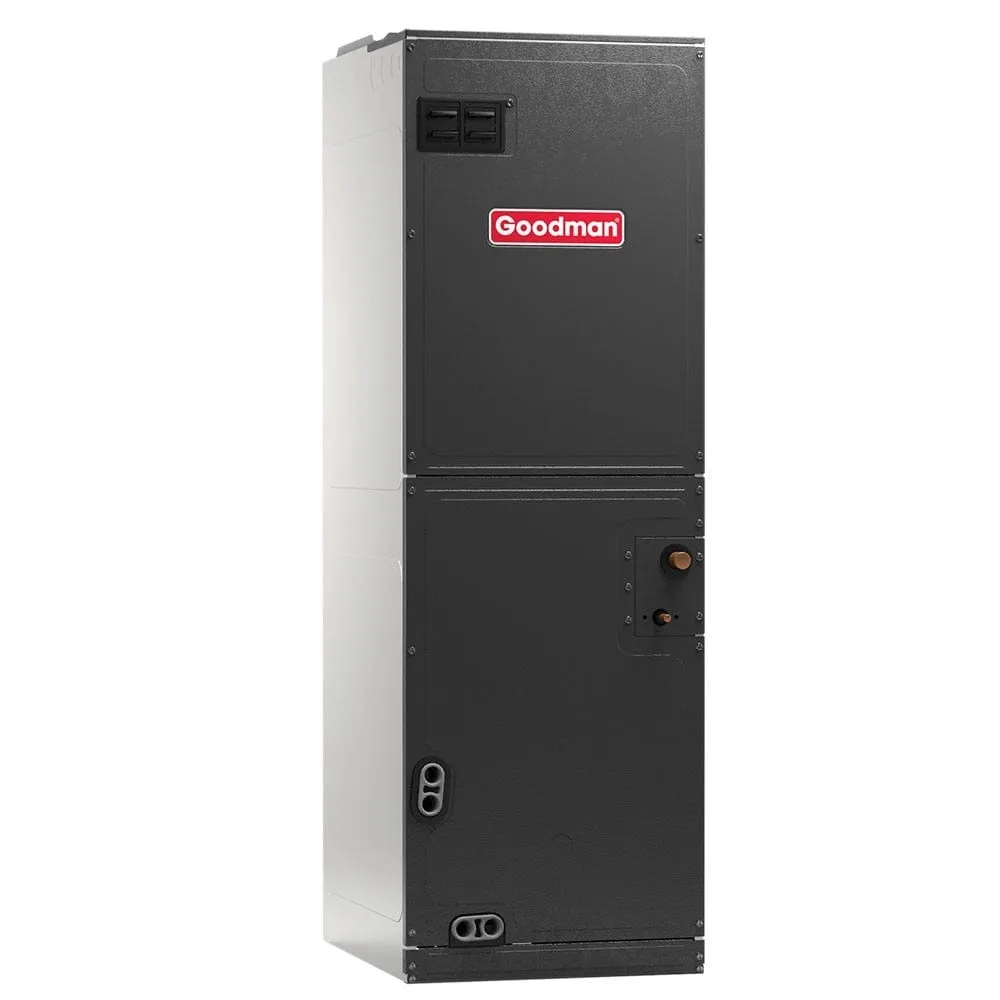

Goodman ARUF37C14 Air Handler Features:
-
Suitable For Use With The Refrigerants R-410a And R-22
-
All-aluminum Evaporator Coil
-
Check Flowrater Expansion Device For Cooling-only And Heat Pump Applications
-
Direct-Drive, Multi-speed Motor
-
Transformer And Blower Time-delay On All Units
-
Ahri Certified; ETL Listed
Specifications
| Model | DX13SA0363,ARUF37C14 |
|---|---|
| UPC | 663051534919 |
| AHRI Number | 7988968 |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency | 13 SEER |
| EER | 11 |
| Daikin DX13SA0363 3 Ton Condenser Specifications | |
| Model | DX13SA0363 |
| UPC | 663051534919 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Compressor | Single Stage |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 3-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 20 amps |
| Product Height (in) | 31 |
| Product Length (in) | 31 |
| Product Width (in) | 31 |
| Cooling Efficiency | 13 SEER |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
| Weight (lbs) | 155.0000 |
| Region Compatibility | Nationwide |
| Goodman ARUF37C14 Air Handler Specifications | |
| Model | ARUF37C14 |
| UPC | 663051512481 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Configuration | Floor Mounted |
| Blower Motor | Multi Speed |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 20 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Product Height (in) | 53.438 |
| Product Length (in) | 21 |
| Product Width (in) | 21 |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Weight (lbs) | 130.0000 |
Additional Information

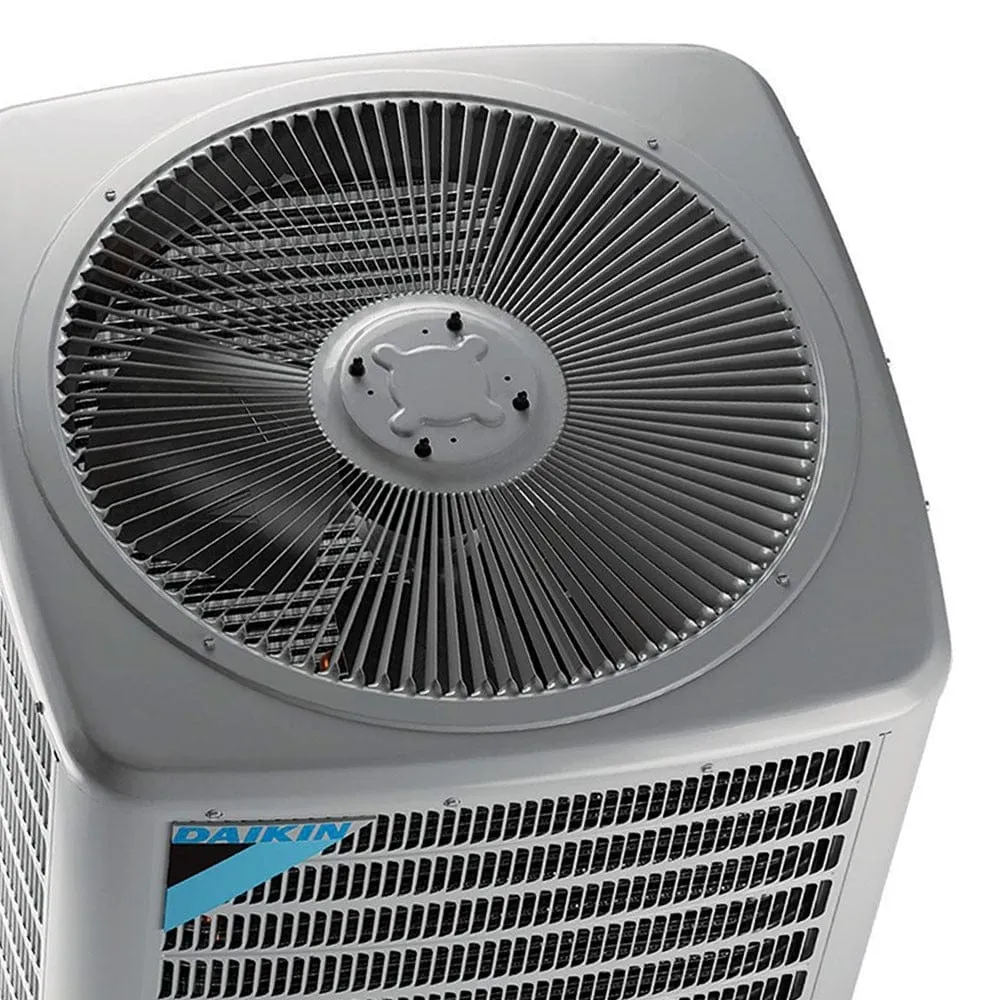

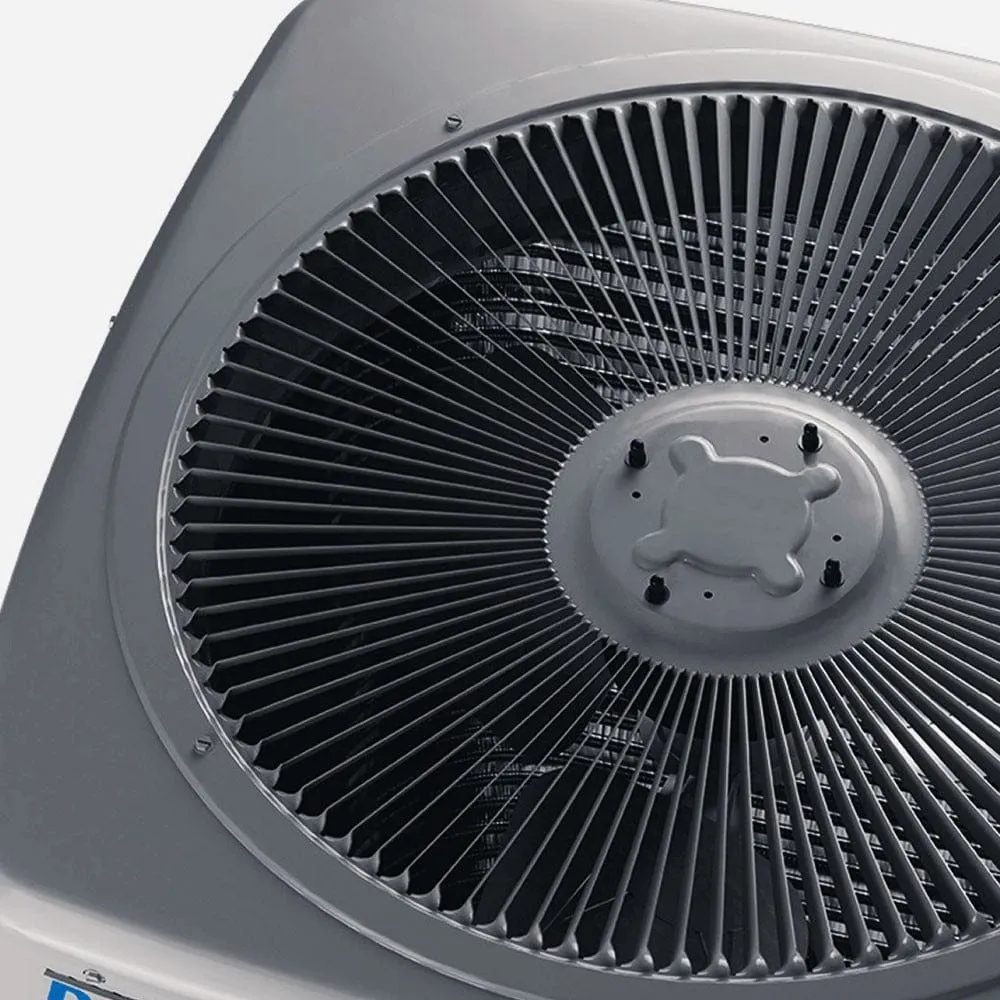

Daikin DX13SA0363 3 Ton Condenser Cabinet Features:
-
Innovative louvered sound control top design
-
Steel louver coil guard
-
Heavy-gauge galvanized-steel cabinet
-
Attractive Nickel Gray powder-paint finish
-
Top and side maintenance access
-
Single-panel access to controls with space provided for field-installed accessories
-
When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds

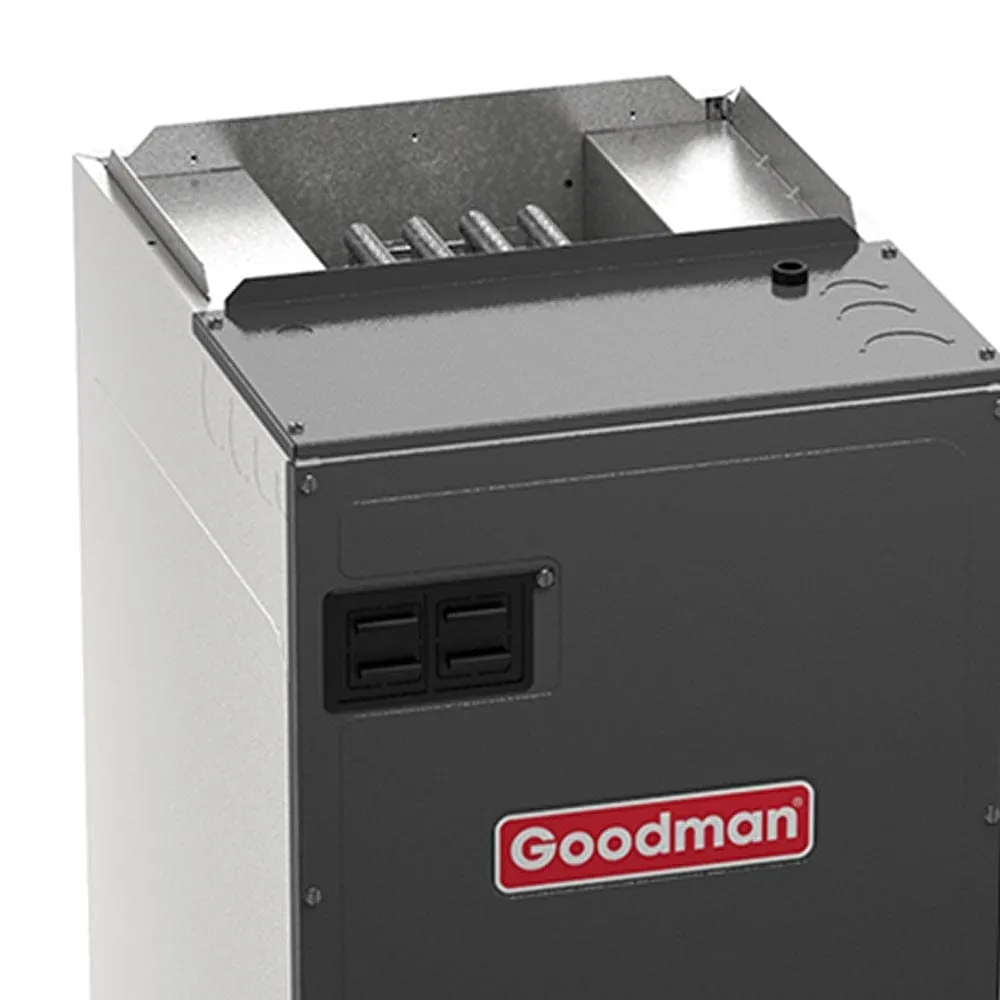

Goodman ARUF37C14 Air Handler Cabinet Features:
-
Rust-resistant, Fully Insulated Steel Cabinet
-
Galvanized, Leather Grain-embossed Finish
-
Attractive Architectural Gray Painted Front Panels
-
Built-in Coil Has Horizontal, Vertical, And Downflow Drain Pans With Secondary Drain Connections
-
Built-in Filter Rack For 1" Filter (Filter Not Included)
-
Power Supply Entry At Top; Low-voltage Entry On Left Side And Top
