Specifications:

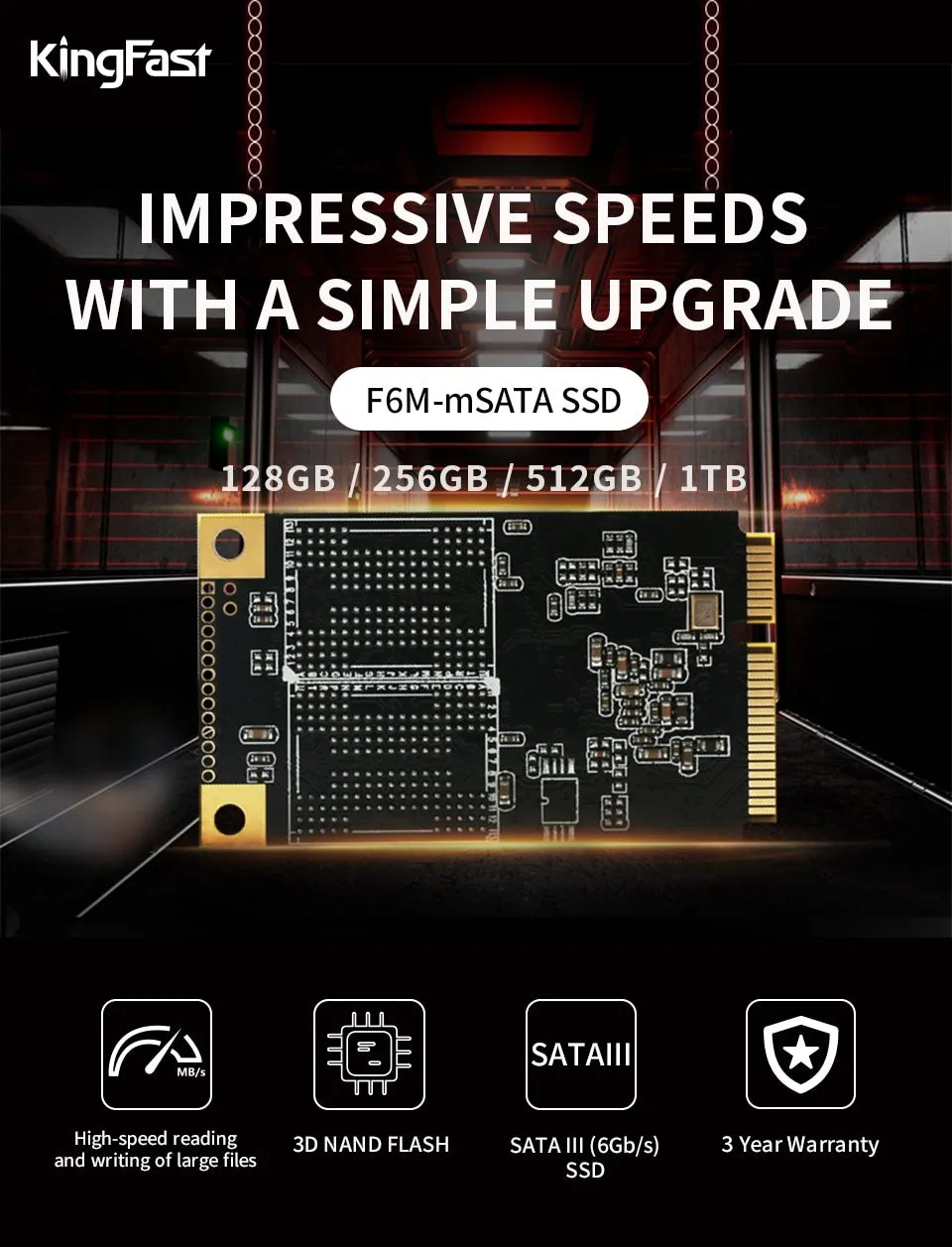

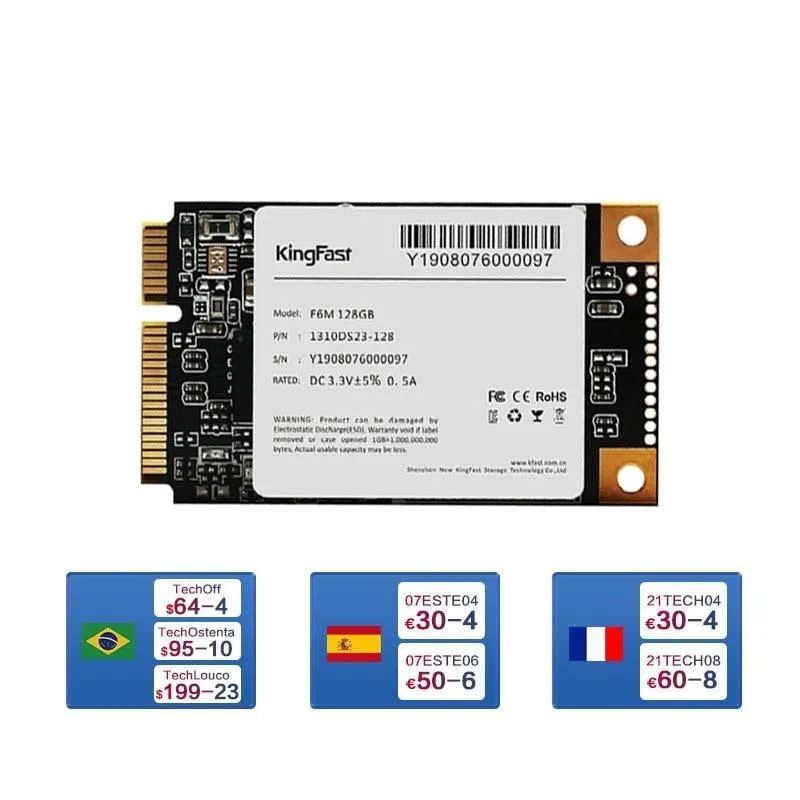

Model: f6m 128g
Transport Protocol: AHCI
Interface Type: MSATA
Item Condition: New
Controller: SMI2258XT/S11
Cooling Fin: No
RGB: No
Size: mSATA
Bus Type: SATA III
Application: Desktop
Application: Laptop
Application: Server
Model Number: F6M
Nand Flash Type: TLC
Certification: CE
Certification: FCC
Certification: RoHS
Package: Yes
Type: Internal
Style: SSD
Size: 3x5cm
Support: OEM/ODM/Wholesale price/ dropshipping
Capacity: 128GB, 256GB, 512GB, 1TB
Bad Block Management: Auto Bad Block Management in the system
Warranty: 3 years

Features:

- mSATA SATA III TLC NAND Internal Solid State Drive.
- mSATA Platform for PC and laptap.

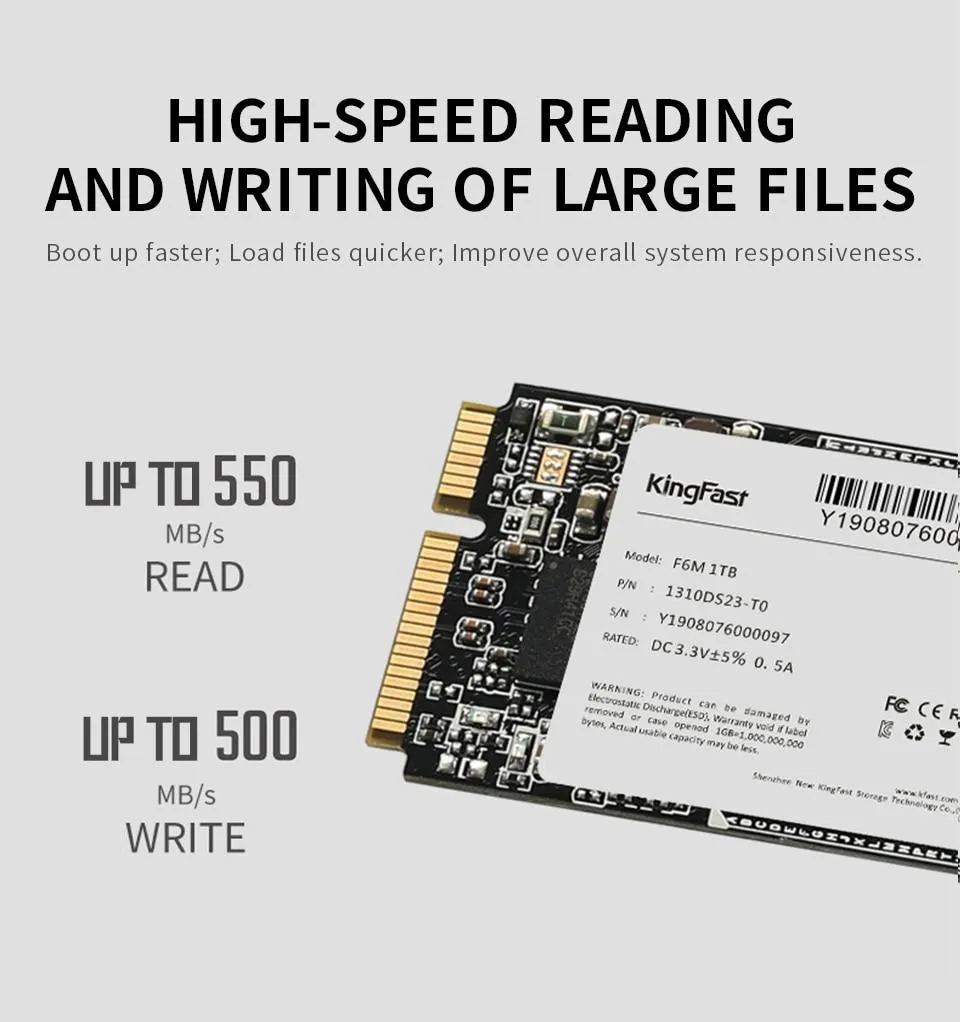

-SATA 6.0 Gb/s Interface.Max Read Speed: 550 MB/s, Max Write Speed: 500MB/s, performance may vary based on system hardware & configuration.
- WARRANTY - 3 years warranty provided by us.

Note:

1, Our test result is base on SATA 3 interface, SATA 3 sata cable, desktop and SSD empty status, different desktop and software (include software version), the result may be different.

2, Difference between SATA 1, SATA 2 and SATA 3

SATA 1 (revision 1.x) interface, formally known as SATA 1.5Gb/s, it is the first generation SATA interface running at 1.5 Gb/s. Max speed 150MB/s.

SATA 2 (revision 2.x) interface, formally known as SATA 3Gb/s, it is the second generation SATA interface running at 3.0 Gb/s. Max speed 300MB/s.

SATA 3 (revision 3.x) interface, formally known as SATA 6Gb/s, it is the third generation SATA interface running at 6.0Gb/s. Max speed 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface.

If SATA 3 SSD tests the speed on SATA 2 interface and sata cable, the result will be inaccurate.

FAQ:

Q: Can I use for laptops and desktops?

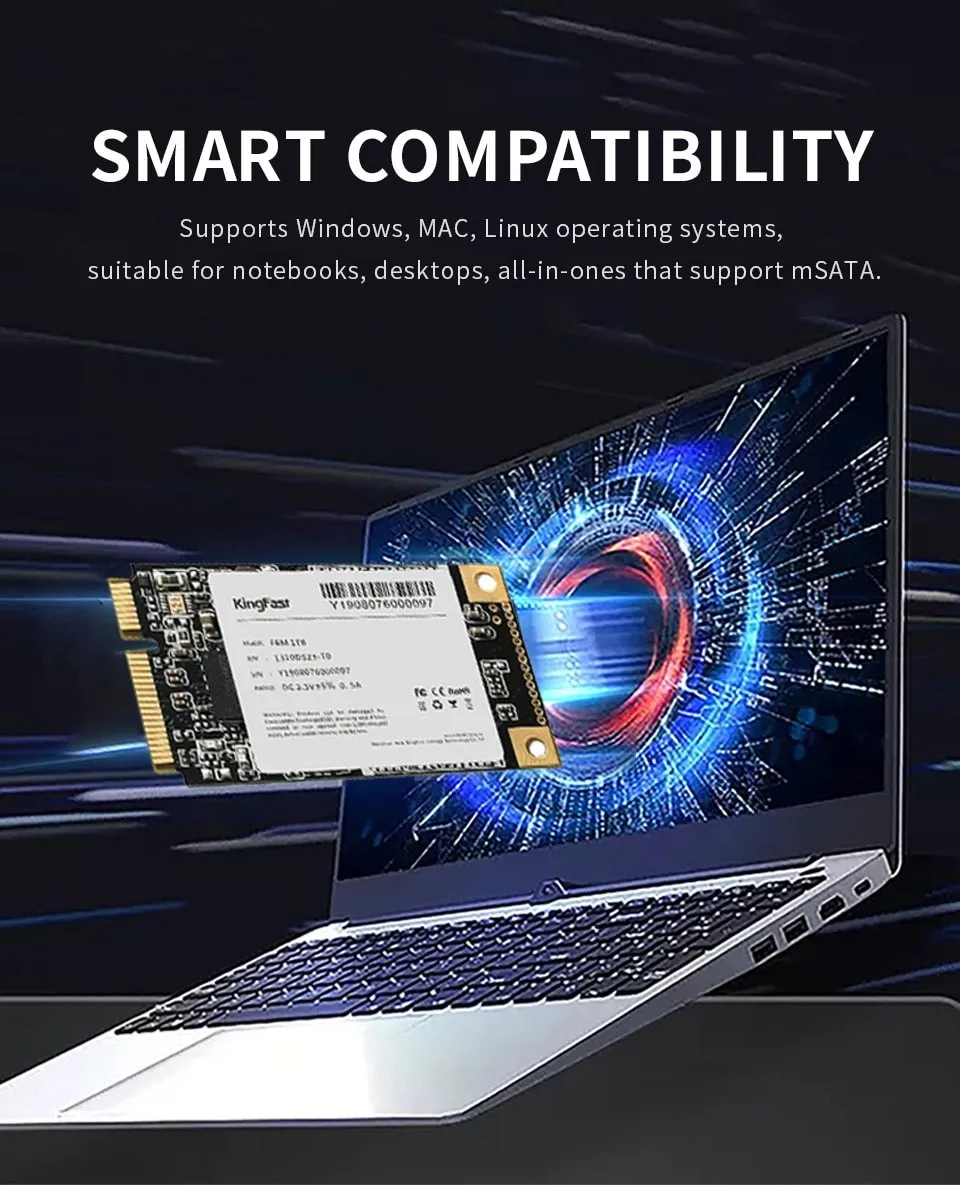

A: Our mSATA SSD supports motherboard with mSATA SATA Interface

Q: Why the capacity display from PC is smaller than the original capacity?
A: Actual usable space may be less than the total storage capacity listed due to Decimal measurement used to represent usable capacity of the SSD.
Actual capacity calculation: Total storage × 0.93
Factory default setting: 1GB=1000MB=1000000KB=1000000000B
Computer system setting: 1GB=1024MB=1048576KB=1073741824B
Example: 360GB SSD
Factory capacity: 360 × 1000 × 1000 × 1000=360000000000B
Transfer to PC display actual capacity:
360000000000B/1024/1024/1024=335G
Fast calculation: 360G × 0.93=335G

Q: The working temperature?
A: 0-70 celsius

Q: What's in the package?
A: SSD and the manual. (Without the screws)

Q: Why choose KingFast?
A: We are professional SSD manufacturer with 12 years of quality management experience. You can get the lowest price and the best service. And we provide 3 years warranty.

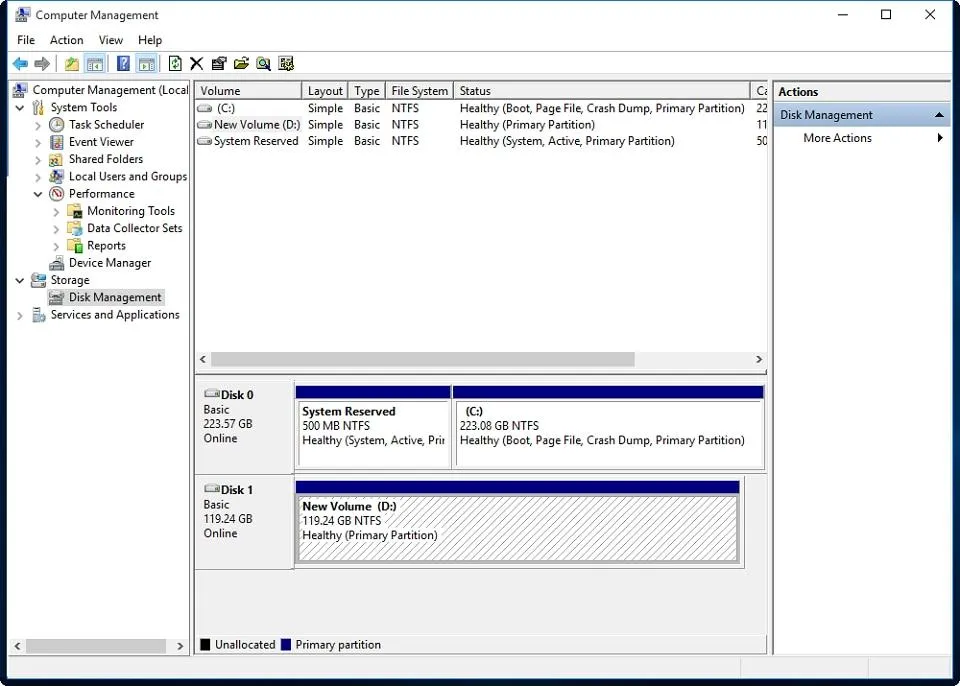

Before you use:Open Start. Search for "Create and format hard disk partitions" and click the top result to open the Disk Management console. Then you can find our SSD, please do the format and partition.
