Feature
- PCIe Gen3 8Gb/s Interface, up to 4 Lanes
- Compliant with NVMe Express Revision 1.4
- Support Host Memory Buffer
- Multiple Capacity:128GB/256GB/512GB is available
Description

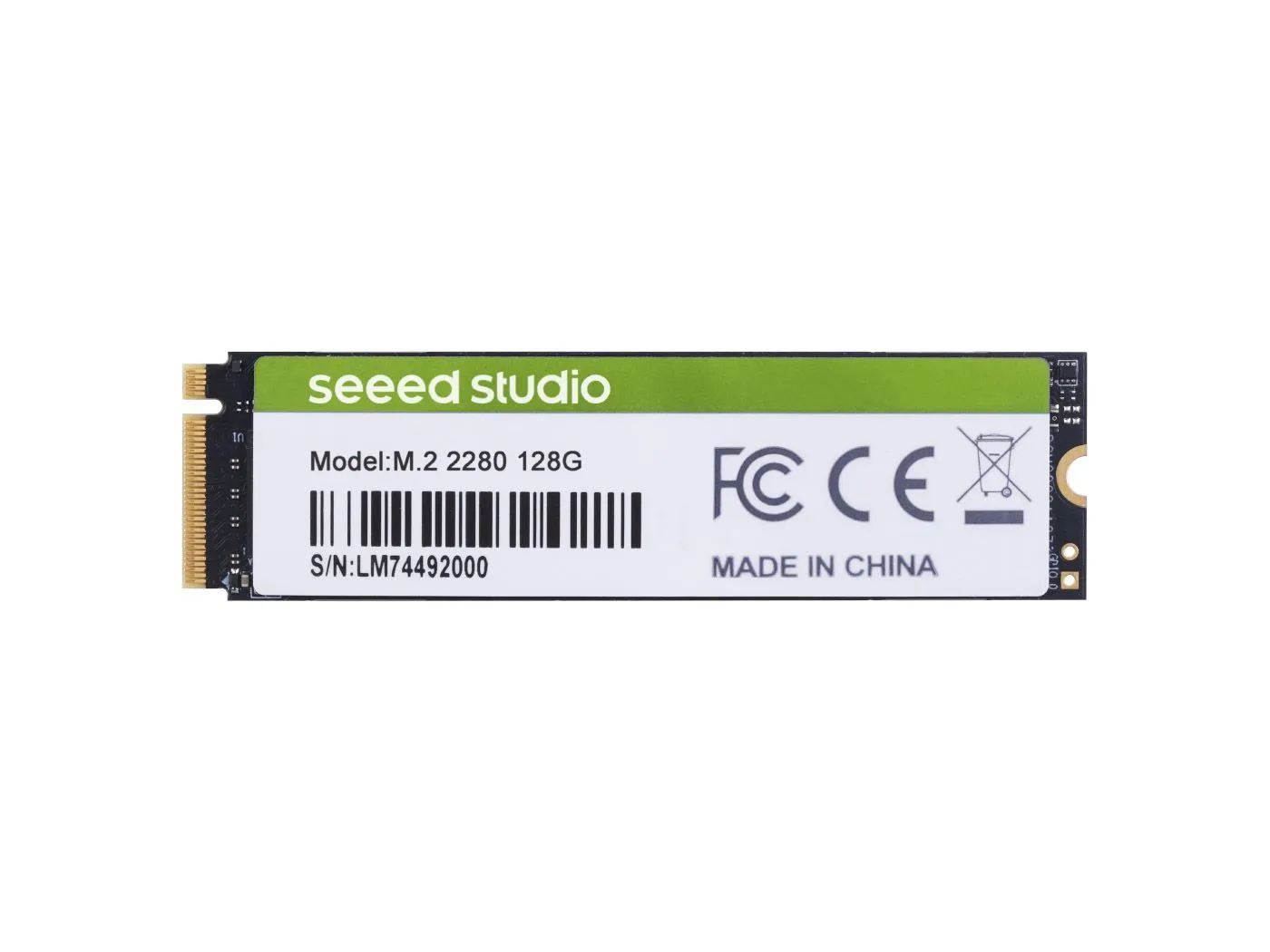

Here comes NVMe M.2 2280 Internal SSD with 128GB capacity , compatible with Desktops & Laptops that accept PCIe NVMe Gen 3 drives.
Technical Details
|
Capacity |
Height (mm) |
Width (mm) |
Length (mm) |
Weight (gram) |
|
128GB/256GB/512GB |
MAX 2.25 |
22.00±0.15 |
80.00±0.15 |
MAX 8g |
Capacity
|
Nominal Capacity |
128GB |
256GB |
512GB |
|
Unformatted Capacity |
119.24GB |
238.47GB |
476.94GB |
|
User-Addressable Sectors |
250069680 |
500118192 |
1000215216 |
|
Bytes per Sector |
512 Bytes |
||
NOTE：1 Megabyte (MB) = 1 Million bytes; 1 Gigabyte (GB) =1 Billion bytes 2 User Addressable Sectors in LBA mode is calculated by IDEMA rule.
Performance
|
Parameter |
Unit |
128GB |
256GB |
512GB |
|
Sequential Read (Max) |
MB/S |
1600 |
3300
|
3400 |
|
Sequential Write (Max) |
MB/S |
930 |
1800 |
2900 |
|
Random Read 4K (Max) |
IOPS |
69000 |
135000 |
210000 |
|
Random Write 4K (Max) |
IOPS |
150000 |
160000 |
160000 |
* Actual performance may vary depending on use conditions and environment
* Note
1. Performance measured using CrystalDiskMark 8.0.0
2. Write cache enabled
3.1MB/sec = 1,048,576 bytes/sec was used in sequential performance
-System: Intel Z370 Chipset, Intel Core , 8GB DDR4
-OS: Windows 10 x64 with HMB turn on.
Part List
|
128GB NVMe M.2 PCle Gen3x4 2280 Internal SSD |
x1 |
ECCN/HTS
| HSCODE | 8471701100 |
| UPC |
| FCC | 1 |
| CE | 1 |
